* Product representation may vary from image shown

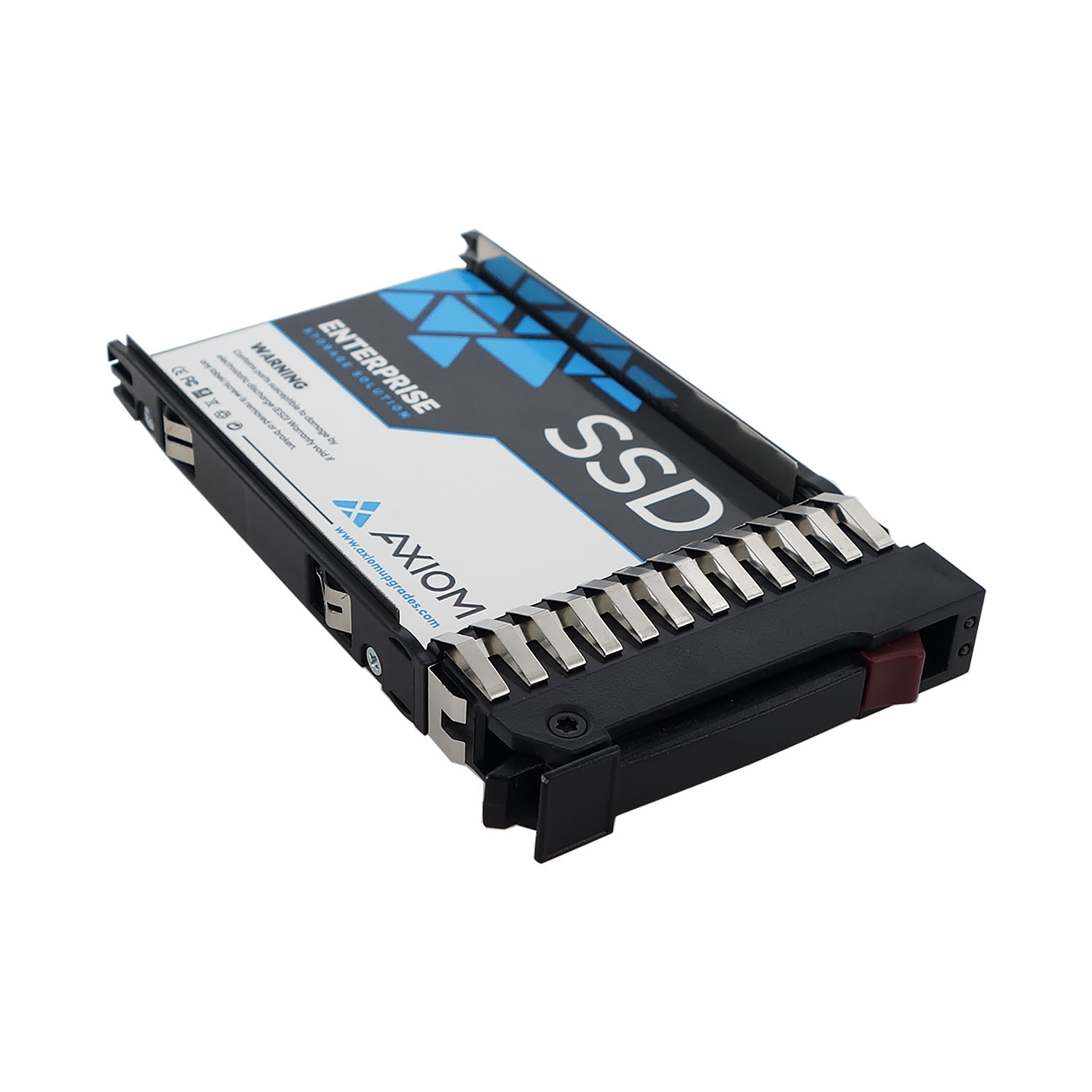

960GB Enterprise Pro EP400 2.5-inch Hot-Swap SATA SSD for HP

Part Number: SSDEP40HA960-AX

Category: 2.5" SATA 6GB/s EP400 Hot-Swap Enterprise Pro SSD

Description: Axiom 960GB Enterprise Pro EP400 2.5-inch Hot-Swap SATA SSD for HP

Comparable to OEM #: N/A

Features

The EP400 enterprise hot-swap solid state drive (SSD) delivers enhanced Write/Read IOPS performance for mission-critical applications. Utilizing 2-bit MLC NAND with Charge Trap Flash (CTF) technology combines high performance, unprecedented power efficiency, and superior data integrity for direct-attach storage solutions.

Data center storage density requirements continue to accelerate and the EP400 enables organizations to transition to a leaner infrastructure model reducing total cost of ownership (TCO).


Product Spotlight:
• Low total cost of ownership (TCO) and better data center efficiency
• Proven quality and reliability
• Optimized for data center applications
• 256-bit AES Encryption
• Enhanced enterprise endurance with 3.6 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 95K/28K
• Lifetime Endurance – Up to 12.03 Petabytes Written

Product Features:
• 2-bit MLC V-NAND
• Built for sustained performance with low I/O latency and strong I/O consistency
• Enhanced power-loss protection and power failure protection
• Temperature sensor and dynamic thermal monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection platform

Specialized for the following workloads:
• Low latency and high Quality of Service (QoS) applications and databases
• On-Line Transactional Process (OLTP)
• Data Warehousing
• Customer Relationship Management (CRM)
• Media editing and delivery
• OpenStack cloud computing platforms
• Virtualized environments (VDI)
• E-Commerce, micropayments

Specifications

Capacity: 960GB
Components: 128 layer V-NAND
Encryption: AES 256-bit
Interface: SATA
Transfer Rate Synchronous (Maximum): 6Gbps
Form Factor: 2.5–inch
RoHS Compliant

Bandwidth Performance:
- Sustained Sequential Read: Up to 560 MB/s
- Sustained Sequential Write: Up to 530 MB/s
Read and Write IOPS (Full LBA Range, IOMeter Queue Depth 32):
- Random 4KB Reads: Up to 97,000 IOPS
- Random 4KB Writes: Up to 60,000 IOPS

Endurance: 3 drive writes per day for 5 years
- 960GB: 5,256 TBW

Operating Temperature: 0° C to 70° C
Maximum altitude: 10,000 ft
Average Power Consumption: Active: Up to 3.7 W (TYP) - Idle: 1.4 W
Power Management: 5.0 V ± 5%
Reliability (MTBF): 2,000,000 Hours
Shock: 1,500 G/0.5 ms

Compatible Systems

HP-Compaq - Disk Enclosure D2700
HP-Compaq - Integrity BL870c i4
HP-Compaq - MSA 2050 Modular Smart Array
HP-Compaq - MSA 2052 Modular Smart Array
HP-Compaq - MSA 50 Modular Smart Array
HP-Compaq - MSA 70 Modular Smart Array
HP-Compaq - MSA P2000 G3 Modular Smart Array
HP-Compaq - ProLiant BL20p G4 Server Blade
HP-Compaq - ProLiant BL25p G2
HP-Compaq - ProLiant BL45p G2
HP-Compaq - ProLiant BL460c G5
HP-Compaq - ProLiant BL460c G6
HP-Compaq - ProLiant BL460c G7
HP-Compaq - ProLiant BL460c Server Blade
HP-Compaq - ProLiant BL465c G5
HP-Compaq - ProLiant BL465c G6
HP-Compaq - ProLiant BL465c G7
HP-Compaq - ProLiant BL480c Server Blade
HP-Compaq - ProLiant BL620c G7 (Xeon 7500)
HP-Compaq - ProLiant BL620c G7 (Xeon E7)
HP-Compaq - ProLiant BL680c G5
HP-Compaq - ProLiant BL680c G7
HP-Compaq - ProLiant BL685c
HP-Compaq - ProLiant BL685c G5
HP-Compaq - ProLiant BL685c G6
HP-Compaq - ProLiant BL685c G7
HP-Compaq - ProLiant DL120 G7
HP-Compaq - ProLiant DL160 G6
HP-Compaq - ProLiant DL165 G7
HP-Compaq - ProLiant DL180 G6
HP-Compaq - ProLiant DL320 G6
HP-Compaq - ProLiant DL360 G4p
HP-Compaq - ProLiant DL360 G5
HP-Compaq - ProLiant DL360 G6
HP-Compaq - ProLiant DL360 G7
HP-Compaq - ProLiant DL365
HP-Compaq - ProLiant DL365 G5
HP-Compaq - ProLiant DL370 G6
HP-Compaq - ProLiant DL380 G4
HP-Compaq - ProLiant DL380 G5
HP-Compaq - ProLiant DL380 G7
HP-Compaq - ProLiant DL385 G2
HP-Compaq - ProLiant DL385 G5
HP-Compaq - ProLiant DL385 G5p
HP-Compaq - ProLiant DL385 G6
HP-Compaq - ProLiant DL385 G7
HP-Compaq - ProLiant DL580 G4
HP-Compaq - ProLiant DL580 G5
HP-Compaq - ProLiant DL580 G7 (Xeon 7500)
HP-Compaq - ProLiant DL580 G7 (Xeon E7)
HP-Compaq - ProLiant DL585 G2
HP-Compaq - ProLiant DL585 G5
HP-Compaq - ProLiant DL585 G6
HP-Compaq - ProLiant DL585 G7
HP-Compaq - ProLiant DL785 G5
HP-Compaq - ProLiant DL980 G7 (Xeon 7500)
HP-Compaq - ProLiant DL980 G7 (Xeon E7)
HP-Compaq - ProLiant ML110 G7
HP-Compaq - ProLiant ML350 G5
HP-Compaq - ProLiant ML350 G6
HP-Compaq - ProLiant ML370 G5
HP-Compaq - ProLiant ML370 G6
HP-Compaq - ProLiant ML570 G3
HP-Compaq - ProLiant ML570 G4
HP-Compaq - ProLiant WS460c G6
HP-Compaq - ProLiant xw460c Blade Workstation
HP-Compaq - StorageWorks X1600 G2 NAS

Warranty

5 Year or TBW Limited Warranty
