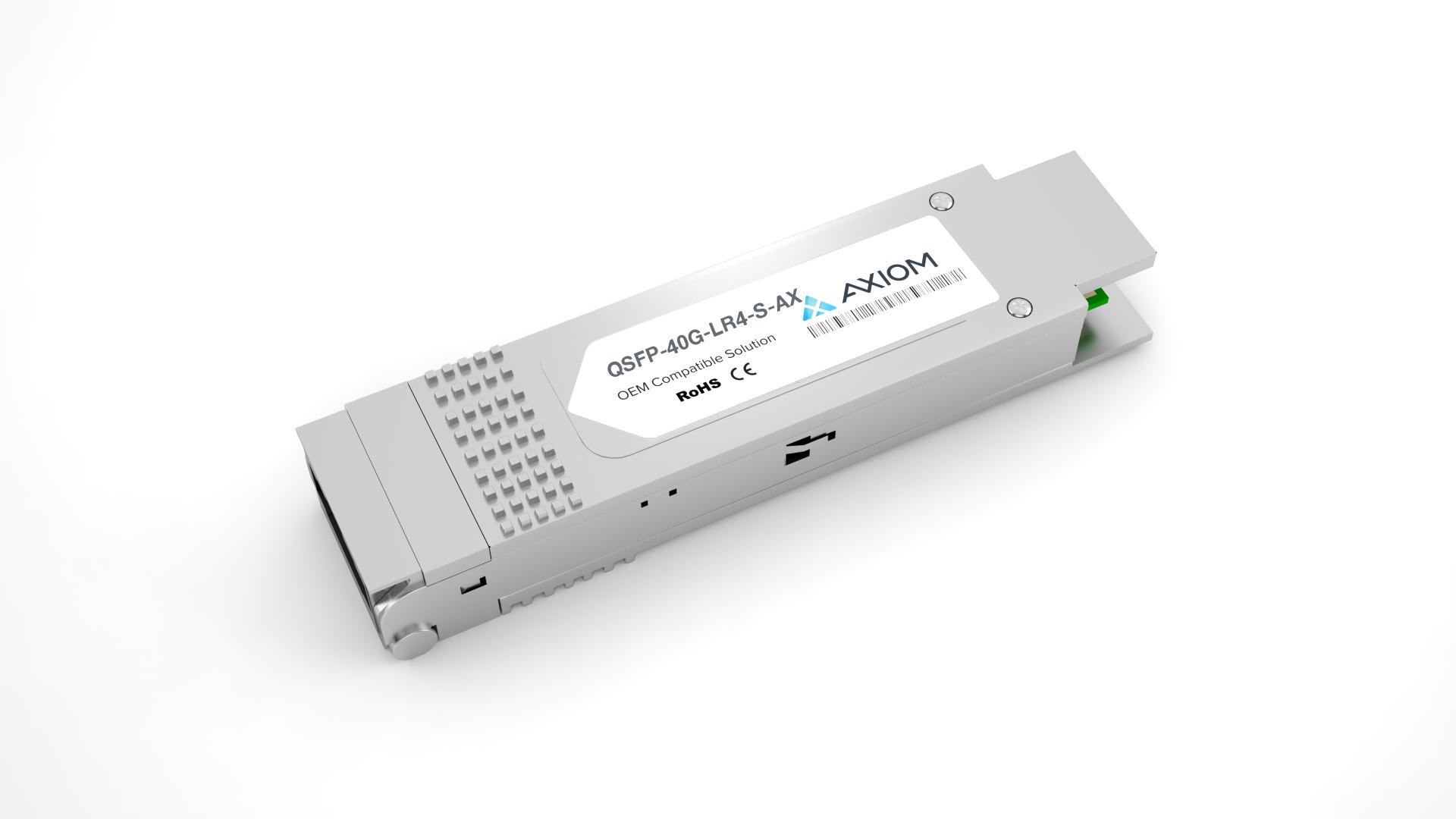

* Product representation may vary from image shown

40GBASE-LR4 QSFP+ Transceiver for Cisco - QSFP-40G-LR4-S

Part Number: QSFP-40G-LR4-S-AX

Category: 40G QSFP+ Transceiver

Description: Axiom 40GBASE-LR4 QSFP+ Transceiver for Cisco - QSFP-40G-LR4-S

Comparable to OEM #: QSFP-40G-LR4-S=

•   Validated in U.S. engineering labs
•   OEM-alternative lifecycle support available
•   Supports post-warranty infrastructure environments

Evaluate Lifecycle Extension Options Need Pricing? Request Maintenance Pricing

Features

Axiom QSFP+ Transceiver Modules are 100% compatible in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. Axiom compatible transceivers perform, fit and function identically when compared to “Original” Transceivers. Axiom brand transceivers also function with other brands within the same network.

• 100% Guaranteed Compatibility in all OEM applications
• Part number and unique product serialization; Eliminates any network communication conflicts and provides easy identification
• Fully compliant with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms

Original Equipment Manufacturer (OEM)® names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for comparative purposes only.

Specifications

*Mode:* Single-mode Fiber (SMF)
*Model:* QSFP-40G-LR4-S-AX (100% Cisco® Compatible)
*Data-rate:* 40GB Multi-rate Support (40G Ethernet and OTU3)
*Form-factor:* QSFP+
*Connector:* LC
*Wavelength:* Four 10Gbps CWDM wavelengths: 1271nm, 1291nm, 1311nm & 1331nm
*Distance:* 10km
*Additional:* DOM supported

*Compliant Standards*
QSFP+ MSA SFF-8436 Compliant
RoHS Compliant
IEEE 802.3ba

Compatible Systems

Cisco - 40Gb QSFP+ Uplink Module for Nexus 9300
Cisco - Catalyst 9200 Series 40G Network Module
Cisco - Catalyst 9300 Series
Cisco - Catalyst 9300L Series
Cisco - Catalyst C9500-24Y4C
Cisco - Nexus 31108PC-V
Cisco - Nexus 31108TC-V
Cisco - Nexus 31128PQ
Cisco - Nexus 3132Q
Cisco - Nexus 3132Q-V
Cisco - Nexus 3132Q-XL
Cisco - Nexus 3172PQ
Cisco - Nexus 3172PQ-XL
Cisco - Nexus 3172TQ
Cisco - Nexus 3172TQ-XL
Cisco - Nexus 56128P
Cisco - Nexus 6001P
Cisco - Nexus 6001T
Cisco - Nexus 6004EF
Cisco - Nexus 7000 M2-Series 6-Port 40Gb Ethernet with XL Option
Cisco - Nexus 7700 M3-Series 24-Port 40Gb Ethernet
Cisco - Nexus C36180YC-R
Cisco - Nexus N9K-C92160YC-X
Cisco - Nexus N9K-C92300YC
Cisco - Nexus N9K-C92304QC
Cisco - Nexus N9K-C9236C
Cisco - Nexus N9K-C9272Q
Cisco - Nexus N9K-C93108TC-EX
Cisco - Nexus N9K-C93108TC-FX
Cisco - Nexus N9K-C93120TX
Cisco - Nexus N9K-C93180YC-EX
Cisco - Nexus N9K-C93180YC-FX
Cisco - Nexus N9K-C93180YC-FX3
Cisco - Nexus N9K-C93240YC-FX2
Cisco - Nexus N9K-C9332PQ
Cisco - Nexus N9K-C9336C-FX2
Cisco - Nexus N9K-C9336PQ
Cisco - Nexus N9K-C9348GC-FXP
Cisco - Nexus N9K-C9372PX
Cisco - Nexus N9K-C9372PX-E
Cisco - Nexus N9K-C9372TX
Cisco - Nexus N9K-C9372TX-E
Cisco - Nexus N9K-X9432C-S
Cisco - Nexus N9K-X9432PQ
Cisco - Nexus N9K-X9464PX
Cisco - Nexus N9K-X9464TX
Cisco - Nexus N9K-X9464TX2
Cisco - Nexus N9K-X9536PQ
Cisco - Nexus N9K-X9564PX
Cisco - Nexus N9K-X9564TX
Cisco - Nexus N9K-X9636C-R
Cisco - Nexus N9K-X9636PQ
Cisco - Nexus N9K-X9636Q-R
Cisco - Nexus N9K-X97160YC-EX
Cisco - Nexus N9K-X9732C-EX
Cisco - Nexus N9K-X9736C-FX
Cisco - Nexus N9K-X9736PQ

Warranty

Limited Lifetime Warranty
