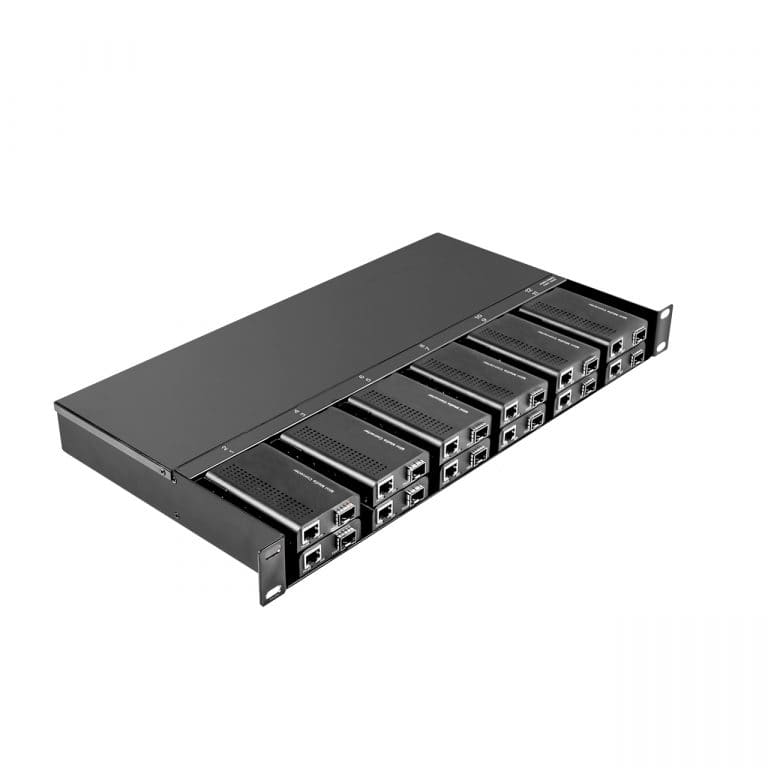

Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v

Part Number: MCR0-CH-1U12-AX

Category: Media Converter Mounting Brackets & Chassis

Description: Axiom Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v

Comparable to OEM #: N/A

Features

Axiom provides a variety of mounting options for our media converter lines to meet a wide range of applications from 3RU 16 Slot Rack Mount Chassis to Single Wall Mount brackets for our Mini-Media Converter line. These chassis provide a convenient and scalable way to deploy fiber optic converters in a central location, allowing for easy management, expansion and increased flexibility.

Add to Quote
Specifications Warranty

Specifications

The Axiom 1U Rack Mount 12 Slot Media Converter Chassis is specifically designed to accommodate our MC01, MC03, MC08, MC09, MC10 & MC12 Series Mini-Media Converter line up. The 1U rack mount system is designed for space saving by providing power with a single, internal, universal power supply that eliminates the need for the multiple power connections which is usually associated with multiple converter installations. It provides hot-swap capability so individual units can be replaced as your network needs change.

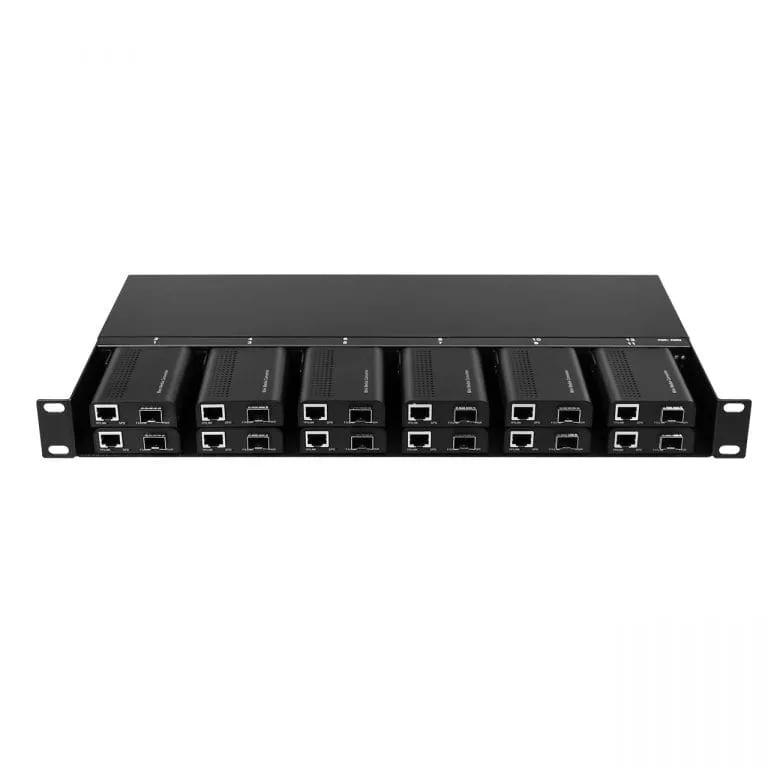

• Media Converter Capacity: 12-slots in front for silde-in-modules
• LED Indicators: Power, Fan A, Fan B (On: operating; Off: device or fan fail)

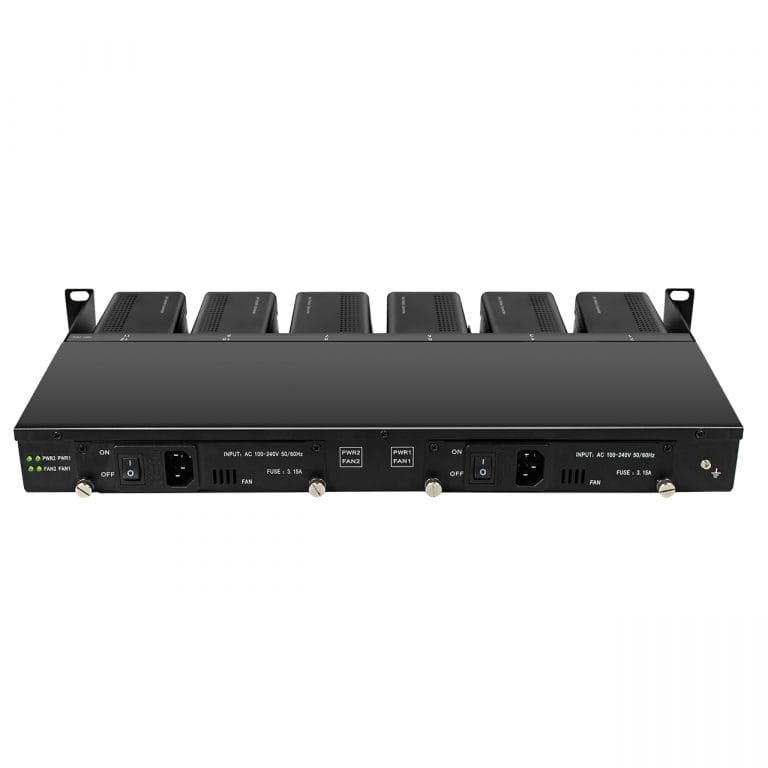

• Power: Universal input 100~240V, 50/60Hz, 3.0~1.5A Redundant Power Supply
• Temperature Rating: 0~50 degrees C (operating), -20~70 degrees C (storage)
• Humidity: 0~90% (non-condensing)
• Enclosure: Metal
• Dimensions: 440mm×245mm×45mm
• Weight: 3.2kg
• Compliance: FCC Class A, CE-mark

Warranty

3 Year Limited Warranty
