Part Number: MCP11-M3S2-AX

Category: 100M Fast Ethernet (POE) Media Converter

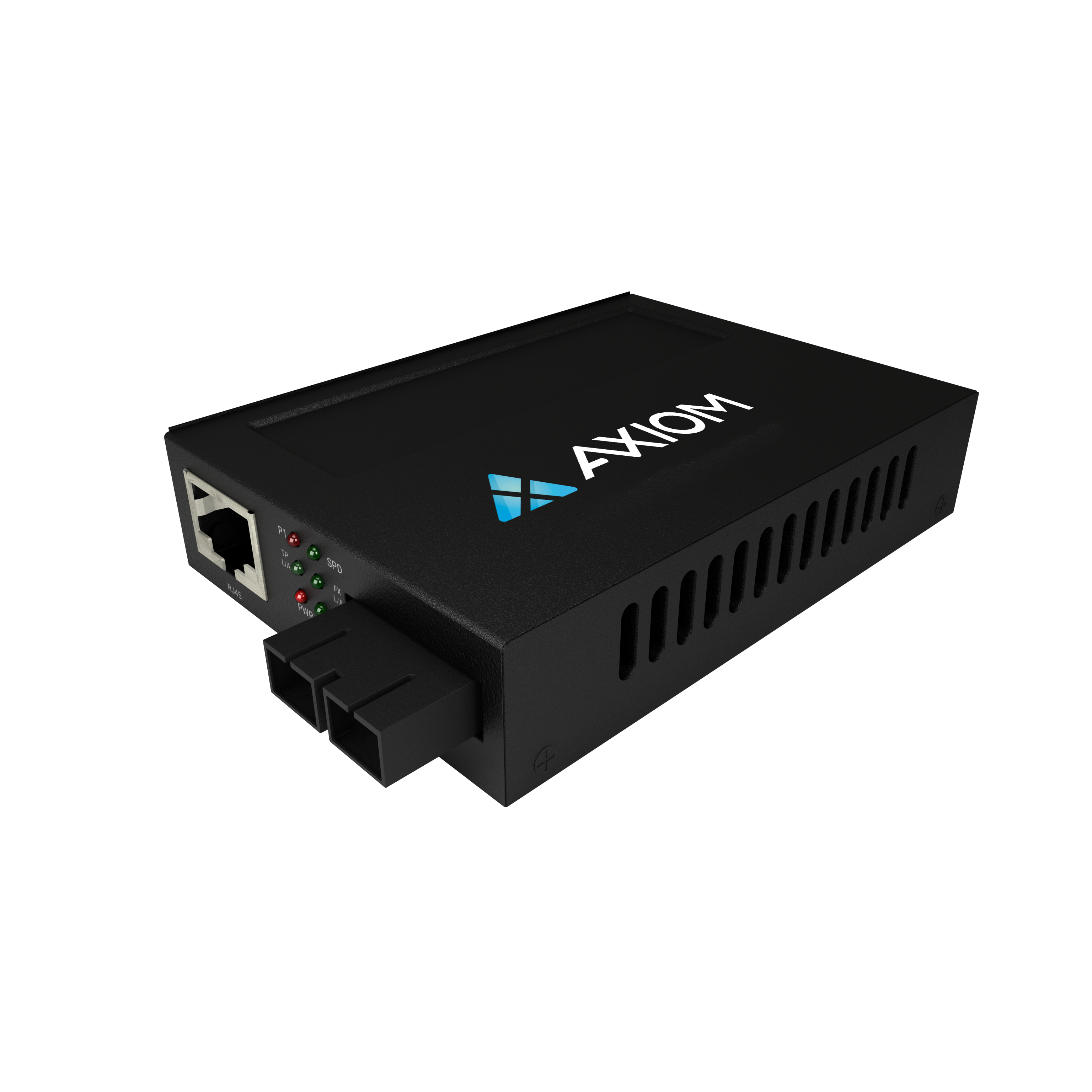

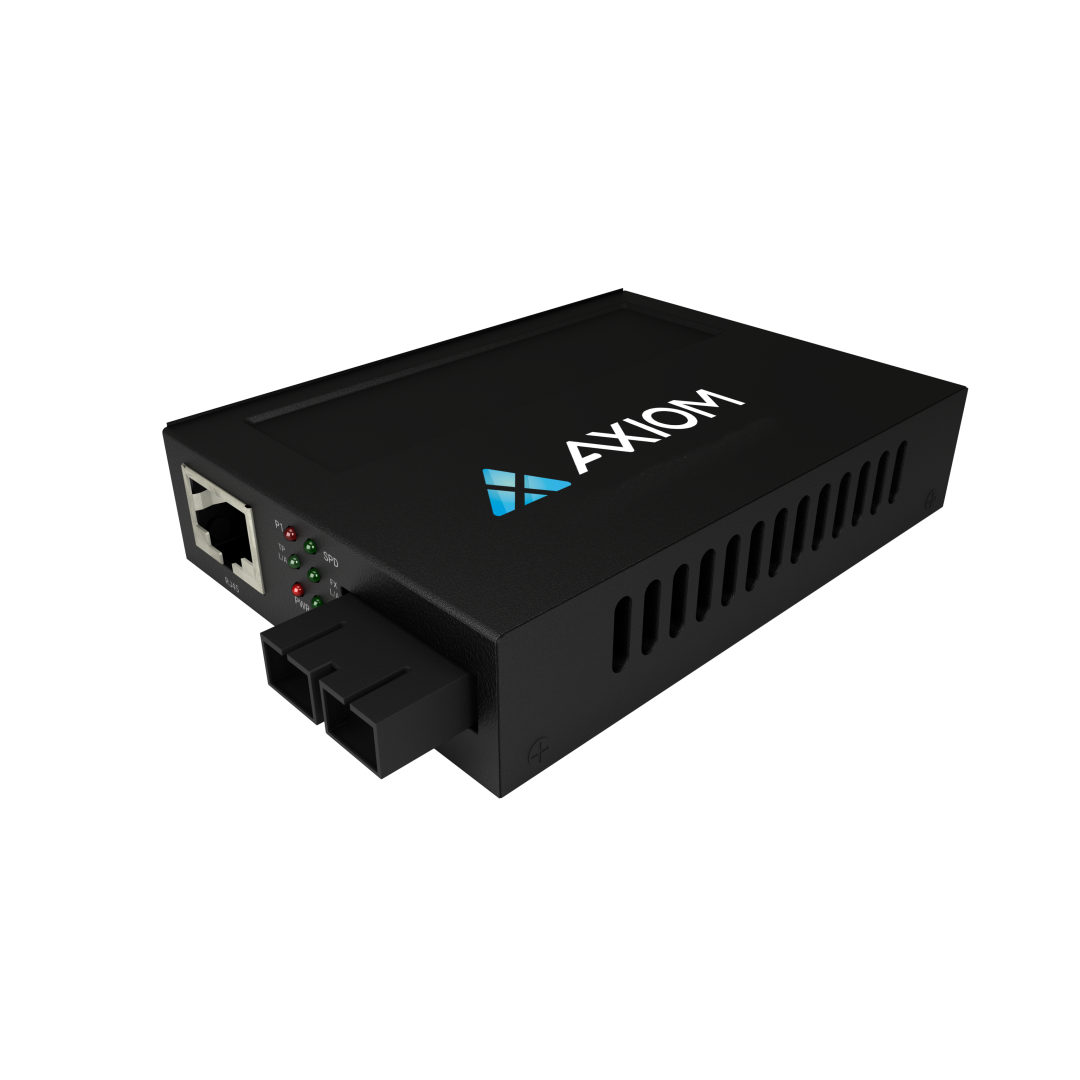

Description: IND. 100Mbs POE RJ45 to 100BASE-FX Fiber Media Converter - MMF, SC, 2km, 1310nm

Comparable to OEM #: N/A

•   Validated in U.S. engineering labs
•   OEM-alternative lifecycle support available
•   Supports post-warranty infrastructure environments

Evaluate Lifecycle Extension Options Need Pricing? Request Maintenance Pricing

Features

The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:
• 10/100Base-TX UTP to 100Base-FX fiber media conversion
• IEEE802.3af PoE PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support
