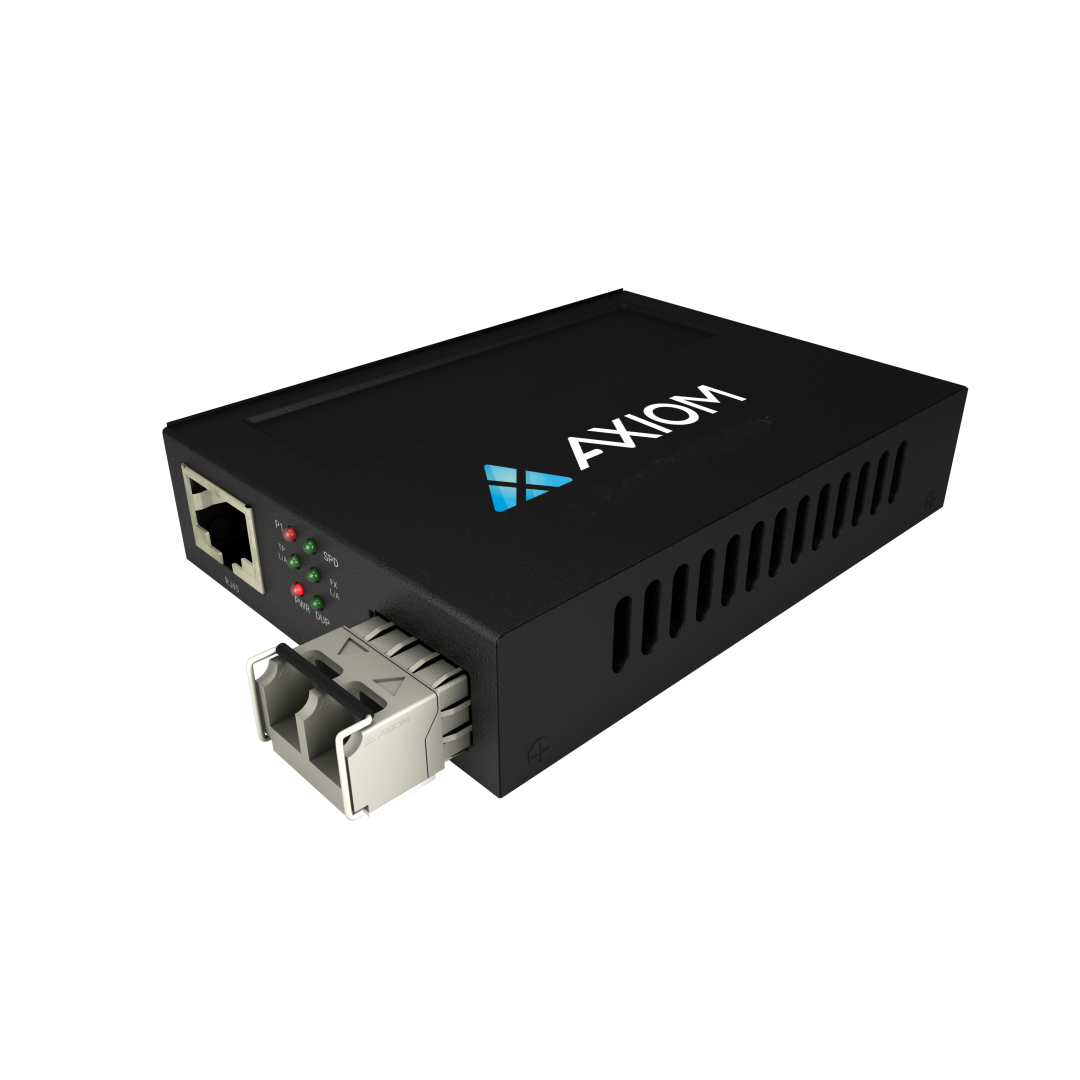

* Product representation may vary from image shown

TAA 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, LC, 550m, 850nm

Part Number: AXG101376

Category: 1G Ethernet (POE+) Media Converter

Description: TAA 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, LC, 550m, 850nm

Features

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:
• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
• IEEE802.3at PoE+ PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support

Add to Quote
Specifications Warranty

Specifications

Key features
• TP port Support IEEE 802.3at PoE+
• TP port can support Half/Full-Duplex, Auto MDI/MDI-X and Auto Negotiation
• Support Jumbo Fram 16K bytes
• Support Link Fault Pass Through

Port Information: 10/100/1000BASE-T to 1000BASE-SX Fiber
Transmission Distance:
Twisted Pair:
• 100m (Standard CAT5e/CAT6 Cable)
SFP Connection Distance/Wavelength:
• 1000BASE-SX: 550m/850nm MMF


System Performnance
• Packet Buffer - 384KB
• Mac Address Table size - 1k
• Jumbo Frame - 16KB

POE
• Number of PSE port - 1
• PoE Power Type - Midspan, Mode A: 1/2(+). 3/6(-)

Mechanical
• Power Input - 44-57Vdc (DC jack F2.5mm)
• System power consumption - 4w
• LED - Power, PoE, 10/100mbps Link/Act, 1Gbps Link/Act, Fiber Link/Act
• Operating Temperature - 0~50°C
• Storage Temperature - -20~80°C
• Operating Humidity - Max. 90% (non-Condensing)

DIP switch
• ON: Link Fault Pass Through Enabled
• OFF: Link Fault Pass Through Disable

Standards
• IEEE 802.3 - 10BaseT
• IEEE 802.3u - 100BaseTX
• IEEE 802.3ab - 1000BaseT
• IEEE 802.3z - 1000Base SX/LX

Warranty

3 Year Limited Warranty
