960GB Enterprise Pro EP650 2.5-inch Hot-Swap SAS SSD for Cisco

Part Number: SSDEP65M5960-AX

Category: 2.5" SAS 24GB/s EP650 Hot-Swap Enterprise Pro SSD

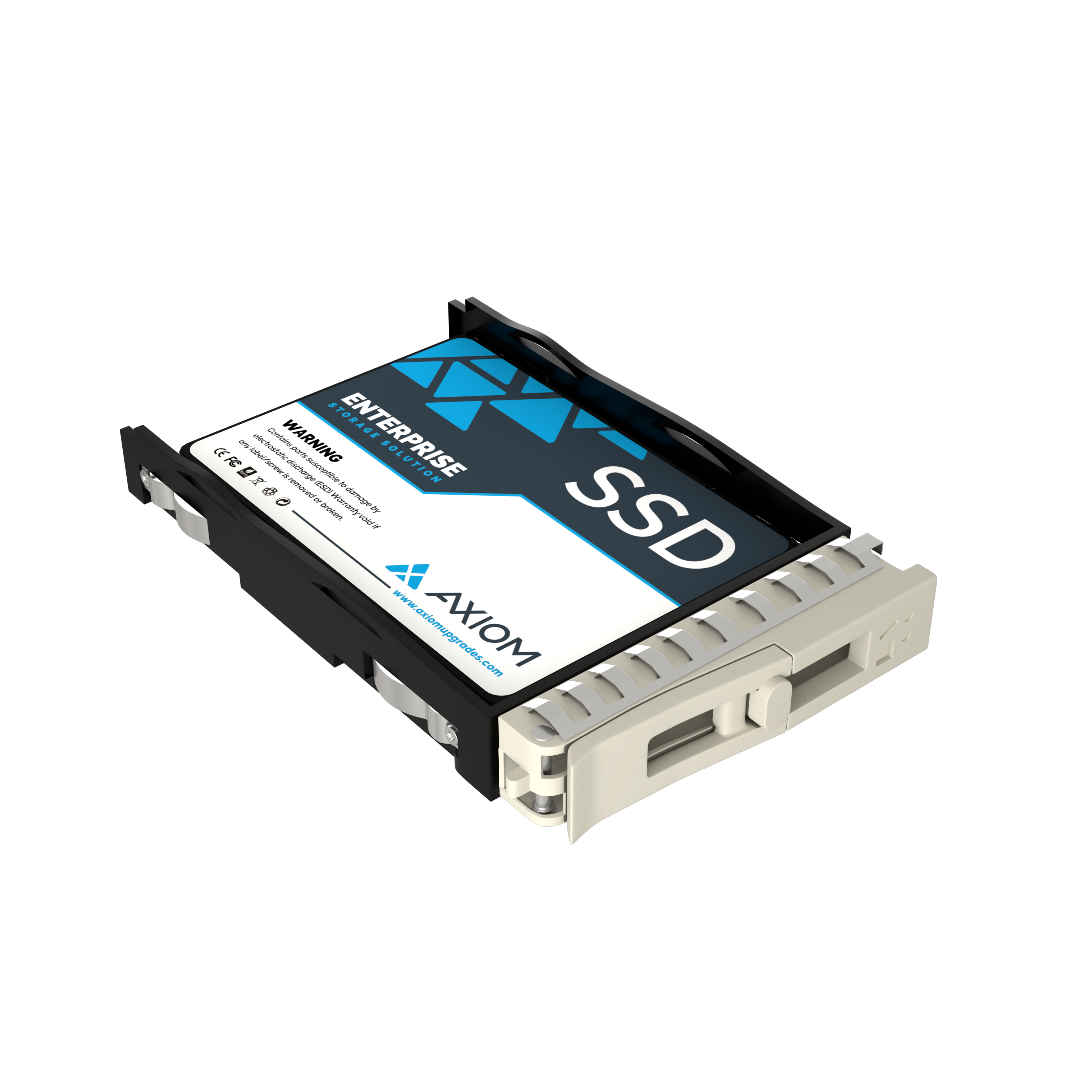

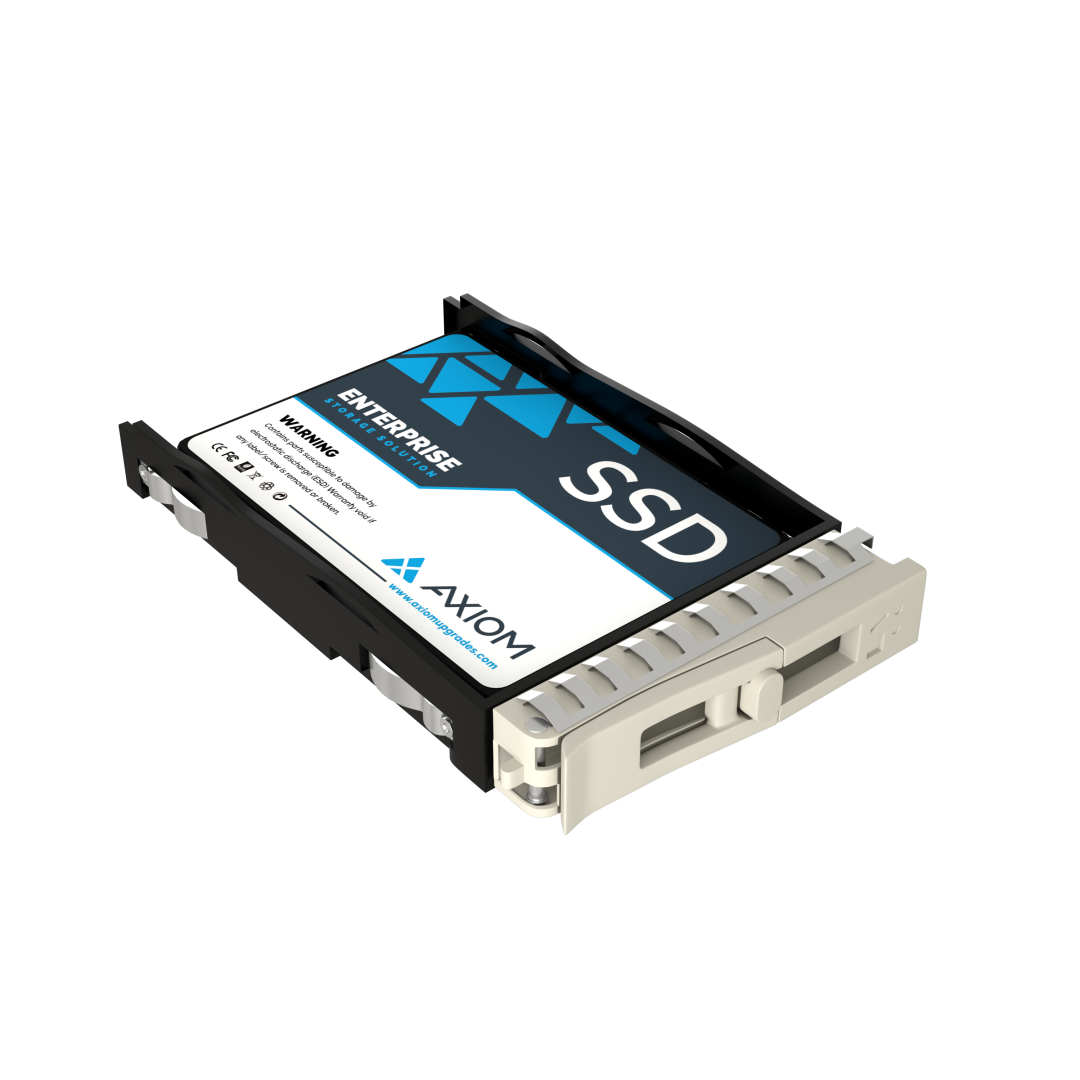

Description: Axiom 960GB Enterprise Pro EP650 2.5-inch Hot-Swap SAS SSD for Cisco

Comparable to OEM #: N/A

Features

Axiom hot-swappable 24Gb/s SAS (Serial Attached SCSI) SSDs are tailored for enterprise storage performance. As a high-performance option with dual-port capability in the Axiom Enterprise SSD lineup, Axiom SAS drives deliver up to 4,200/1,200 Mb/s sequential read/write speeds and are designed to handle high-traffic usage with lower latency.

SAS SSDs outclass both HDDs and SATA (Serial ATA) SSDs in multiple facets such as performance, reliability and scalability. These advantages make them well-suited to handle the storage demands for common applications in data center or virtualization usage. Enterprises seeking to bolster storage performance should look to Axiom SAS drives to power their data centers.

• Full-duplex data transmission with dual-port design
• 24 Gb/s bandwidth and superior IOPS
• 960 GB to 7.68 TB storage capacities in a compact 2.5” form factor
• Higher MTBF and built-in advanced ECC
• Includes OEM drive caddies for easier installation

Specifications

Capacity: 960GB
Components: 128-layer V-NAND TLC
Encryption: TCG Enterprise
Interface: SAS
Transfer Rate Synchronous (Maximum): 24Gbps
Form Factor: 2.5–inch
RoHS Compliant

Bandwidth Performance:
- Sustained Sequential Read: Up to 4200 MB/s
- Sustained Sequential Write: Up to 1200 MB/s
Read and Write IOPS (Full LBA Range, IOMeter Queue Depth 32):
- Random 4KB Reads: Up to 600,000 IOPS
- Random 4KB Writes: Up to 55,000 IOPS

Endurance: 1 drive writes per day for 5 years
- 960GB: 1,752 TBW

Operating Temperature: 0° C to 70° C
Maximum altitude: 10,000 ft
Average Power Consumption: Active: Up to 12.5 W (TYP) - Idle: 5.5 W
Power Management: 5.0 V ± 5%
Reliability (MTBF): 2,000,000 Hours
Shock: 1,500 G/0.5 ms

Warranty

5 Year or TBW Limited Warranty
