* Product representation may vary from image shown

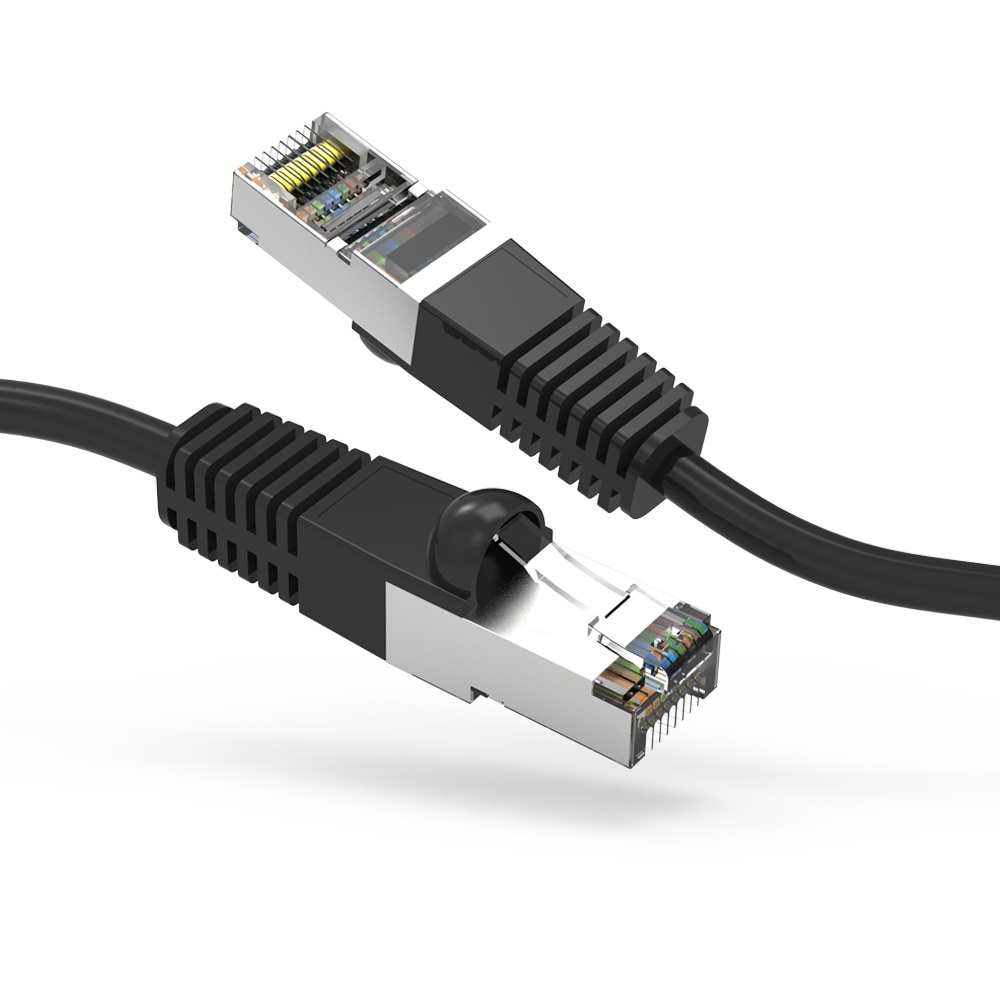

15FT CAT6 550mhz S/FTP Shielded Patch Cable Molded Boot (Black)

Part Number: C6MBSFTPK15-AX

Category: CAT6 Shielded Patch Cables Molded Boots

Description: Axiom 15FT CAT6 550mhz S/FTP Shielded Patch Cable Molded Boot (Black)

Comparable to OEM #: N/A

Features

Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you’re upgrading components or installing a brand new network, you’ll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.

Description

Axiom's Category 6 shielded cables are made of (4) twisted 26AWG pure copper wire pairs. Each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 6 shielded cables are offered in a variety of lengths from 6 inch to 100 feet and are available in 9 different colors

• Conductor: 4-pair (S/FTP) 26 AWG stranded copper
• Provides EMI/RFI shielding in Ethernet networks
• Foil shield: Aluminum foil (100% coverage)
• Braided shield: Copper braid (40% coverage)
• Connector: 50 micron gold-plated RJ45
• Wiring: T568B standard
• Jacket: PVC
• Standard: Category 6 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
• Molded Rubber Boots with Strain Relief
• Rohs Compliant
• 550mhz
• Jacket Diameter: 6.2 +/- 0.20mm
• Min Avg. jacket Thickness: 0.58mm
• Backward Compatible with Cat 5 & Cat 5E Networks
• Available in all lengths from 1ft-100ft
• Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow

Warranty

Limited Lifetime Warranty
