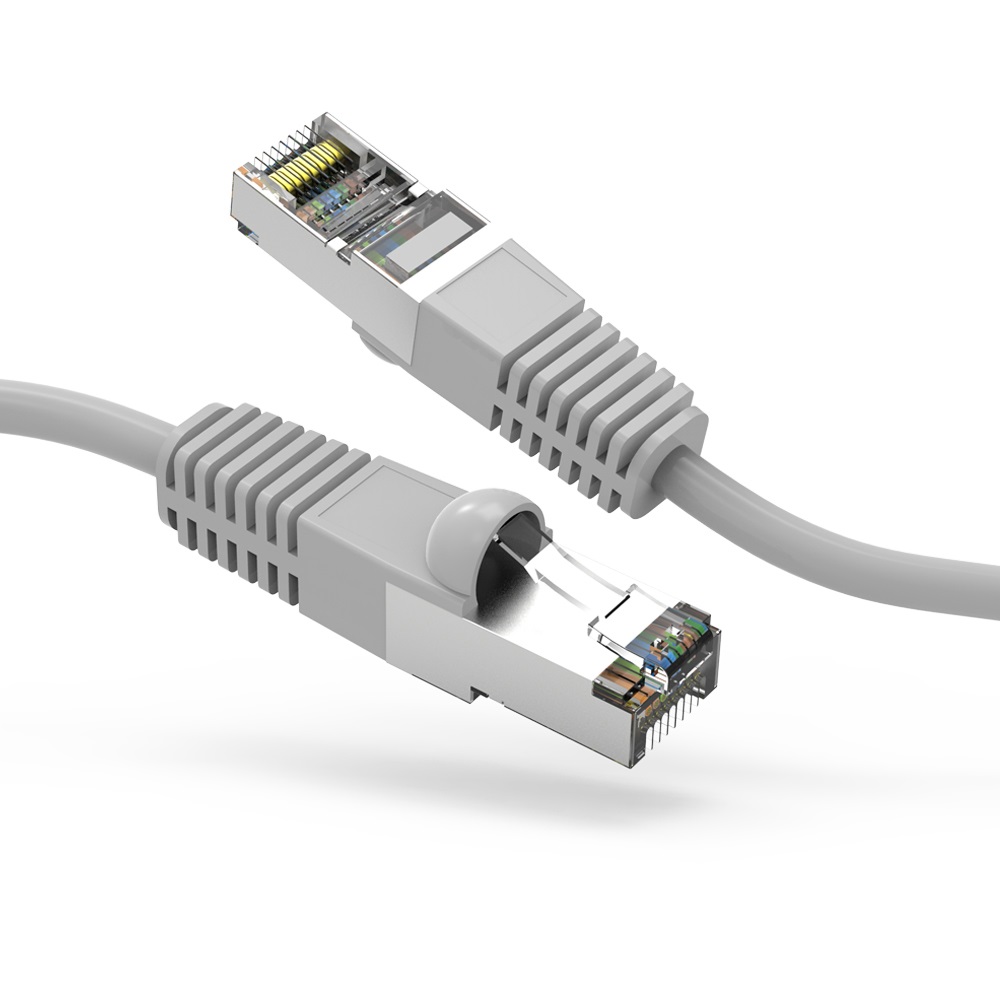

50FT CAT6A Snagless Shielded (STP) Patch Cable - Gray

Part Number: C6AMBSFTPG50-AX

Category: CAT6A Snagless Shielded (STP) Patch Cables

Description: Axiom 50FT CAT6A Snagless Shielded (STP) Patch Cable - Gray

Comparable to OEM #: N/A

Features

Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you’re upgrading components or installing a brand new network, you’ll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.

Add to Quote
Description Warranty

Description

High quality Category 6A (CAT6A) shielded patch cables are the solution to your data, voice and video distribution needs. The S/UTP Shielding is designed to protect a high speed 10 Gigabit network connection from external noise as well as electromagnetic interference. It will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). With speeds of up to 500MHz you can connect to your 10GBASE-T LAN/WAN segments and networking gear at maximum speed. Also, with its superior connector you get a cable that is built for speed and endurance. Axiom Cat6A cables are made of 100% bare copper wire, as opposed to copper clad aluminum (CCA) wire, making them fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in Cat6A communications cables.

• Conductor: 4-pair 26 AWG stranded copper
• S/UTP Shielding: Foil shield: Aluminum foil (100% coverage), Braided shield: Copper braid (40% coverage)
• Connector: 50 micron gold-plated RJ45
• Supports 10GBASE-T
• Jacket: PVC
• Standard: Category 6A IEEE 802.an; TIA 568-C.2; UL®, ETL Tested
• Molded Rubber Boots with Strain Relief
• RoHS Compliant
• Tested up to 650MHz
• Jacket Diameter: 6.9 +/- 0.15mm
• Min Avg. jacket Thickness: 0.58mm
• Backward Compatible with Cat6, Cat5 & Cat5E Networks
• Available in all lengths from 1ft-100ft
• Colors: B= Blue, G=Gray

Warranty

Limited Lifetime Warranty
