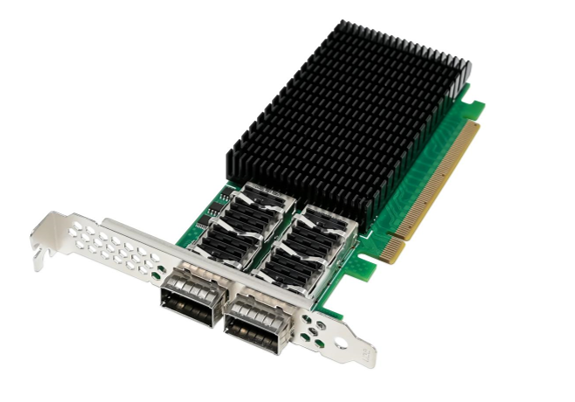

* Product representation may vary from image shown

100Gbs Dual Port QSFP28 PCIe 3.0 x16 NIC Card - MCX456A-ECAT-AX

Part Number: MCX456A-ECAT-AX

Category: 100G PCIe 3.0 x16 Fiber Network Adapter

Description: Axiom 100Gbs Dual Port QSFP28 PCIe 3.0 x16 NIC Card - MCX456A-ECAT-AX

Comparable to OEM #: MCX456A-ECAT

Features

The Axiom QSFP28 PCIe 3.0 x16 100Gbs intelligent network card is designed for Servers and high-end Data Center applications. They provide simple integration into any PCI Express x16 to provide 100 Gigabit Network connectivity. Based on Xilinx Ultrascale+16nm VU3P chip solution, it offers low-latency network processing capability by utilizing the built in auxiliary CPU to perform network functions which results in reduced CPU usage and reduced power consumption in the host system.

Key Features
• P4-enabled with P4 compiler
• P4 featured programmable match-action policies
• Open vSwitch datapath offload
• SR-IOV
• DPDK, zero-copy
• SDN ready as well as supporting legacy network management systems
• High throughput monitoring & data export
• Multi purpose and adaptive fragile service offload & delivery
• Highly Programmable platform in hardware and software
• Includes Full Height and Half Height Mounting Brackets

Add to Quote
Specifications Warranty

Specifications

Axiom PCIe 3.0 100Gbs network adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

Specifications
• PCI-Express host interface specification v3.0 x16 compliant with 2.0 and 1.1 compatible
• 2.5Gbps,5Gbps, or 8Gbps link rate X16
• Auto-negotiates to x16,x8,x4,x2 or x1
• Support for MSI/MSI-X mechanisms
• Support 100GbE/56GbE/50GbE/40GbE/25GbE/10GbE/1GbE transmission data rates
• Support IEEE802.3bj,802.3bm, IEEE802.3ba, IEEE802.3ae, IEEE802.3az IEEE802.3ap, IEEE802.3ad network protocols
• IEEE802.1Q,802.1P VLAN tags and priority
• IEEE802.1Qau(QCN)-congestion Notification
• Support IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588v2
• Jumbo frames support up to 9.6KB
• Mellanox PeerDirect RDMA communication acceleration
• Advanced memory mapping support, allowing user mode registration and remapping of memory
• RDMA over Converged Ethernet (RoCE)
• TCP/UDP/IP stateless offload
• LSO, LRO, checksum offload
• Hardware offload of encapsulation and decapsulation of NVGRE overlay network
• SR-IOV up to 256 virtual functions
• SR-IOV up to 16 physical functions per port
• Support Remote boot over Ethernet, Remote boot over Iscsi, PXE and UEFI
• Mellanox ConnectX-4 controller

Technical Features
Compliant Standards
• 100GbE / 56GbE / 50GbE / 40GbE / 25GbE / 10GbE / 1GbE
• IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet
• IEEE 802.3by, Ethernet Consortium25, 50 Gigabit Ethernet, supporting all FEC modes
• IEEE 802.3ba 40 Gigabit Ethernet
• IEEE 802.3by 25 Gigabit Ethernet
• IEEE 802.3ae 10 Gigabit Ethernet
• IEEE 802.3ap based auto-negotiation and KR startup
• Proprietary Ethernet protocols (20/40GBASE-R2, 50GBASE-R4)
• IEEE 802.3ad, 802.1AX Link Aggregation
• IEEE 802.1Q, 802.1P VLAN tags and priority
• IEEE 802.1Qau (QCN)
• Congestion Notification
• IEEE 802.1Qaz (ETS)
• IEEE 802.1Qbb (PFC)
• IEEE 802.1Qbg
• IEEE 1588v2
• Jumbo frame support (9.6KB)

Warranty

3 Year Limited Warranty
