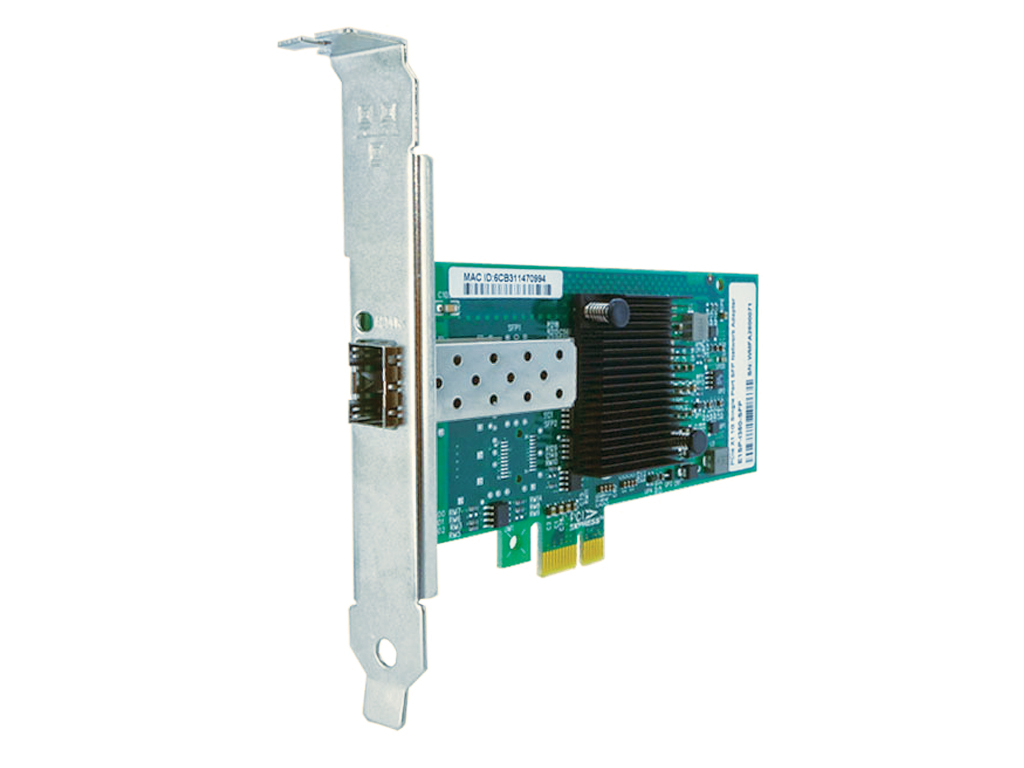

* Product representation may vary from image shown

100Mbs Single Port LC 2km MMF PCIe x1 NIC Card - AXG104043 - TAA Compliant

Part Number: AXG104043

Category: 100M PCIe 2.0 x1 Fiber Network Adapter

Description: 100Mbs Single Port LC 2km MMF PCIe x1 NIC Card - AXG104043 - TAA Compliant

Features

Axiom’s family of network server adapters provide a wide-range of solutions to boost network performance and improve IT flexibility. Available band-widths range from 100Mbs to 100Gbs on interfaces ranging from 32-Bit PCI to PCIe 4.0 x16. Each adapter provides standard connector options from single port, dual port, quad ports in copper and/or fiber-based connections.
Axiom network interface cards accelerate applications with enterprise-proven connectivity. These solutions are available for designated branded OEM systems. Each Axiom network adapter is 100-percent tested to ensure long-term reliability and performance in high transaction and mission-critical applications.

• Optimized for virtualization.
• Maximizes I/O consolidation with high performance ports.
• Leverages and protects existing IT investments.
• Delivers cost reductions in operating expense and total cost expense.
• Provide connectivity and scalability required for enterprise environments.
• Deliver enterprise-class connectivity.
• Supports both data and storage I/O with an adapter that can integrate with your existing Fibre Channel and Ethernet networks, extending the value of your network investments.
• Achieve convergence - Run concurrent TCP/IP and storage (iSCSI or Fibre Channel) traffic over a single link.
• Includes Full Height and Half Height Mounting Brackets

Specifications

Axiom 100Mbs network adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

*Part Number:* AXG104043
*OEM Compatibility:* Axiom®
*Bus Type:* PCIe v1.1 (2.5 GT/s)
*Bus Width:* x1
*Chipset:* Intel® 82574
*Data Protocol:* Fast Ethernet
*Data Rate:* 100Mbs
*External Connector:* LC
*Media Type:* MMF
*Wavelength:* 1310nm
*Distance:* 2km
*Number of Ports:* 1
*OS Compatibility:* Windows Server 2016 R2/2012 R2/2012/2008 R2, Windows 7 x64/8/8.1/10, Linux Stable Kernel version 2.6.32/3.x/4.x or later, VMvare ESX/ESXi 5.5/6.x or later
*Dimensions (H x W x D):* 110mm x 12mm x 68mm
*Weight:* 0.1lb

Warranty

3 Year Limited Warranty
