* Product representation may vary from image shown

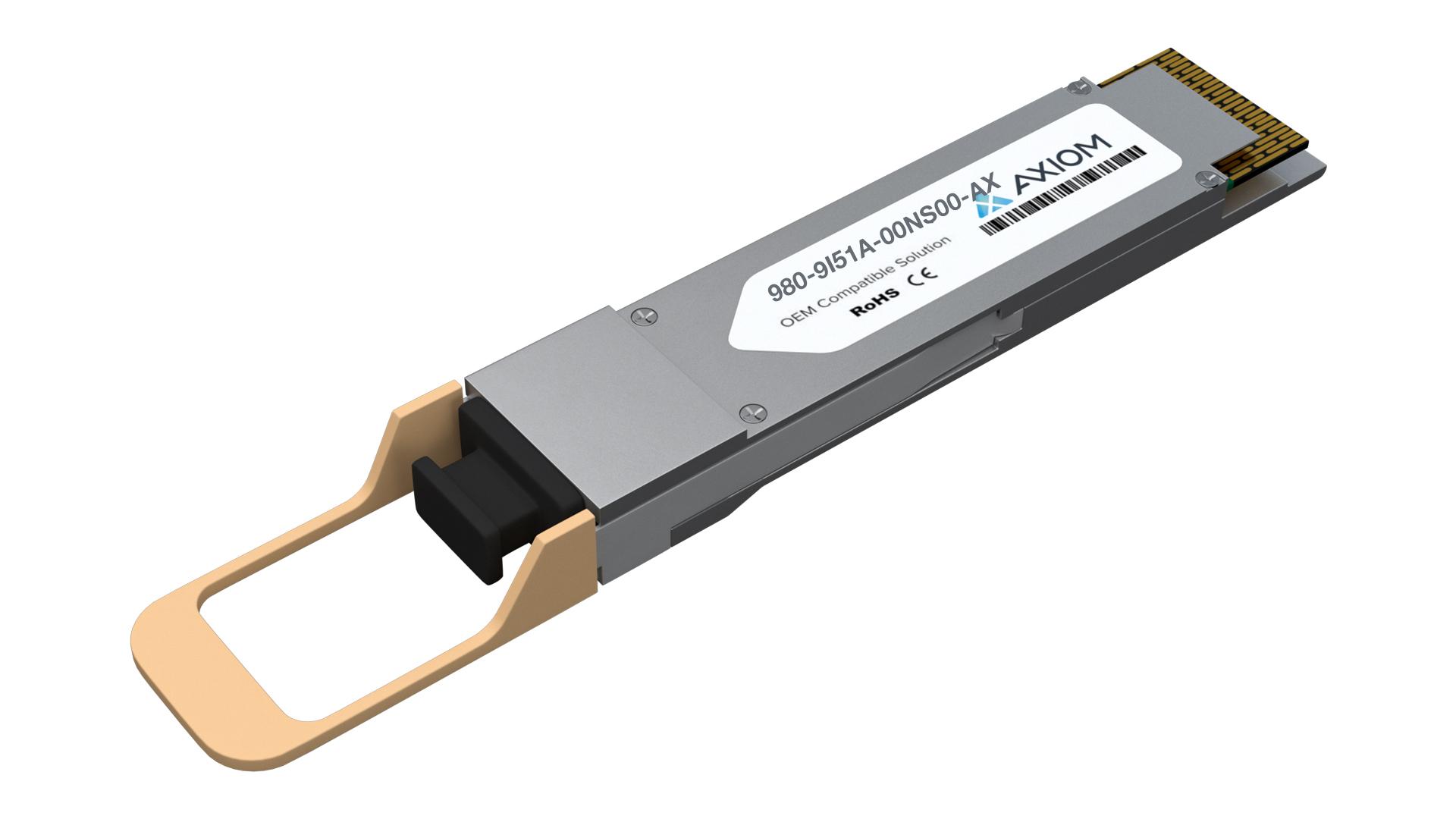

800G 2XVR4/VR8 OSFP 50m RHS Flat Top ETH & IB NDR Nvidia Compatible

Part Number: 980-9I51A-00NS00-AX

Category: 800G OSFP112 Transceiver

Description: Axiom 800G 2XVR4/VR8 OSFP 50m RHS Flat Top ETH & IB NDR Nvidia Compatible

Comparable to OEM #: 980-9I51A-00NS00

Features

Axiom OSFP112 Transceiver Modules are 100% compatible in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. Axiom compatible transceivers perform, fit and function identically when compared to “Original” Transceivers. Axiom brand transceivers also function with other brands within the same network.

• 100% Guaranteed Compatibility in all OEM applications
• Part number and unique product serialization; Eliminates any network communication conflicts and provides easy identification
• Fully compliant with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms

Original Equipment Manufacturer (OEM)® names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for comparative purposes only.

Specifications

Form-factor: OSFP
Interface: 800G 2xVR4/VR8
Fiber Type: Multi-mode Fiber (MMF)
Connector Type: Dual MPO-12 APC
Maximum Distance: 30m on OM3 and 50m on OM4 with FEC
Wavelength Tx/Rx: 850nm
Operating Temperature: 0°C to 70°C
Digital Optical Monitoring (DOM): Yes
Supported Protocol: Ethernet and InfiniBand NDR

Compliant Standards:
OSFP MSA Compliant
RoHS Compliant
IEEE 802.3bs

Warranty

Limited Lifetime Warranty
