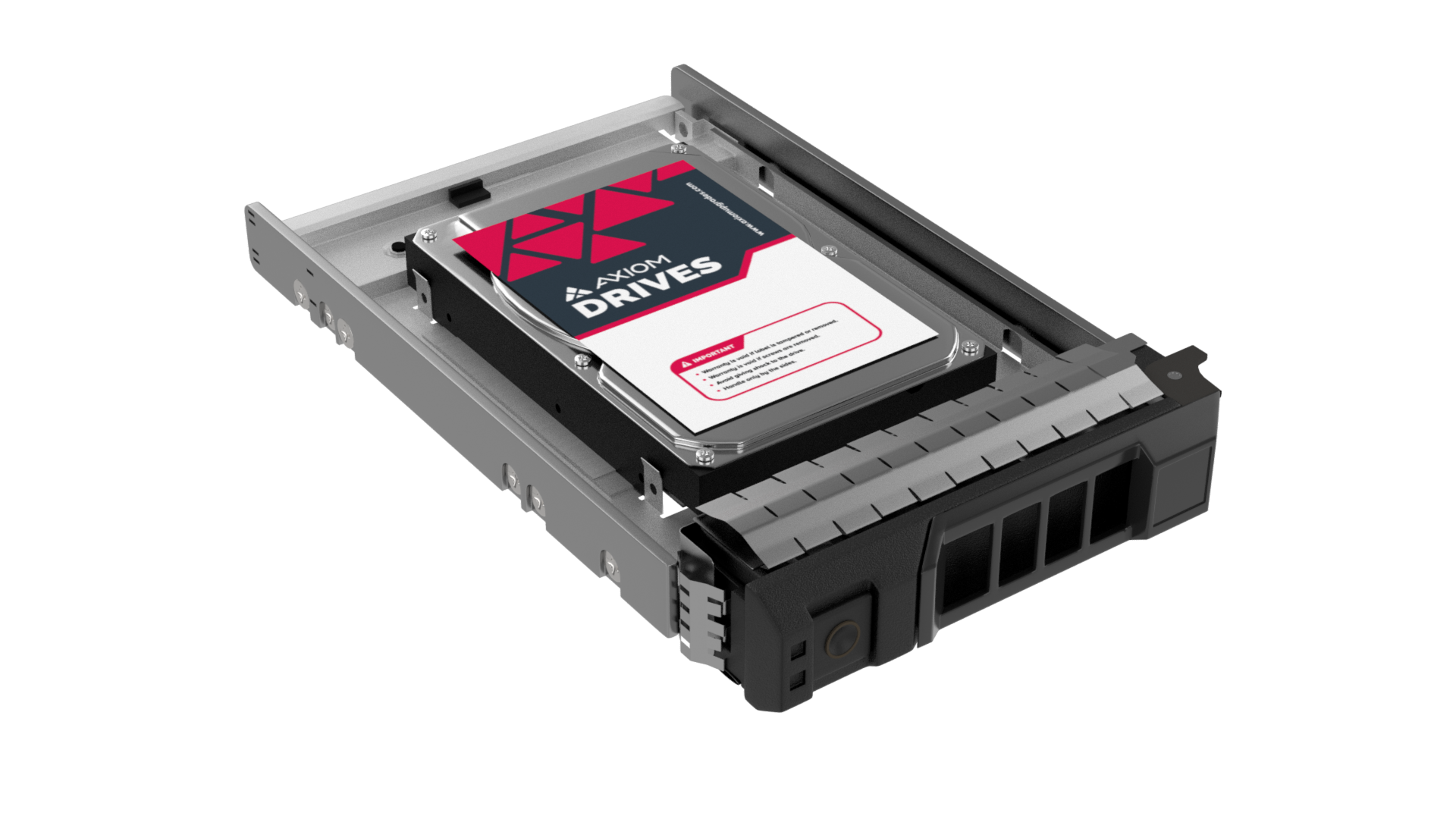

* Product representation may vary from image shown

960GB Enterprise EV100 3.5-inch Hot-Swap SATA SSD for Dell

Part Number: SSDEV10DF960-AX

Category: 3.5" SATA 6GB/s EV100 Hot-Swap Enterprise SSD

Description: Axiom 960GB Enterprise EV100 3.5-inch Hot-Swap SATA SSD for Dell

Comparable to OEM #: N/A

Features

Designed for enterprise data center the EV100 hot-swap solid state drive (SSD) delivers reliable data throughput optimized for read-intensive workloads.
Striking a balance between the high demands for data storage capacity and the expectation for 24/7 access, the Axiom EV100 hot-swap drives enable IT infrastructure to hyperscale capacity while meeting the challenge of the higher performance storage tiers.
For use in mission-critical environments where low latency performance and large amounts of data storage capacity are required.

Product Spotlight:
• Low total cost of ownership (TCO)
• Proven quality and reliability
• Optimized for data center applications
• Enhanced enterprise endurance with .3 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 68K/20K

Product Features:
• Standard Endurance Technology (SET)
• Consistent I/O latency and high I/O throughput performance
• Enhanced power-loss protection and power failure protection
• Temperature sensor and monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection platform

Specialized for the following workloads:
• Web Servers
• Content Repositories
• Video on Demand (VoD)
• Media Streaming
• Analytics, NoSQL, and Data Warehousing
• Web-based Applications

Specifications

Capacity: 960GB
Components: 16nm NAND MLC
Encryption: AES 256-bit
Interface: SATA
Transfer Rate Synchronous (Maximum): 6Gbps
Form Factor: 3.5–inch
RoHS Compliant

Bandwidth Performance:
- Sustained Sequential Read: Up to 500 MB/s
- Sustained Sequential Write: Up to 460 MB/s
Read and Write IOPS (Full LBA Range, IOMeter Queue Depth 32):
- Random 4KB Reads: Up to 67,000 IOPS
- Random 4KB Writes: Up to 15,300 IOPS

Endurance: 1 drive writes per day for 5 years
- 960GB: 450 TBW

Operating Temperature: 0° C to 70° C
Maximum altitude: 10,000 ft
Average Power Consumption: Active: Up to 5.6 W (TYP) - Idle: 600 mW
Power Management: 5.0 V ± 5%
Reliability (MTBF): 2,000,000 Hours
Shock: 1,000 G/0.5 ms

Warranty

5 Year Limited Warranty
