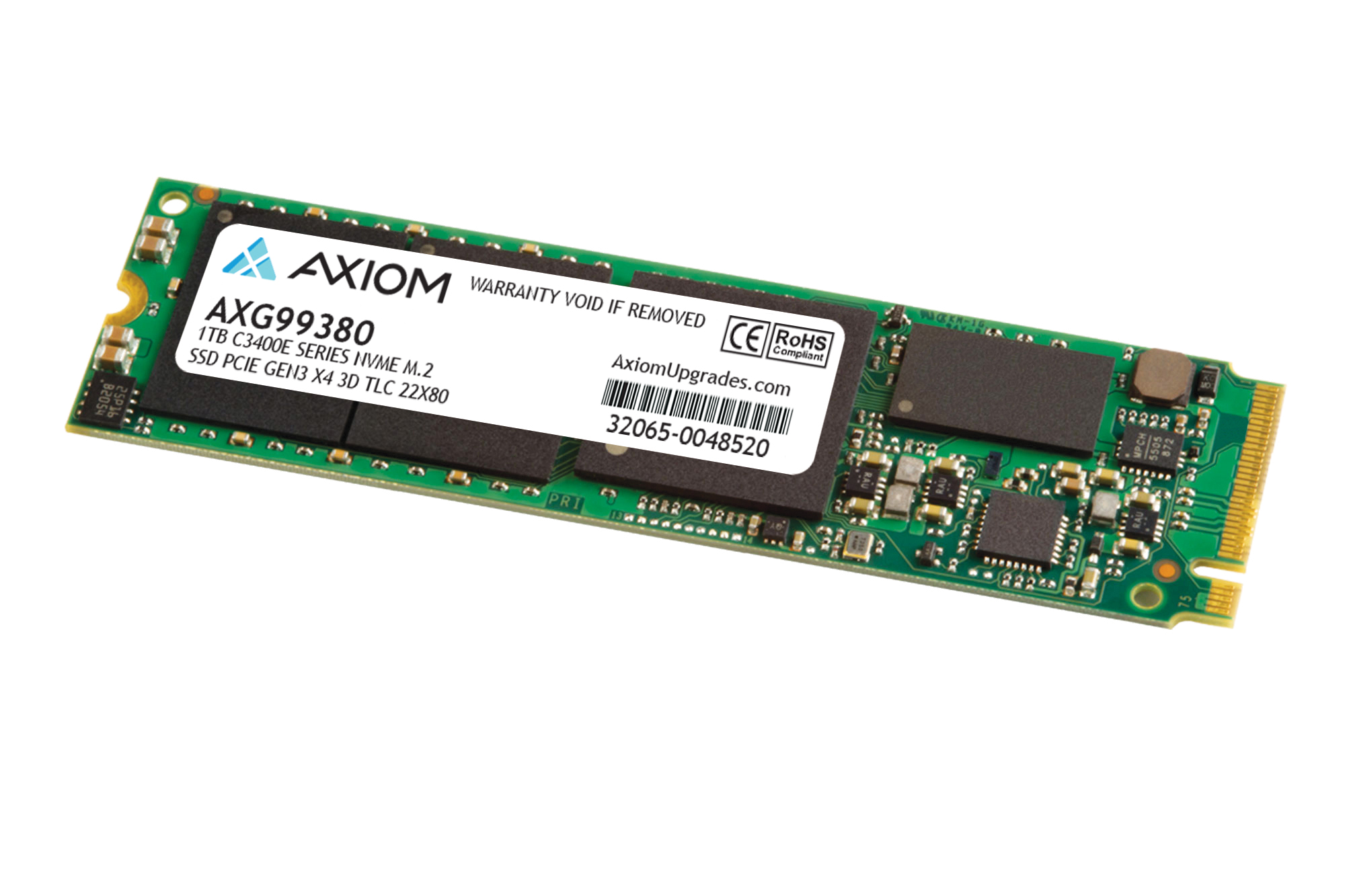

* Product representation may vary from image shown

1TB C3400e Series PCIe Gen3x4 NVMe M.2 TLC SSD - TAA Compliant

Part Number: AXG99380

Category: C3400e Series NVMe M.2 SSD

Description: 1TB C3400e Series PCIe Gen3x4 NVMe M.2 TLC SSD - TAA Compliant

Features

The C3400e Series NVMe M.2 SSD is designed for high-performance computing (HPC) enthusiasts while providing outstanding endurance and the latest TCG OPAL 2.0 data encryption. It features an ultra-fast PCIe Gen3x4 interface that offers sustained peak read/write speeds of 3400/2950MB per second, outpacing SATA 6Gb/s M.2 by an overwhelming margin. The compact M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 120GB and up to 2TB capacities.

Key Features & Benefits
• Latest Generation 3D TLC NAND Flash : Higher capacity, durability, and power efficiency
• OPAL 2.0 data encryption
• NVMe protocol 1.3 compliant
• PCIe Gen3 x4 lane interface
• Silicon Motion SM2262 controller
• Dynamic SLC caching accelerates burst performance
• S.M.A.R.T. support

Add to Quote
Specifications Warranty

Specifications

Capacity
• 1TB

Features
• Silicon Motion 3D TLC Flash controller
• SLC caching accelerates burst performance
• StaticDataRefresh technology ensures data integrity
• Data shaping increases endurance
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate function support (NVMe equivalent of TRIM command)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe Gen3 x4 NVMe 1.3 interface
• Temperature sensor
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D TLC NAND

Performance
• Sequential Read: Up to 3400MB/s
• Sequential Write: Up to 2900MB/s
• Random Read: Up to 320K IOPS (4K block size)
• Random Write: Up to 340K IOPS (4K block size)

Endurance
• TBW: Up to 1069TB
• DWPD: 1.08 (3y)

Security
• AES compliant Data Encryption
• IEEE1667 encryption support
• TCG OPAL 2.0 Support
• Self-encrypting drive (SED)
• NVMe Security Erase support

Reliability
• MTBF: 1.5 million device hours*
• Built-in Low Density Parity Check (LDPC) ECC
• Global wear-leveling evens program/erase counts across data blocks to extend lifespan
• End-to-end data path protection
• Uncorrectable Bit Error Rate: =1 sector per 1015 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 5.7W (Active), 0.72W (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.

Warranty

3 Year Limited Warranty
