* Product representation may vary from image shown

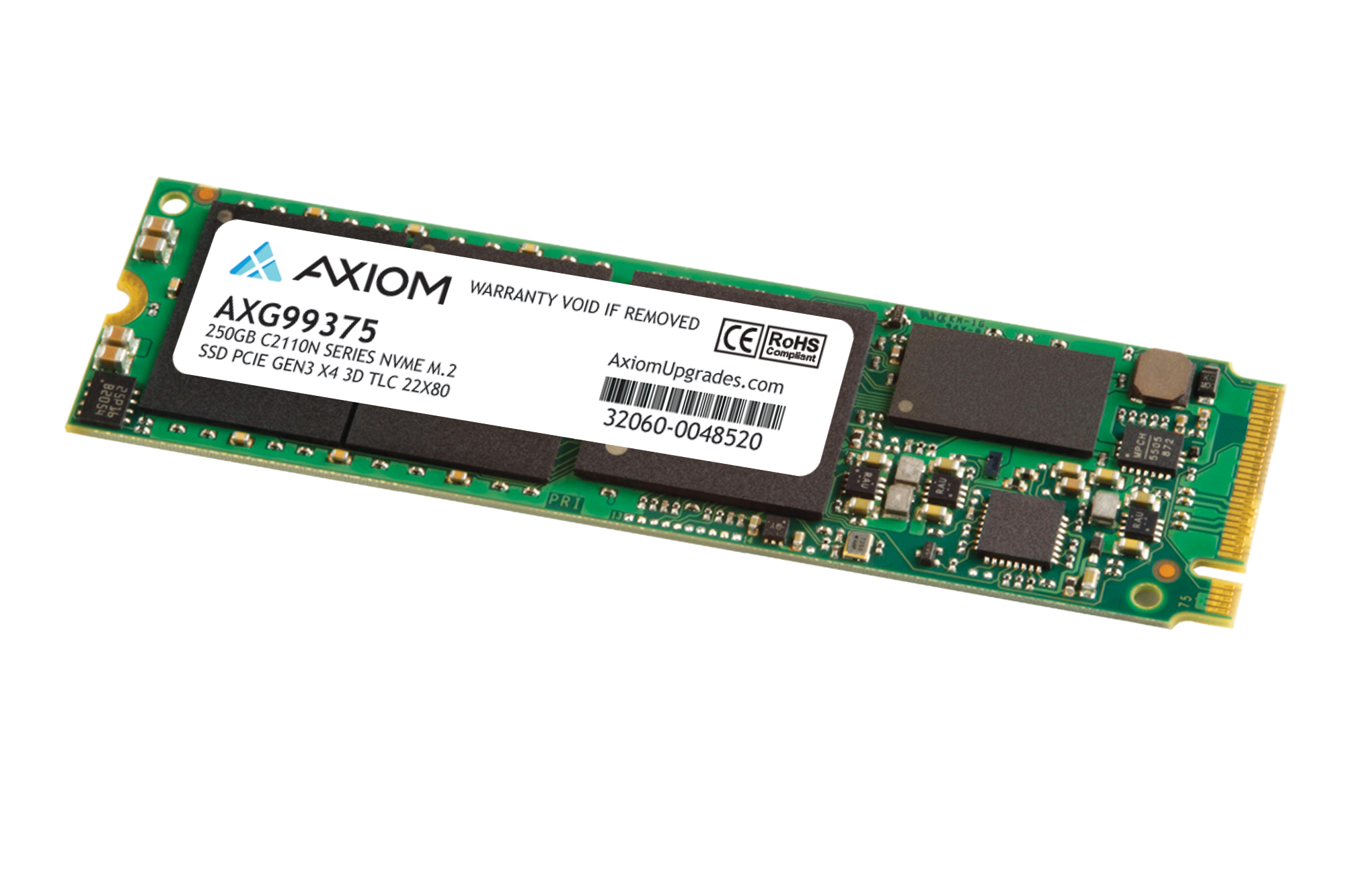

250GB C2110n Series PCIe Gen3 x4 NVMe M.2 TLC SSD - TAA Compliant

Part Number: AXG99375

Category: C2110n PCIe 3.0 NVMe M.2 SSD

Description: 250GB C2110n Series PCIe Gen3 x4 NVMe M.2 TLC SSD - TAA Compliant

Features

The Axiom C2110n NVMe M.2 SSD is a new generation SSD that delivers loads of value in a cost-effective PCIe Gen3 x4 SSD package. The C2210n features high speeds up to 2110MB/s read and 1700MB/s write, while the DRAM-less design of reduces costs without compromising performance. It features four 8 gigabit-per-second (Gbps) lanes (PCIe Gen3 x4) of simultaneous data flow coupled with four NAND channels. By optimizing hardware and software to take full advantage of PCIe 3.1 and NVMe 1.3 SSD specifications, the C2110n solutions deliver high performance, better reliability, and a more cost-effective PCIe SSD solution.

Key Features & Benefits
• 3D TLC NAND
• NVMe protocol 1.3 compliant
• PCIe Gen3 x4 lane interface
• Silicon Motion Flash controller
• Dynamic SLC caching accelerates burst performance
• S.M.A.R.T. support
• 22x80 mm

Specifications

Capacity
• 250GB

Features
• Silicon Motion 3D TLC Flash controller
• SLC caching accelerates burst performance
• Global wear-leveling evens program/erase counts across data blocks to extend lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate support
• Host Memory Buffer (HMB) support (OS dependent)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe revision 3.1 compliant
• NVMe protocol 1.3 compliant
• PCIe Gen3 x4
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D NAND

Performance
• Sequential Read: Up to 2010MB/s
• Sequential Write: Up to 1250MB/s
• Random Read: Up to 200K IOPS (4K block size)
• Random Write: Up to 260K IOPS (4K block size)

Endurance
• TBW: Up to 227TB
• DWPD: 0.913 (3y)

Security
• NVMe Security Erase support

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: <1 sector per 1015 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 5.3W (Active), 0.3W (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.

Warranty

3 Year Limited Warranty
