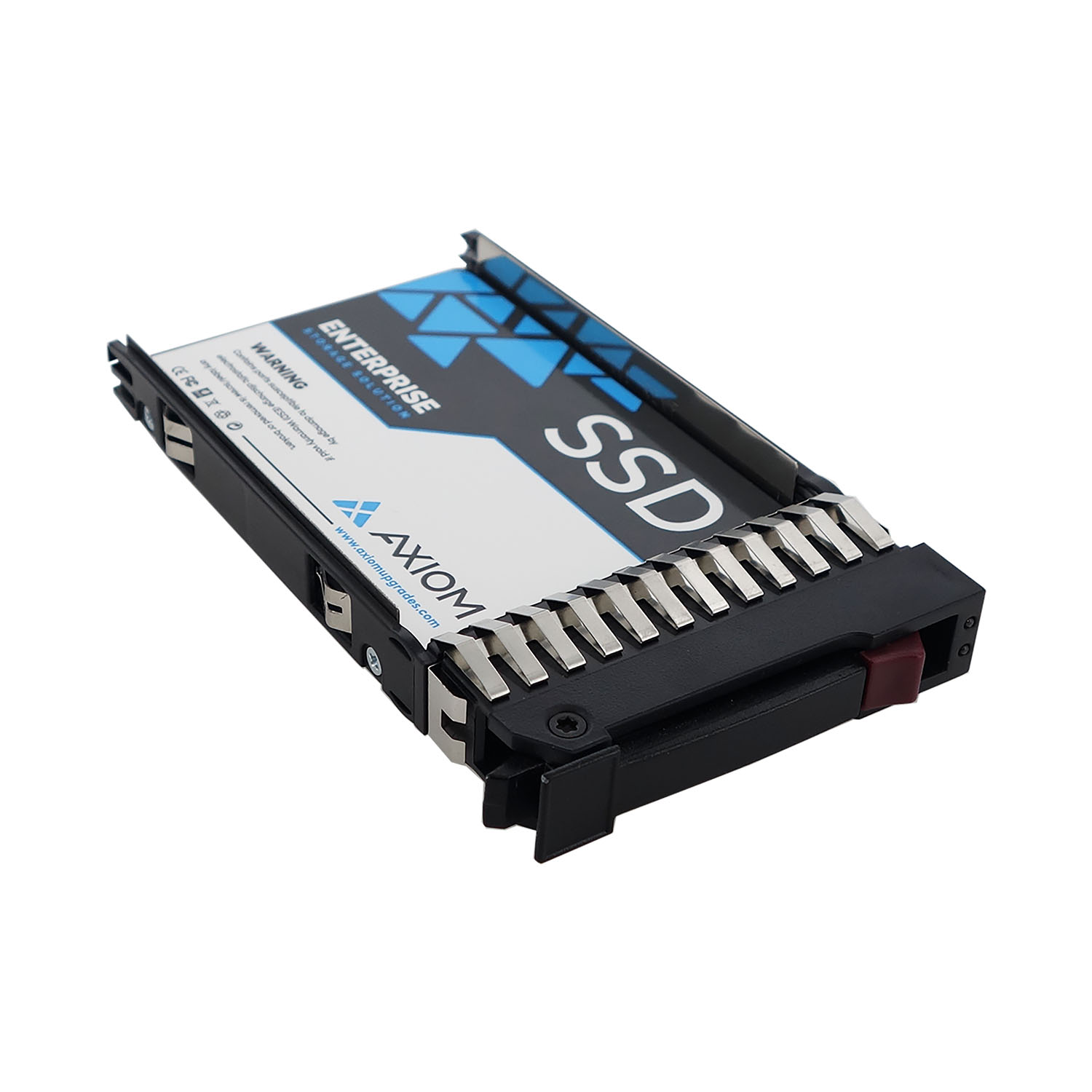

480GB Enterprise EV300 2.5-inch Hot-Swap SATA SSD for HP - 764918-B21

Part Number: 764918-B21-AX

Category: 2.5" SATA EV300 Hot-Swap Enterprise Value SSD

Description: Axiom 480GB Enterprise EV300 2.5-inch Hot-Swap SATA SSD for HP - 764918-B21

Comparable to OEM #: 764918-B21

Features

The Axiom EV300 hot-swap solid state drive (SSD) offers the latest solid state technology optimized for mix read-write applications in data center environments that require high performance, endurance, and strong data protection. Optimized for energy savings for hyperscale environments the EV300 leverages the peak and sustained performance of solid-state NAND with the endurance and reliability demanded in mission critical computing
For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and direct-attached applications. It is designed for mixed use application workloads where high performance, reliable throughput, data integrity, data loss protection, and endurance are paramount.

Product Spotlight:
• Low total cost of ownership (TCO) and better data center efficiency
• Proven quality and reliability
• Optimized for data center applications
• Self-Encrypting Drive (SED) w/ 256-bit AES Encryption
• Enhanced enterprise endurance with 3 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 84K/28K
• Lifetime Endurance – Up to 10.7 Petabytes Written

Product Features:
• High Endurance Technology (HET)
• Consistent I/O latency and high I/O throughput performance
• Enhanced power-loss protection and power failure protection
• Temperature sensor and monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection platform

Specialized for the following workloads:
• Demanding QoS, latency-sensitive applications and databases
• IaaS, PaaS, and SaaS Infrastructure
• NoSQL performance acceleration
• Media editing and delivery
• DBaas, MySQL, PostgreSQL transaction processing
• OpenStack cloud computing platforms
• Virtualized environments (VDI)
• E-Commerce, micropayments

Specifications

Capacity: 480GB
Components: 20nm NAND MLC (HET)
Encryption: AES 256-bit
Interface: SATA
Transfer Rate Synchronous (Maximum): 6Gbps
Form Factor: 2.5–inch
RoHS Compliant

Bandwidth Performance:
- Sustained Sequential Read: Up to 550 MB/s
- Sustained Sequential Write: Up to 450 MB/s
Read and Write IOPS (Full LBA Range, IOMeter Queue Depth 32):
- Random 4KB Reads: Up to 84,000 IOPS
- Random 4KB Writes: Up to 25,000 IOPS

Endurance: 3 drive writes per day for 5 years
- 480GB: 2,566 TBW

Operating Temperature: 0° C to 70° C
Maximum altitude: 10,000 ft
Average Power Consumption: Active: Up to 6.8 W (TYP) - Idle: 600 mW
Power Management: 5.0 V ± 5%
Reliability (MTBF): 2,000,000 Hours
Shock: 1,000 G/0.5 ms

Warranty

5 Year Limited Warranty
