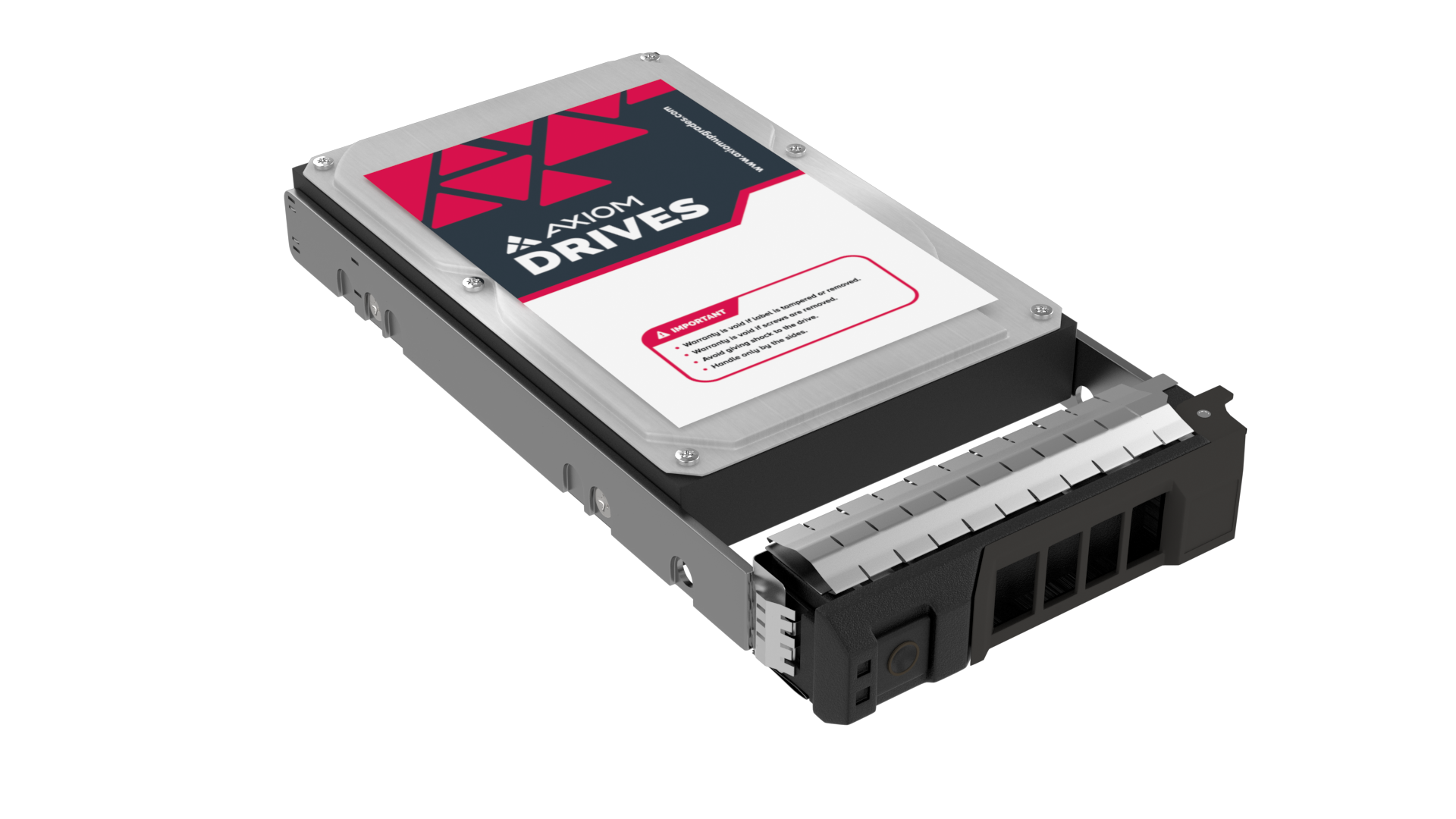

* Product representation may vary from image shown

16TB 6Gb/s SATA 7.2K RPM LFF 512e Hot-Swap HDD for Dell - 400-BHFM

Part Number: 400-BHFD-AX

Category: 3.5" SATA 6Gb/s Enterprise Hot-Swap Drive 7200rpm

Description: Axiom 16TB 6Gb/s SATA 7.2K RPM LFF 512e Hot-Swap HDD for Dell - 400-BHFM

Comparable to OEM #: 400-BHFD

Features

Axiom's Enterprise Class hard drives are leading the industry with a range of high capacity enterprise drive options. These drives feature enterprise class reliability with the power and performance efficiency that make them ideal for capacity optimized, 24x7 multi-drive server and storage environments.

* Delivers proven reliability, with a higher MTBF than standard grade drives
* Larger drive cache allows much faster access to data on the platters within the hard drive
* Reduces design and support costs by building a solid enterprise storage foundation
* Offers traditional form factors with enhanced rotational vibration tolerance and high data integrity for enterprise class reliability in a cost effective drive
* Fully tested for drive speed and quality
* Meets or exceeds original manufacturer's specifications
* Free unlimited tech support

*Note: AXIOM LEGACY HARD DRIVE PRODUCTS MAY CONTAIN RE-CERTIFIED AND/OR RECONDITIONED COMPONENTS. This may include 146GB and smaller LFF & SFF SAS drives. All other drives are guaranteed new! – Please contact your Axiom Sales Associate for Details!*

Specifications

*Specifications*
Part Number: 400-BHFD-AX
Capacity: 16TB
Interface: 6Gb/s SATA
Sector Size: 512e

*Performance*
Data transfer rate (max)
Buffer to host: 6 Gb/s
Host to/from drive (sustained): 255 MB/s
Cache (MB): 256
Performance Class: 7200 RPM Class

*Reliability/Data Integrity*
Load/unload cycles: 600,000
Nonrecoverable Read Errors per Bits Read: 1 sector per 10E15
Mean Time Between Failures (MTBF, hours): 2.5M
Reliability Rating @ Full 24x7 Operation (AFR): 0.35%

*Power Management*
Average power requirements (W)
Sequential read: 7.0
Sequential write: 6.8
Random read/write: 6.9
Idle: 5.0

*Environmental*
Temperature (°C)
Operating: 5 to 60
Non-operating: -40 to 70

Shock (Gs)
Operating (half-sine wave, 2ms): 70G
Non-operating (half-sine wave): 300 (2ms)/150 (11ms)

Acoustics (dBA)
Idle: 20
Seek (average): 36

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
Specs based on seagate P/N: ST16000NM001G and are subject to change without notification.

Warranty

3 Year Limited Warranty
