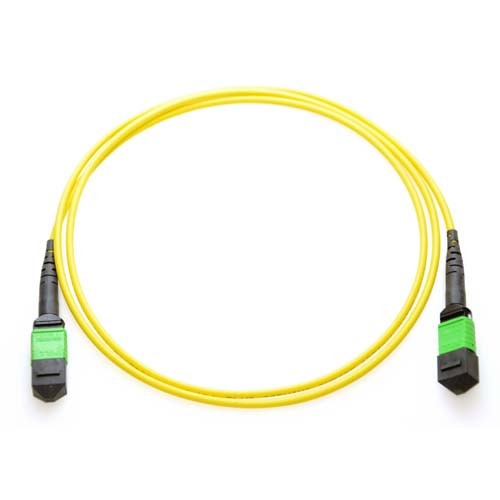

* Product representation may vary from image shown

MPO Female to MPO Female Singlemode 9/125 Fiber Optic Cable - 3m

Part Number: MPOFFSM3M-AX

Category: MPO-12 Female to MPO-12 Female Singlemode Cable

Description: Axiom MPO Female to MPO Female Singlemode 9/125 Fiber Optic Cable - 3m

Comparable to OEM #: N/A

Features

Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you're upgrading components or installing a brand new network, you'll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.

Add to Quote
Description Warranty

Description

Axiom MPO Cables are designed to be used in any high-density fiber optic environment, such as digital cross-connects, optical backplanes, parallel processing applications, and Fibre Channel storage facilities.

Features:
• Flame-Retardant Jacket
• Polished end-face quality to IEC 61300-3-35 standard
• 12 fibers
• Push on / Pull-off latching connector
• Precision guide pin assures fiber alignment

Cable Specs:
• 9/125 SMF cable
• (2) MPO/MTP APC Female connectors at both ends
• Fiber Count: 12
• Jacket Type/Flame Rating: plenum (OFNP)
• Jacket Color: Yellow
• Termination Type/Polarity: Method B Crossover - Rolled - Key up / Key up Pin 1-12 style
• Compliance: RoHS Compliant, TIA/EI942, ISO/IEC 24764, EN 50173-5
• Insertion Loss, Typical: = 0.1dB SM
• Return Loss, Maximum: = -55dB

Connector Order:
1 - 12
2 - 11
3 - 10
4 - 9
5 - 8
6 - 7
7 - 6
8 - 5
9 - 4
10 - 3
11 - 2
12 - 1

Warranty

Limited Lifetime Warranty
