MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 15m - TAA Compliant

Part Number: AXG96655

Category: MPO-12 to 8 fiber - LC Duplex OM4 Cable

Description: MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 15m - TAA Compliant

Features

Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you're upgrading components or installing a brand new network, you'll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.

Description

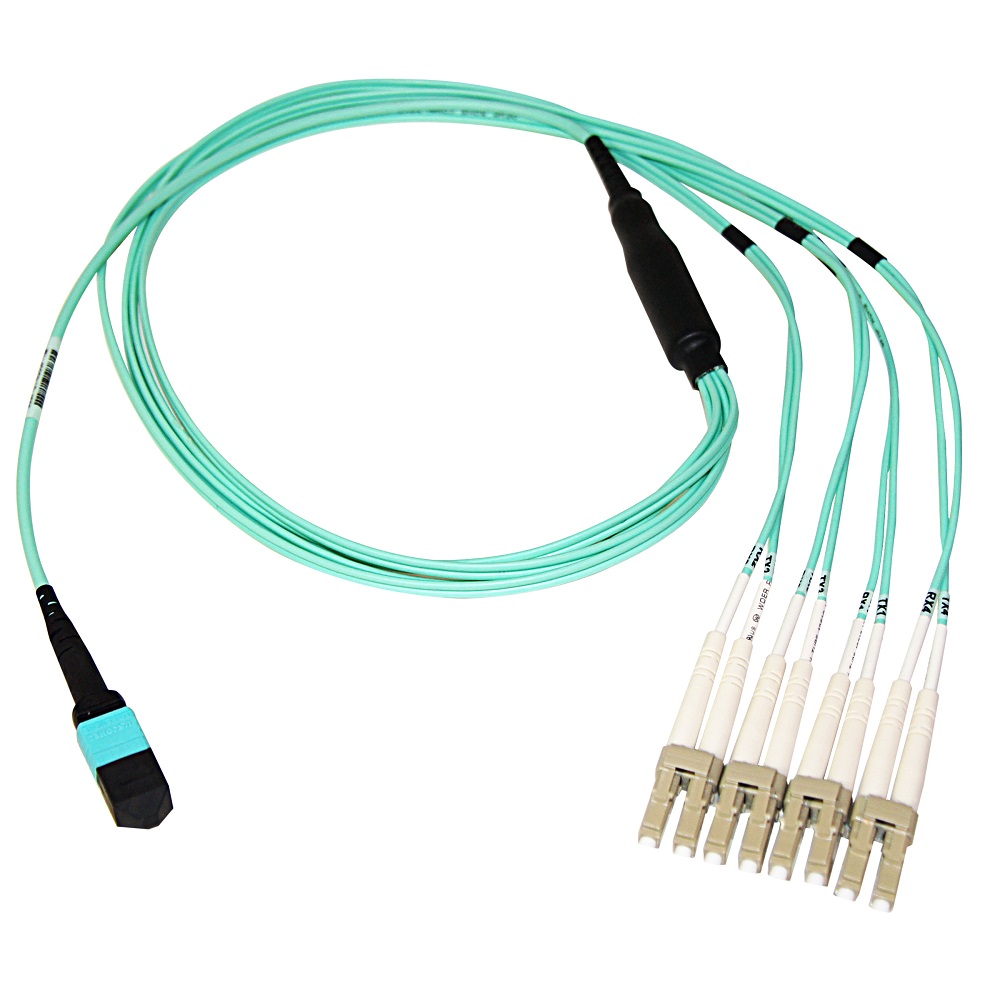

• MTP/MPO - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua
• MTP/MPO12 (Female) and (4) LC Duplex Connectors One Side
• All Connectors Have Ceramic Ferrules
• Duplex Clips On LC Side
• Plenum (OFNP) Rated Aqua Jacket With Corning Glass
• Jacket OD: 3.0mm (MPO) 2.0mm (LC)
• Typical Return Loss,min.: MTP=20dB, LC=30dB
• Typical Insertion Loss (MPO): 0.16dB
• Typical Insertion Loss (LC): 0.35dB
• Long Term Tensile Strength: 150n
• Long Term Crush Resistance: 200n/100mm
• Operating Temperature: -40° C To +70° C
• Color: Aqua
