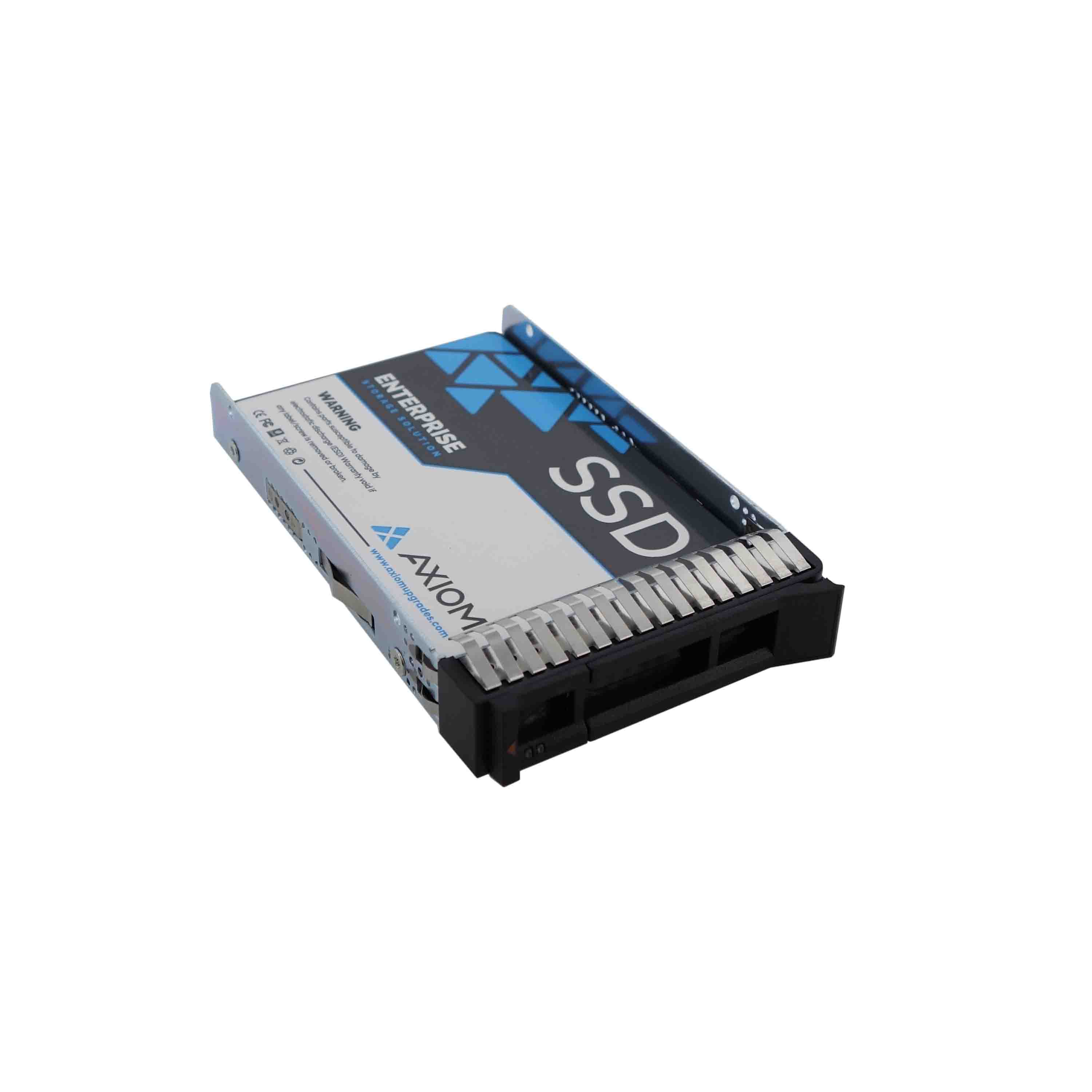

* Product representation may vary from image shown

200GB Enterprise Pro EP500 2.5-inch Hot-Swap SATA SSD for Lenovo

Part Number: 00YC320-AX

Category: 2.5" Hot-Swap Enterprise Professional EP500 SSD

Description: Axiom 200GB Enterprise Pro EP500 2.5-inch Hot-Swap SATA SSD for Lenovo

Comparable to OEM #: 00YC320

•   Validated in U.S. engineering labs
•   OEM-alternative lifecycle support available
•   Supports post-warranty infrastructure environments

Evaluate Lifecycle Extension Options Need Pricing? Request Maintenance Pricing

Features

The Axiom EP500 enterprise hot-swap solid state drive (SSD) delivers the latest in solid state technology optimized for write-intensive applications. It is designed for data center environments that require high performance, endurance, and uncompromising data protection. Providing outstanding performance metrics and a comprehensive set of high-end features the EP500 provides a seamless integration path with existing IT infrastructure.
The ideal hot-swap direct attach storage solution for organizations requiring high-availability, sustained performance and enhance drive endurance, even when subject to continuous write-intensive workloads.

Product Spotlight:
• Low total cost of ownership (TCO) and better data center efficiency
• Proven quality and reliability
• Optimized for data center write-intensive applications
• Self-Encrypting Drive (SED) w/ 256-bit AES Encryption
• Enhanced enterprise endurance with 10 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 85K/45K
• Lifetime Endurance – Up to 24.3 Petabytes Written

Product Features:
• High Endurance Technology (HET)
• Consistent low I/O latency and high I/O throughput performance
• Enhanced power-loss protection and power failure protection
• Temperature sensor and monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection platform

Specialized for the following workloads:
• High Performance Computing (HPC)
• Database Logging
• Demanding QoS, latency-sensitive applications and databases
• Data Warehousing
• IaaS, PaaS, and SaaS Infrastructure
• NoSQL performance acceleration
• Media editing and delivery
• DBaas, MySQL, PostgreSQL transaction processing
• OpenStack cloud computing platforms

Specifications

Capacity: 200GB
Components: 20nm NAND MLC (HET)
Encryption: AES 256-bit
Interface: SATA
Transfer Rate Synchronous (Maximum): 6Gbps
Form Factor: 2.5–inch
RoHS Compliant

Bandwidth Performance:
- Sustained Sequential Read: Up to 550 MB/s
- Sustained Sequential Write: Up to 300 MB/s
Read and Write IOPS (Full LBA Range, IOMeter Queue Depth 32):
- Random 4KB Reads: Up to 85,000 IOPS
- Random 4KB Writes: Up to 43,000 IOPS

Endurance: 10 drive writes per day for 5 years
- 200GB: 3,686 TBW

Operating Temperature: 0° C to 70° C
Maximum altitude: 10,000 ft
Average Power Consumption: Active: Up to 6.9 W (TYP) - Idle: 600 mW
Power Management: 5.0 V ± 5%
Reliability (MTBF): 2,000,000 Hours
Shock: 1,000 G/0.5 ms

Warranty

5 Year Limited Warranty
