X710DA2-AX
Category: PCIe 3.0 x8 10Gbs Fiber Network Adapter

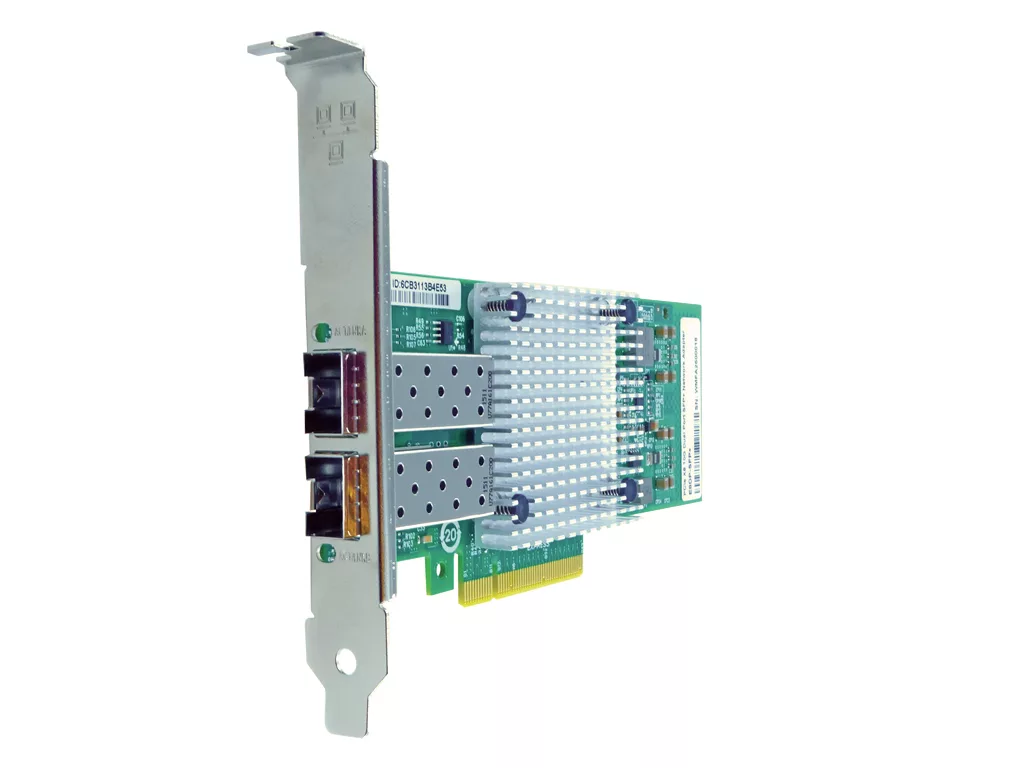

Description: Axiom 10Gbs Dual Port SFP+ PCIe 3.0 x8 NIC Card for Intel - X710DA2
Comparable to OEM #: X710DA2, X710-DA2

Features

The Axiom PCIe 3.0 x8 10Gbs Fiber Network Adapter is a new generation of high-performance server adapter. Based on the Intel X710-BM2 controller, our server adapters address the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

The PCIe 3.0 x8 10Gbs Fiber Network Adapter delivers superior performance in a PCI Express v3.0 x8 slot.

Key features include:
•Small Packet Performance: Achieves wire-rate throughput on smaller payload sizes (>64 Bytes for 10 GbE)
•Bulk Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers
•Network Virtualization: Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE
•Storage Performance: Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE)
•Includes Full Height and Half Height Mounting Brackets
Axiom PCIe 3.0 10Gbs network adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

*Part Number:* X710DA2-AX
*OEM Compatibility:* Axiom®
*Bus Type:* PCIe v3.0 (8 GT/s)
*Bus Width:* x8
*Chipset:* Intel® X710-BM2
*Manageability Features:* iSCSI Boot, PXE boot, SNMP & RMON Statistic Counters, Watchdog Timer
*Data Protocol:* Ethernet
*Data rate supported per port:* Optical: 1 GbE/10 GbE and Direct Attach: 10 GbE
*External Connector:* SFP+
*Number of Ports:* 2
*OS Compatibility:* Windows Server* 2012 R2, Windows Server 2012 R2 Core, Windows Server 2012, Windows Server 2012 Core, Windows Server 2008 R2, Windows Server 2008 R2 Core, Linux* Stable Kernel version 2.6.32/3x, Linux* RHEL 6.5 and RHEL 7.0, Linux* SLES 11 SP3 and SLES 12, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), Vmware ESXi 5.5
*LED Indicators:* LINK (solid) and ACTIVITY (blinking)
LINK SPEED (green=10 Gbps; yellow=1 Gbps)
*Dimensions (H x W x D):* 165mm x 13mm x 68mm
*Weight:* 0.31lb
Warranty
3 Year Limited Warranty
