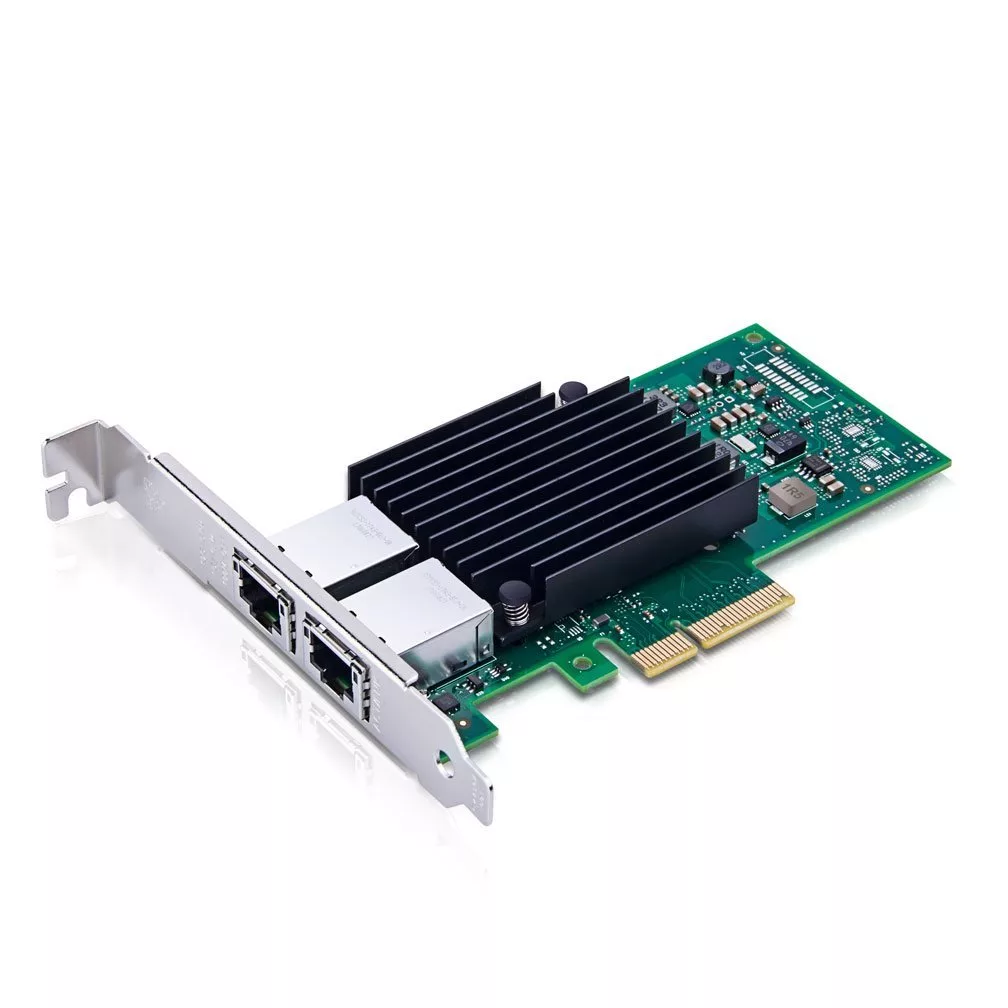

X550T2-AX
Category: PCIe 3.0 x4 10Gbs Copper Network Adapter
Description: Axiom 10Gbs Dual Port RJ45 PCIe 3.0 x4 NIC Card for Intel - X550T2, X550-T2
OEM Part#: X550T2, X550-T2

Features

Axiom's 10GbE Copper Network Adapters are the latest generation of high-performance PCIe 3.0 x4 Lane 10 Gigabit NIC Cards, based on the Intel X550AT controller. The server adapter simplifies migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).

Key Features
• Low cost, low power, 10GbE performance for the entire datacenter.
• New generation single- and dual-port 1OGBASE-T controller with integrated MAC and PHY
• Standard CAT6a cabling with RJ45 connectors.
• Supports NBASE-T technology (2.5 and 5.0 GbE over CAT 5e)
• Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10GbE.
• PCI Express - (PCIe) v3.0 with up to 8.0 GT/s
• Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
• Flexible 1/0 virtualization for port partitioning and Quality of Service (QoS) of up to 64 virtual ports
• Reliable, proven 10GbE technology from Intel Corporation.
• Includes Full Height and Half Height Mounting Brackets
Axiom PCIe 3.0 10Gbs network adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

*Part Number:* X550T2-AX
*OEM Compatibility:* Intel®
*Bus Type:* PCIe v3.0 (8 GT/s)
*Bus Width:* x4
*Chipset:* Intel® Intel® X550AT2
*Data Protocol:* Ethernet
*Data Rate:* 10Gbs
*External Connector:* RJ-45
*Media Type:* Copper
*Number of Ports:* 2
*Connection distance:* 100m
*Jumbo frames:* up to 15.5KB
*OS Compatibility:* Windows ServerX 2012 R2, Windows Server 2012 R2 Core, Windows Server 2012, Windows Server 2012 Core, Windows Server 2008 R2, Windows Server 2008 R2 Core, LinuxX Stable Kernel version 2.6.32/3x, LinuxX RHEL 6.5 and RHEL 7.0, LinuxX SLES 11 SP3 and SLES 12, FreeBSDX 9 and FreeBSDX 10, UEFIX 2.1, UEFIX 2.3, VMware ESXi 5.1(Limited Functionality), VMware ESXi 5.5
*LED Indicators:*
Link (green/orange bright) and ACTIVITY (green flashing)
Link Rate (green=10Gbps;orange=1Gbps/100Mbps)
*Dimensions (H x W x D):* 167mm x 18mm x 70mm
*Weight:* 0.41lb
Warranty
3 Year Limited Warranty
