SSDMO58XT240-AX

Category: C550n Series mSATA SSD

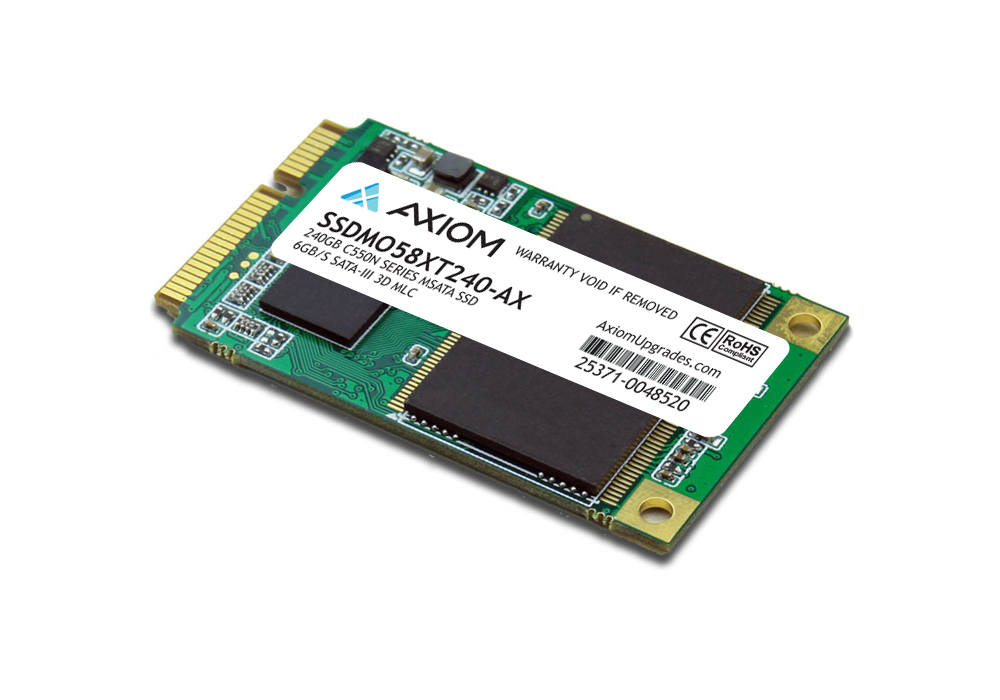

Description: Axiom 240GB C550n Series mSATA SSD 6Gb/s SATA-III

Comparable to OEM #: N/A

Capacity: 240GB

Features

The Axiom C550n Series mSATA SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.
Providing an industry-leading bandwidth of more than 550MB/sec transfers, the Axiom C550n Series mSATA SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 76,000 IOPS.
A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.

Reduced Power Requirements
• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD

Fast Performance
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate

Reliable
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs

Improved Operation
• Noise and vibration free
• Virtually no heat emissions
• Lighter than conventional storage

Specifications

Capacity
• 240GB

Features
• Silicon Motion 3D TLC Flash controller
• SATA 3.2 Compliant
• SATA 6.0Gb/s with 3Gb/s and 1.5Gb/s support
• ATA/ATAPI-8-ACS3 command set compliant
• SLC caching accelerates burst performance
• StaticDataRefresh technology ensures data integrity
• Industry-standard 512 byte sector support
• TRIM command support (OS dependent)
• LDPC hard and soft decode ECC
• Internal flash RAID-like parity scheme provides an additional layer of error correction
• Field-upgradeable firmware
• Native Command Queuing (NCQ) support with 32 command queue depth
• RoHS-compliant package
• 3D NAND
• S.M.A.R.T. support

Performance
• Sequential Read: Up to 560MB/s
• Sequential Write: Up to 515MB/s
• Random Read: Up to 54K IOPS (4K block size)
• Random Write: Up to 81K IOPS (4K block size)

Endurance
• TBW: Up to 100TB
• DWPD (3yr): 0.39

Security
• User Selectable Password (if BIOS supported)
• Secure Erase (Factory Reset - ATA)

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 2.1W (Active), 0.09W (Idle)
• Dimensions: MO-300: 50.8 x 30.0 x 4.8 mm
• Weight: 0.013lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction procedure.

Compatible Systems

ASUS - VivoMini UN62
Acer - ICONIA Tab W500
Dell - Inspiron Mini 9 (910)
Dell - Latitude 12 5000 Series (Early 2015)
Dell - Latitude 12 5000 Series (Late 2014)
Dell - Latitude 12 7000 Series
Dell - Latitude 14 Rugged (5404)
Dell - Latitude 14 Rugged Extreme (7404)
Dell - Latitude 6430u
Dell - Latitude E5250/5250 (Early 2015)
Dell - Latitude E5250/5250 (Late 2014)
Dell - Latitude E5550/5550 (5th Gen Intel Core)
Dell - Latitude E6540
Dell - Latitude E7240
Dell - Latitude E7250/7250
Dell - Latitude E7440
Dell - Latitude Rugged Extreme 12 (7204)
Dell - Latitude Rugged Extreme 14 (7404)
Dell - Precision M3800
Dell - Precision Mobile Workstation M4700
Dell - Precision Mobile Workstation M4800
Dell - Precision Mobile Workstation M6700
Dell - Precision Mobile Workstation M6800
Dell - XPS 13 (L321X)
Dell - XPS 13 (L322X)
Dell - XPS 13 Ultrabook (9333)
Gigabyte Technology - BRIX GB-BXi5-4200
Gigabyte Technology - BRIX Mini PC Core i7-4710HQ
HP-Compaq - 350 G1 Notebook
HP-Compaq - EliteBook Folio 9470m
HP-Compaq - EliteBook Revolve 810 G1 Tablet
HP-Compaq - EliteDesk 800 G1 Ultra-slim
HP-Compaq - Folio 13 Series
HP-Compaq - Thin Client t620 / t620 PLUS
HP-Compaq - ZBook 15 Mobile Workstation
Intel - D33217GKE Next Unit of Computing (NUC)
Intel - D34010WYK Next Unit of Computing (NUC)
Intel - D53427RKE (DC53427RKE) Next Unit of Computing (NUC)
Intel - D54250WYK Next Unit of Computing (NUC) Kit
Intel - D54250WYKH Next Unit of Computing (NUC) Kit
Intel - DC3217BY Next Unit of Computing (NUC) Kit
Intel - DC3217IYE Next Unit of Computing (NUC) Kit
Intel - DC53427HYE Next Unit of Computing (NUC) Kit
Intel - DCCP847DYE Next Unit of Computing (NUC) Kit
Lenovo - IdeaPad Y500
Lenovo - IdeaPad Yoga 13
Lenovo - ThinkCentre M93z
Lenovo - ThinkPad T430u
QMS - Series 9 Ultrabook NP900X4D
Toshiba - Portege Z30
Toshiba - Portege Z830

Warranty

3 Year Limited Warranty
