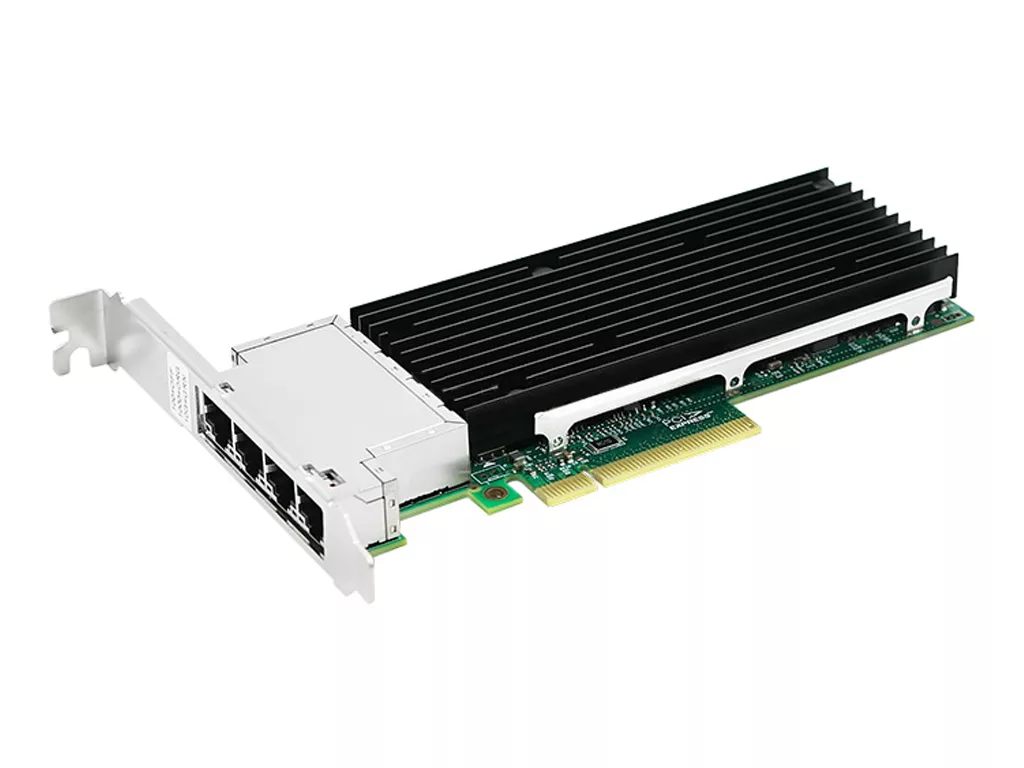

PCIE34RJ4510-AX
Category: PCIe 3.0 x8 10Gbs Copper Network Adapter
Description: Axiom 10Gbs Quad Port RJ45 PCIe 3.0 x8 NIC Card - PCIE34RJ4510-AX
OEM Part#: N/A

Features

Axiom's 10GbE Copper Network Adapters are the latest generation of high-performance PCIe 3.0 x8 Lane 10 Gigabit NIC Cards, based on the Intel XL710 controller. The server adapter simplifies migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).

Key Features
• Low cost, low power, 10GbE performance for the entire datacenter.
• New generation single, dual and quad -port 1OGBASE-T controller with integrated MAC and PHY
• Standard CAT6a cabling with RJ45 connectors.
• Supports NBASE-T technology (2.5 and 5.0 GbE over CAT 5e)
• Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10GbE.
• PCI Express - (PCIe) v3.0 with up to 8.0 GT/s
• Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Axiom PCIe 3.0 10Gbs network adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

*Part Number:* PCIE32RJ4510-AX
*OEM Compatibility:* Axiom®
*Bus Type:* PCIe v3.0 (8 GT/s)
*Bus Width:* x8
*Chipset:* Intel® Intel® XL710
*Data Protocol:* Ethernet
*Data Rate:* 100Mbps/1000Mbps/10Gbps
*External Connector:* RJ-45
*Media Type:* Copper
*Number of Ports:* 4
*Connection distance:* CAT6 up to 55m; CAT6A up to 100m
*Jumbo frames:* Up to 9.5 KB
*Network Virtualization:* VXLAN, MACinUDP, NVGRE, IPinGRE
*OS Compatibility:* Windows Server 2016(Core)/2012 R2(Core)/2012(Core)/2008 R2(Core), Windows 7/8/8.1/10, Linux Stable Kernel version 2.6.32/3.x/4.x or later, VMware ESX/ESXi 5.x/6.x
*LED Indicators:*
10Gbps: LINK LED green, Green ACT LED Blink
1Gbps: LINK LED Yellow, Green ACT LED Blink
100Mbps: Green ACT LED Blink
*Dimensions (H x W x D):* 167mm x 18mm x 70mm
*Weight:* 0.41lb
Warranty
3 Year Limited Warranty
