PCIE-2RJ4510-AX
Category: PCIe 2.0 x8 10Gbs Copper Network Adapter

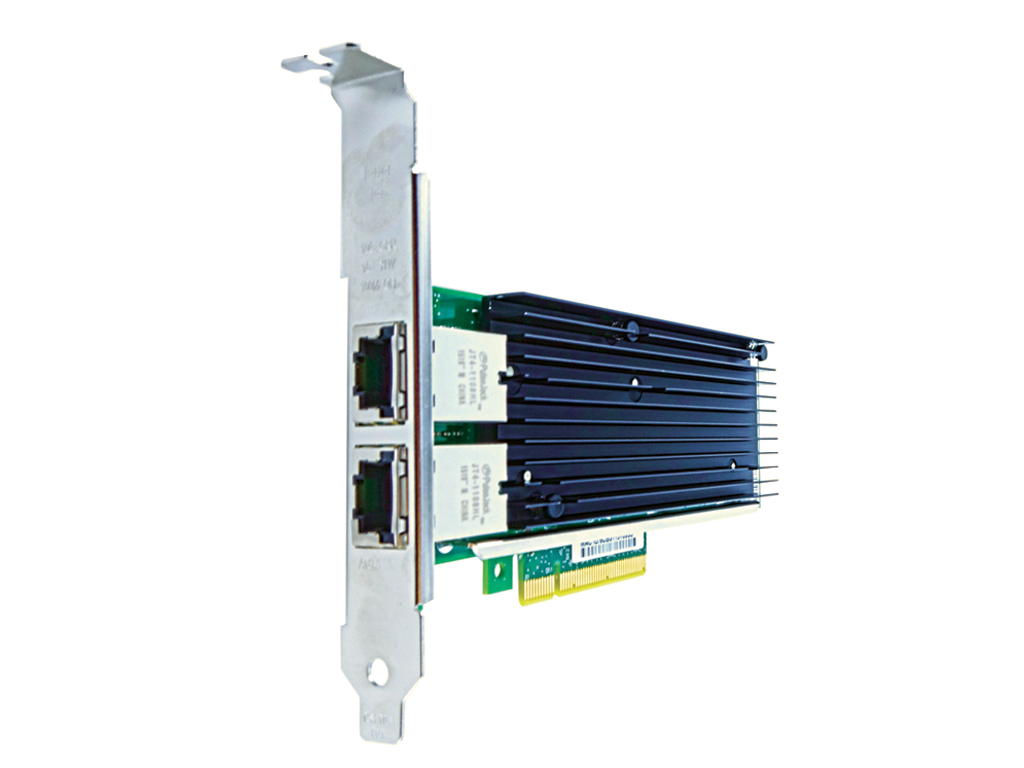

Description: Axiom 10Gbs Dual Port RJ45 PCIe x8 NIC Card - PCIE-2RJ4510-AX
Comparable to OEM #: N/A

Features

Axiom’s family of network server adapters provide a wide-range of solutions to boost network performance and improve IT flexibility. Available band-widths range from 100Mbs to 10Gbs on interfaces ranging from 32-Bit PCI to PCIe x8. Each adapter provides standard connector options from single port, dual port, quad ports in copper and/or fiber-based connections.
Axiom network interface cards accelerate applications with enterprise-proven connectivity. These solutions are available for designated branded OEM systems. Each Axiom network adapter is 100-percent tested to ensure long-term reliability and performance in high transaction and mission-critical applications.

* Optimized for virtualization.
* Maximizes I/O consolidation with high performance ports.
* Leverages and protects existing IT investments.
* Delivers cost reductions in operating expense and total cost expense.
* Provide connectivity and scalability required for enterprise environments.
* Deliver enterprise-class connectivity.
* Supports both data and storage I/O with an adapter that can integrate with your existing Fibre Channel and Ethernet networks, extending the value of your network investments.
* Achieve convergence - Run concurrent TCP/IP and storage (iSCSI or Fibre Channel) traffic over a single link.
* Includes Full Height and Half Height Mounting Brackets
Axiom 10Gbs network adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

*Part Number:* PCIE-2RJ4510-AX
*OEM Compatibility:* Axiom®
*Bus Type:* PCIe v2.0 (5 GT/s)
*Bus Width:* x8
*Chipset:* Intel® JLX540AT2
*Data Protocol:* Ethernet
*Data Rate:* 10Gbs
*External Connector:* RJ-45
*Media Type:* Copper
*Number of Ports:* 2
*Connection distance:* 100m
*OS Compatibility:* Windows 7 (32 & 64-bit), Windows 8 (32 & 64-bit), Windows 8.1 (32 & 64-bit), Windows Vista (32 & 64-bit), Windows Server 2003 (32 & 64-bit), Windows Server 2008 (32 & 64-bit), Windows Server 2008 R2 (32 & 64-bit), Windows Server 2012 (32 & 64-bit), Windows Server 2012 R2 (32 & 64-bit), Linux kernel 2.6.30 or greater (x86_64) (w/ SR-IOV support), FreeBSD 7.2 or later, Linux RHEL 5.6, Linux RHEL 6.x, Linux SLES 11 SP1, Linux SLES 10 SP4, DOS NDIS 2, DOS ODI, EFI 1.1, UEFI 2.1, Vmware ESX 4.02, Vmware ESX 4.02, VMware Workstation
*Dimensions (H x W x D):* 167mm x 18mm x 70mm
*Weight:* 0.41lb
Warranty
3 Year Limited Warranty
