MCP31-F1-S3S10-AX

Category: 100Mbs Fast Ethernet (POE) Media Converter

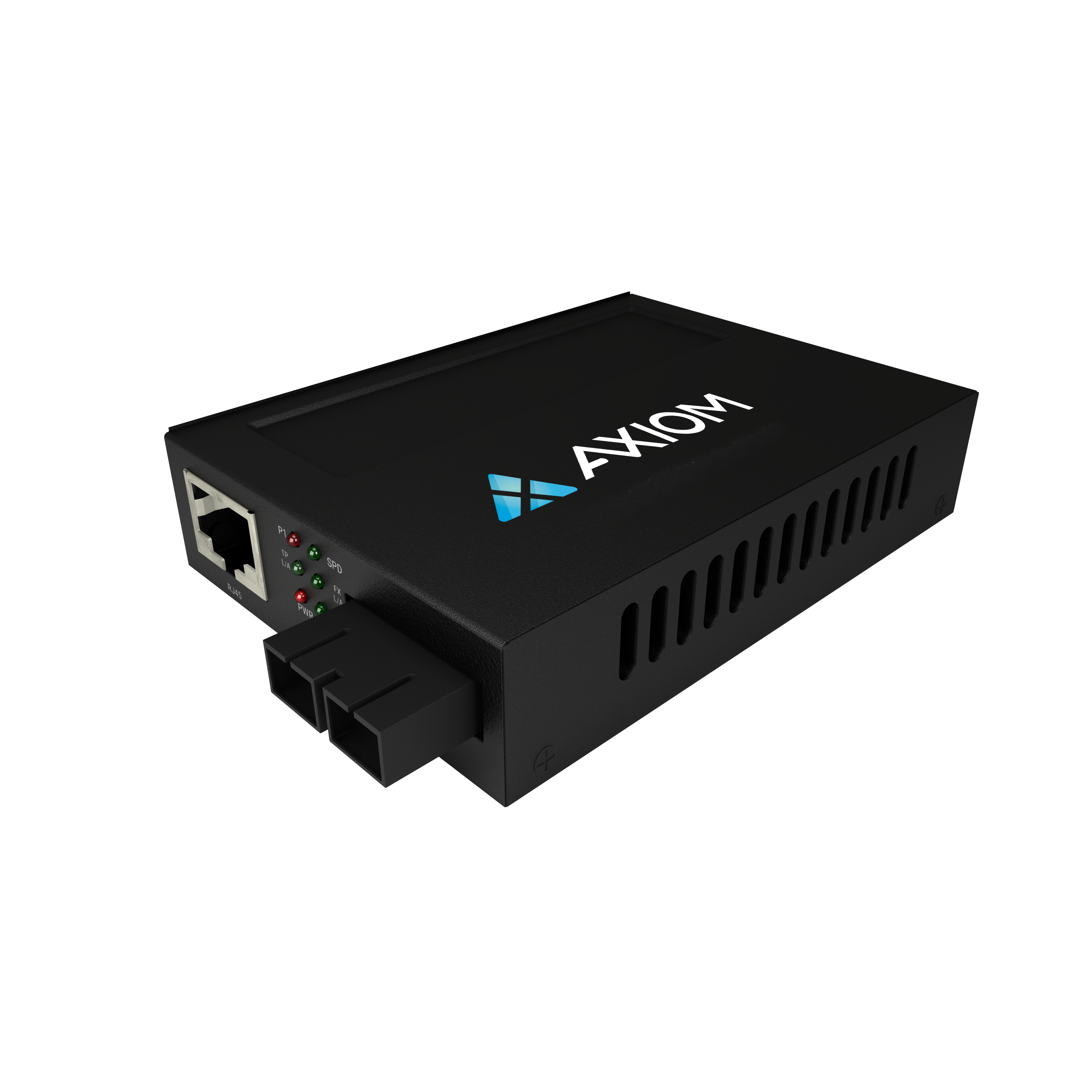

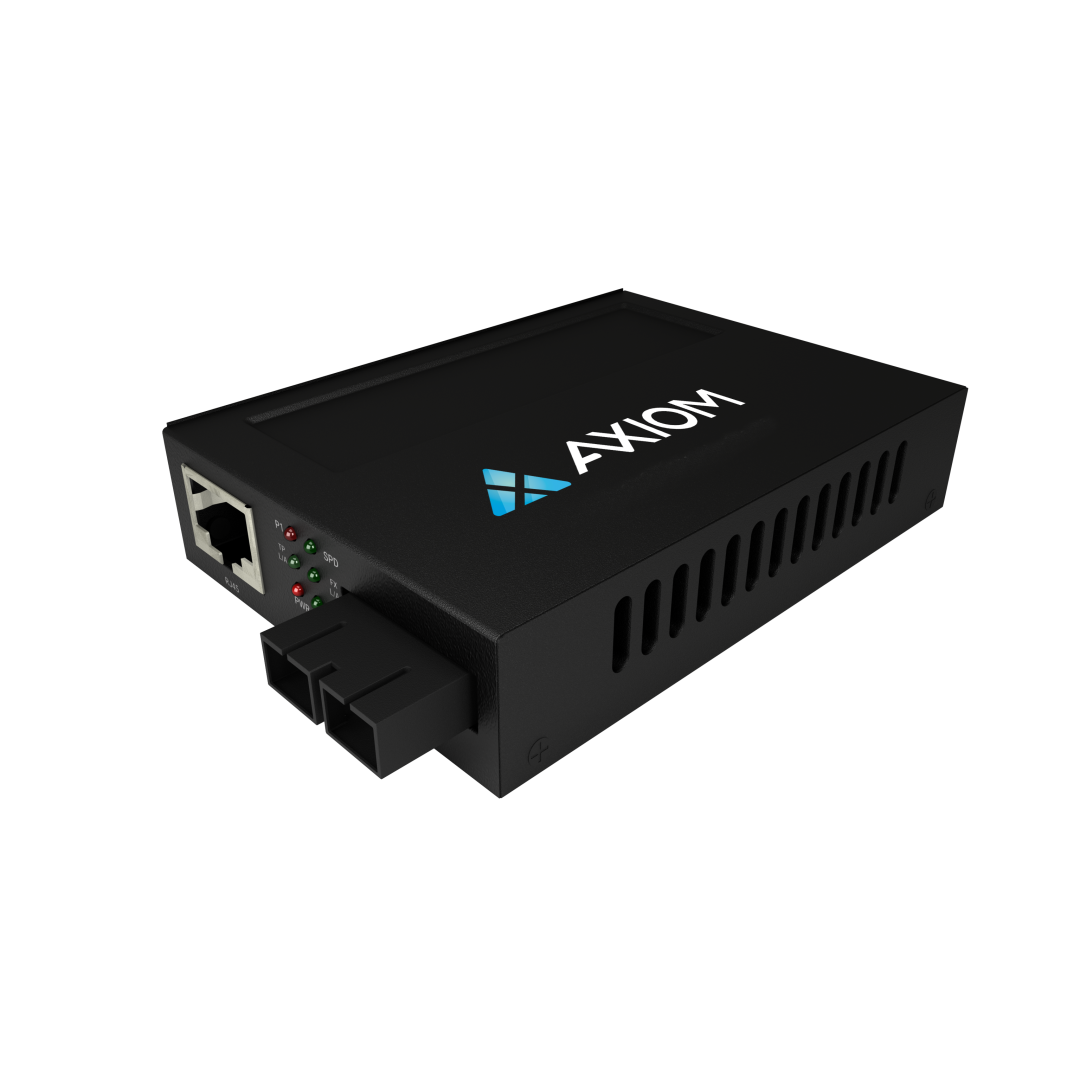

Description: Axiom 100Mbs POE RJ45 to 100BASE-LX Fiber Media Converter - SMF, SC, 10km,1310nm

Comparable to OEM #: N/A

Features

The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:
• 10/100Base-TX UTP to 100Base-FX fiber media conversion
• IEEE802.3af PoE PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support

Specifications

Port Information: 10/100BASE-T to 100BASE-FX Fiber (100Mbps)
Transmission Distance:
RJ45 Connection: Up to 100M on standard CAT5E/CAT6 UTP copper cable
LC Connection Distance/Wavelength:
• 100BASE-LX: 10km/1310nm SMF

Forwarding Mode:
• Store-and-forward or Pass-Through

Forwarding Frame Length:
• 2046Bytes or 9KBytes

LFP Mode: Supported

DIP Switches:
• DIP SW1: ENROM
• DIP SW2: FX100M
• DIP SW4: LFP
• DIP SW5/6: MODE

PoE Output: IEEE802.3af Power over Ethernet Standard
• Power Output: PoE 52v DC, max. 15.4 Watts
• PoE Power Supply Type: Mid-Span
• Power Pin Assignment 1/2(+), 3/6(-)
• PoE Power Budget: 15.4 Watts

Power Requirement:
• Operating Voltage: AC 100~240V
• Rated Current: 0.45/0.2A
• Power Consumption: Full-load<60W

Environmental:
• Operating Temperature: 0~50°C
• Storage Temperature: -10°C to +70°C
• Relative Humidity: 5%~95% (non-condensing)
• MTBF: 65,000h
• Enclosure: Metal
• Emissions: FCC Class A, CE Class A

Warranty

1 Year Limited Warranty
