Category: Mini 10Gbs Ethernet Media Converter

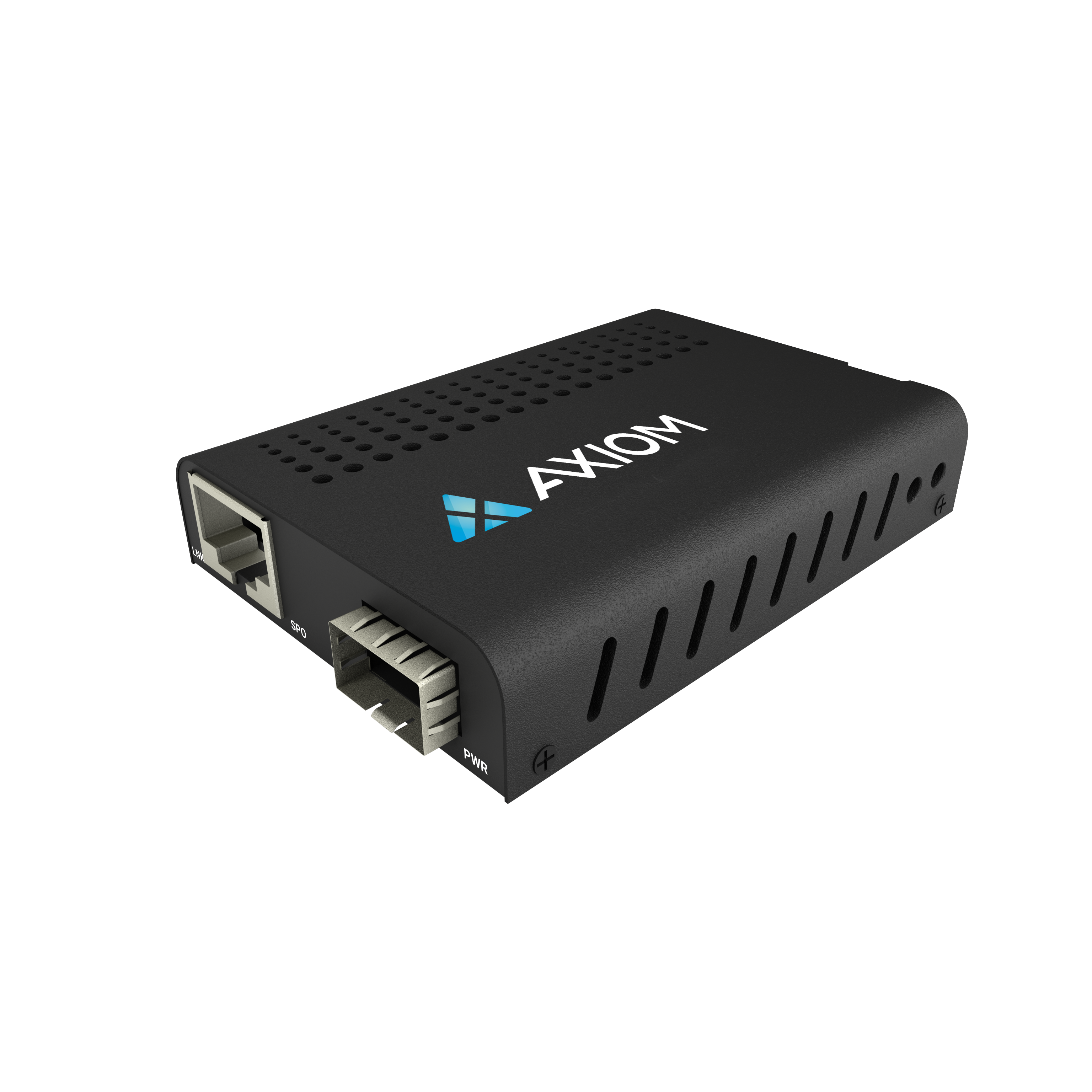

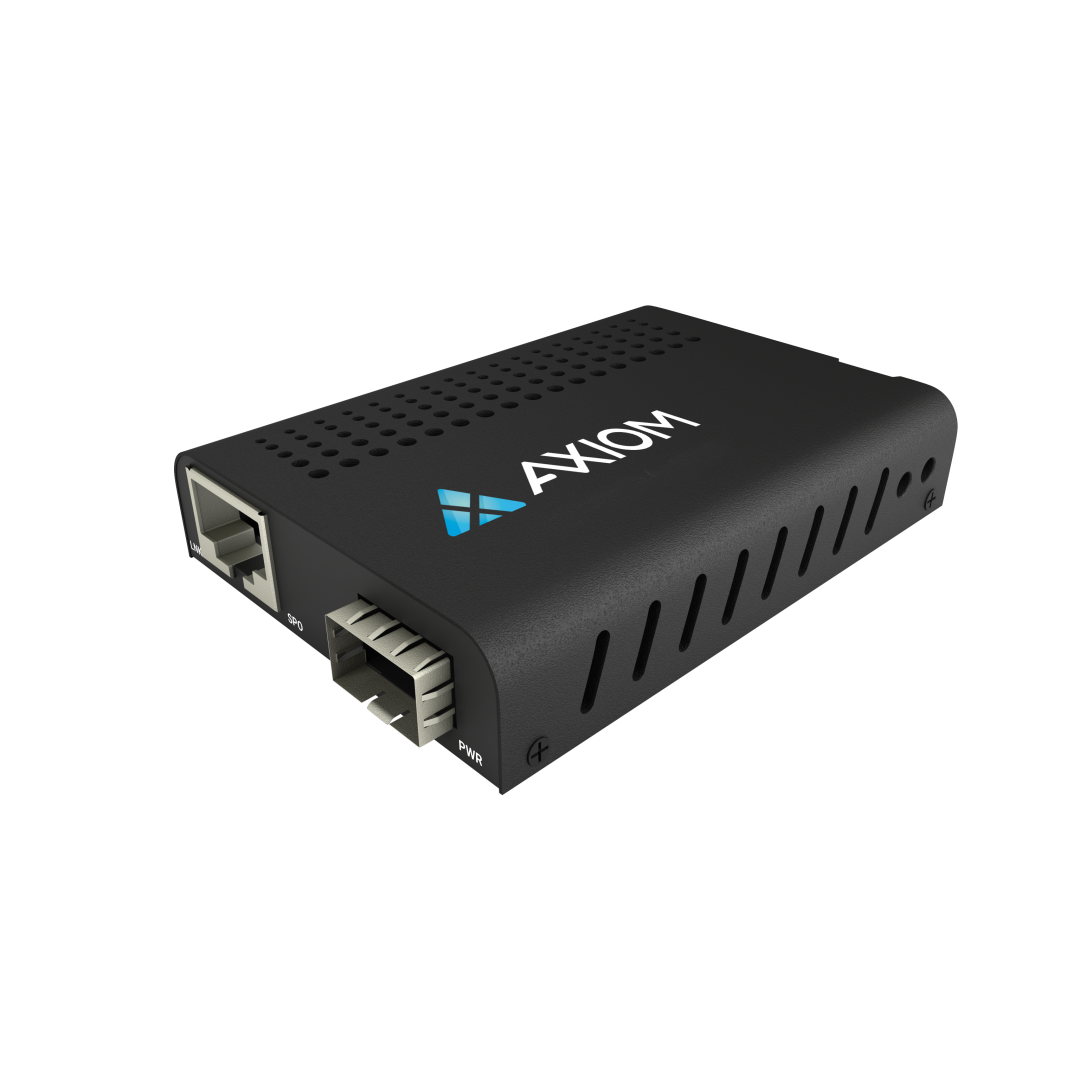

Description: Axiom Mini 10Gbs RJ45 to SFP+ Fiber Media Converter - Open SFP+ Port

Comparable to OEM #: N/A


The Axiom Mini Mini 10Gbs Ethernet Media Converter series, is a 10Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10GBASE-TX ports and 10GBase-FX fiber optic ports. Available with an open SFP port or pre-configured with an optical transceiver to fit your environment, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

• Unit and Port LEDs allow for quick status information
• Jumbo Frame Support
• Transparent transport and very low delay
• Support for ITUT prescribed DWDM/CWDM wavelength
• Loopback test function support
• Hot-Swappable into your existing network
• Support 1U Rack (12 channel) and standalone use
• Compact package size
• Easy installation


Transmission Distance:
RJ45 Connection: Up to 100M on standard CAT6A UTP copper cable
SFP+ Connection Distance/Wavelength (SFP+ not Included):
• 10GBASE-SR: 400m/850nm OM4 MMF
• 10GBASE-LR: 20km/1310nm SMF
• 10GBASE-ER: 40km/1550nm SMF
• 10GBASE-ZR: 80km/1550nm SMF

Forwarding Mode: Pass-Through
Forwarding Frame: 10K Bytes
LFP Mode: Supported
Connector: One UTP RJ-45 connector, one SFP+ LC Duplex Connector, one DC-inlet connector
Power Requirement : Operating Voltage DC 5~12V Rated Current: 0.1/0.24A
Power Consumption: Full-load<5W

Operating Temperature: 0~50° Storage Temperature: -10°~70°
Relative Humidity: 5%~95% (non-condensation)
MTBF: 50,000 h
Enclosure: Metal
Emissions: FCC Class A, CE Class A


1 Year Limited Warranty
