Category: Mini 1Gbs Ethernet Media Converter

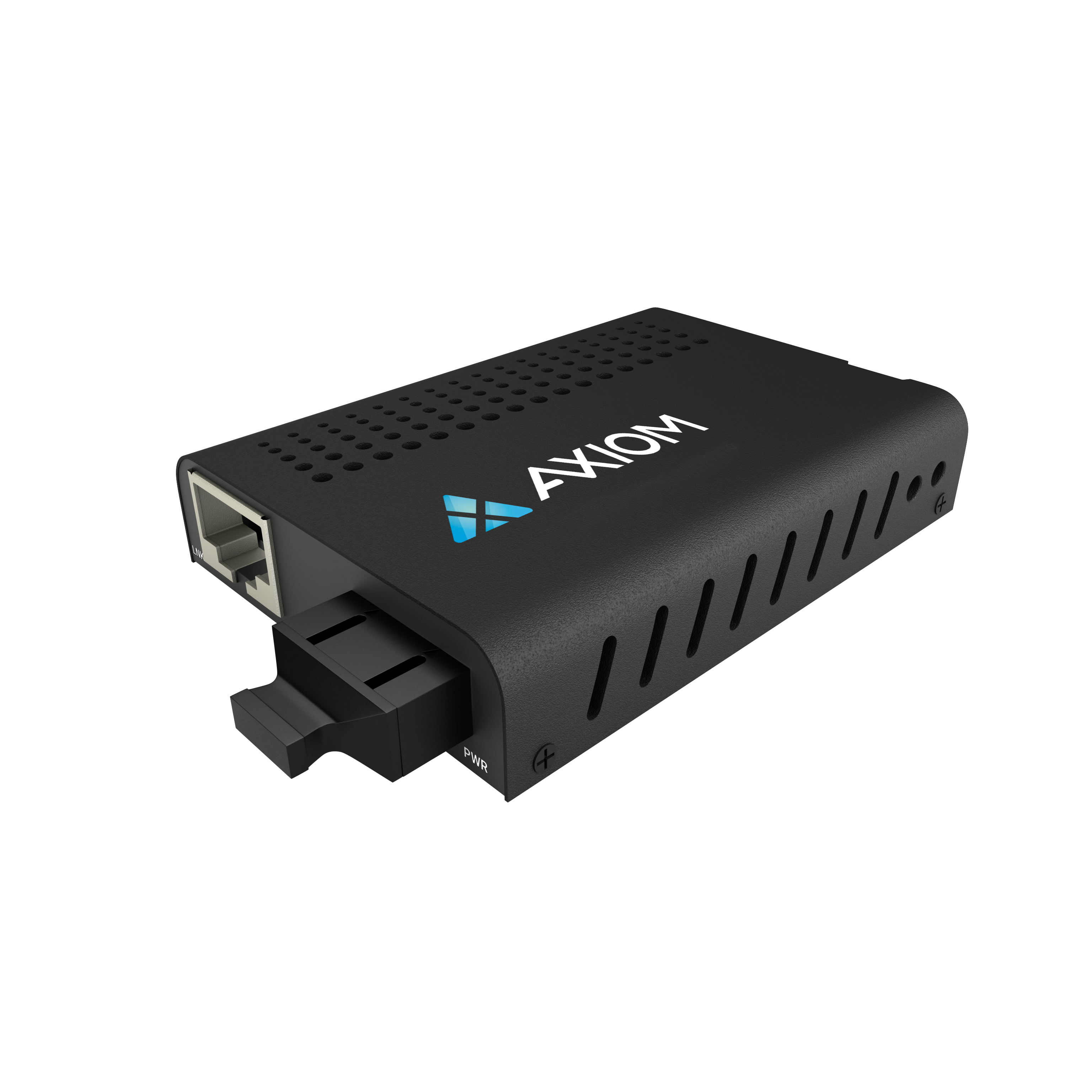

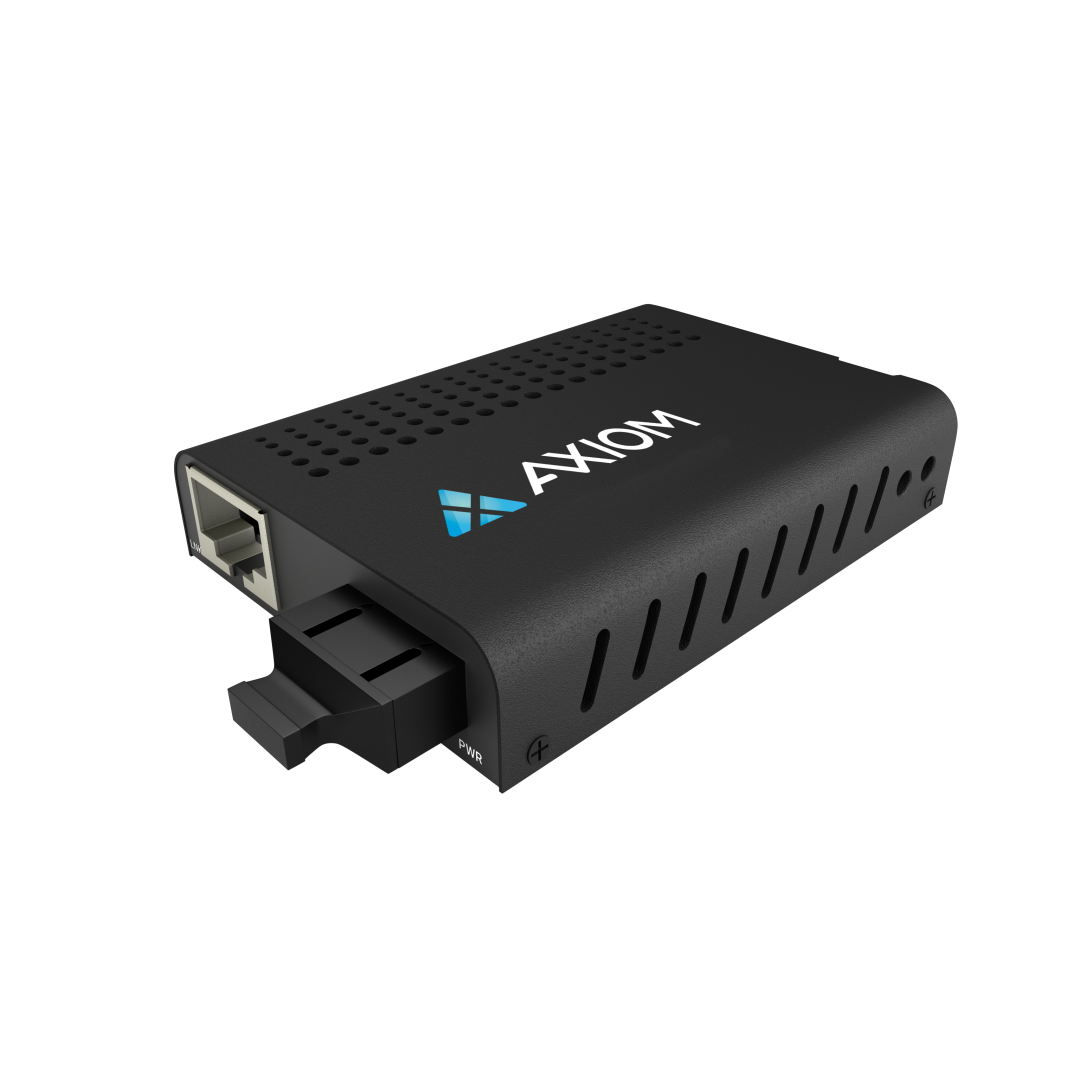

Description: Axiom Mini 1Gbs RJ45 to 1000BASE-SX Media Converter - MMF, SC, 2km, 1310nm

Comparable to OEM #: N/A


The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function


Transmission Distance:
RJ45 Connection: Up to 100M on standard CAT5E/CAT6 UTP copper cable
SC Connection Distance/Wavelength:
• 1000BASE-SX: 2km/1310nm MMF

Forwarding Mode: Store-and-forward
Forwarding Frame: 9K Bytes
LFP Mode: Supported
Connector: One UTP RJ-45 connector, one SC Duplex Connector, one DC-inlet connector
Operation mode: Full duplex or half duplex mode
Power Requirement : Operating Voltage DC 5~12V Rated Current: 0.5/0.25A
Power Consumption: Full-load<3W

Operating Temperature: 0~50° Storage Temperature: -10°~70°
Relative Humidity: 5%~95% (non-condensation)
MTBF: 50,000 h
Enclosure: Metal
Emissions: FCC Class A, CE Class A


1 Year Limited Warranty
