Category: Mini 100Mbs Fast Ethernet Media Converter

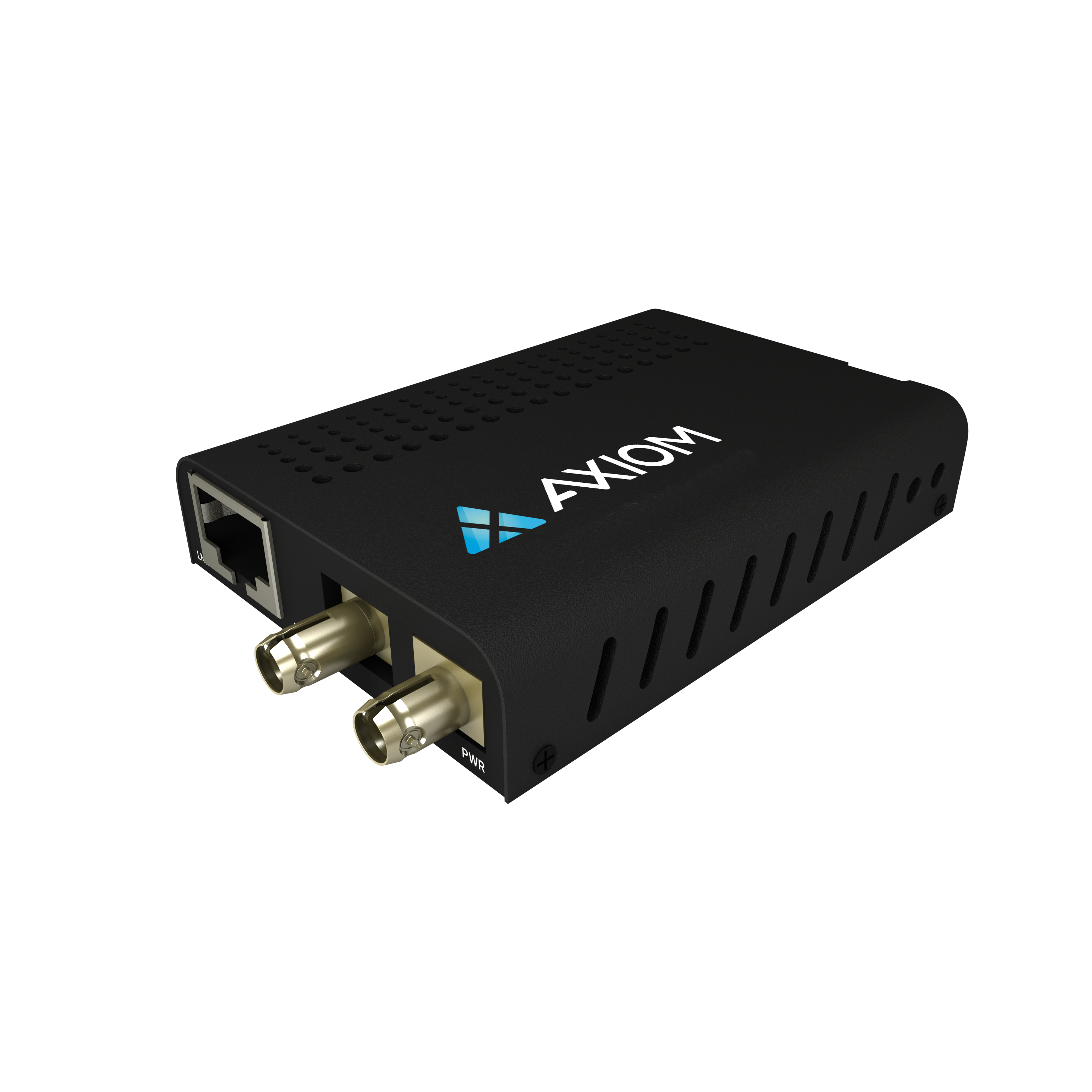

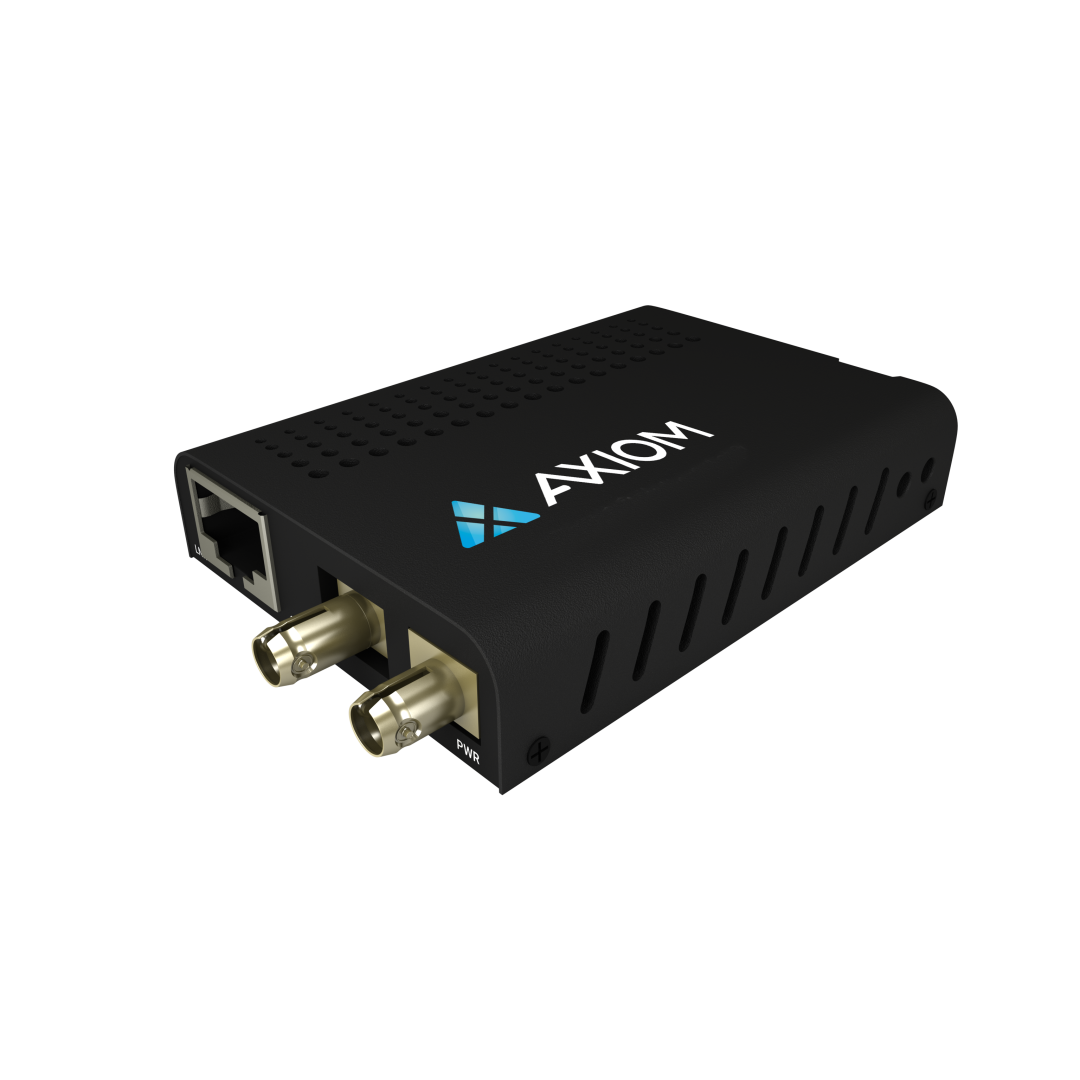

Description: Axiom Mini 100Mbs RJ45 to 100BASE-FX Media Converter - MMF, ST, 2km, 1310nm

Comparable to OEM #: N/A


The Axiom Mini 10/100Base-TX to 100Base-FX Media Converter Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100Base-TX ports and 100Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100Base-TX UTP to 100Base-FX fiber media convertion
• Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support
• Compact package size


Transmission Distance:
RJ45 Connection: Up to 100M on standard CAT5E/CAT6 UTP copper cable
ST Connection Distance/Wavelength:
• 100BASE-FX: 2km/1310nm Multimode Fiber

Forwarding Mode: Store-and-forward
Forwarding Frame: 2046 Bytes
LFP Mode: Supported
Connector: One UTP RJ-45 connector, one ST Duplex Connector, one DC-inlet connector
Operation mode: Full duplex or half duplex mode
Power Requirement : Operating Voltage DC 5~12V
Rated Current: 0.5/0.25A
Power Consumption: Full-load<3W

DIP Switches:
DIP-1: Copper forced mode/auto-negotiation mode
DIP-2: Copper speed 100Mbps/1000Mbps
DIP-4: LFP mode

Operating Temperature: 0°C 50°C
Storage Temperature: -10°C 70°C
Relative Humidity: 5%~95% (non-condensation)
MTBF: 65,000 h
Enclosure: Metal
Emissions: FCC Class A, CE Class A


1 Year Limited Warranty
