C8SBSFTP-K50-AX
Category: CAT8 Shielded Patch Cables Snagless Boots

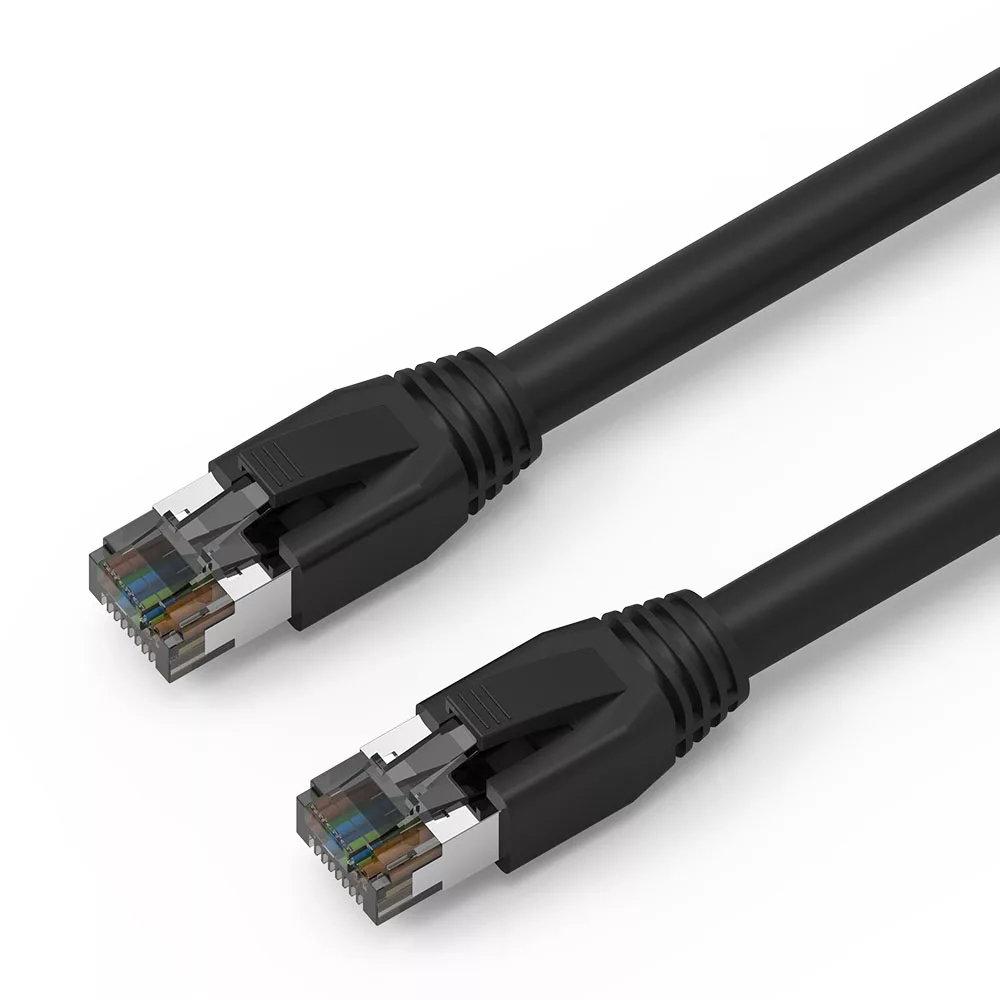

Description: Axiom 50FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Black)
Comparable to OEM #: N/A

Features

Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

• Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
• Shielding: Each pair Foil shielded / 4 Pair Braid Shield
• Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
• Provides EMI/RFI shielding in Ethernet networks
• Wiring: T568B standard
• Jacket: PVC
• Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
• Snagless Rubber Boots with Strain Relief
• Max Bandwidth: Up to 2,000 MHz (2GHz)
• Max data rate: Up to 40Gps
• Jacket Diameter: 7.9 +/- 0.20mm
• Min Avg. jacket Thickness: 0.60 +/- 0.1mm
• Backward Compatible with with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
• Available in all lengths from 6-Inch to 50ft
• Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
Features
Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you’re upgrading components or installing a brand new network, you’ll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.
Warranty
Limited Lifetime Warranty
