C6ABFSB-P70-AX
Category: CAT6A BENDnFLEX Ultra-Thin Patch Cable

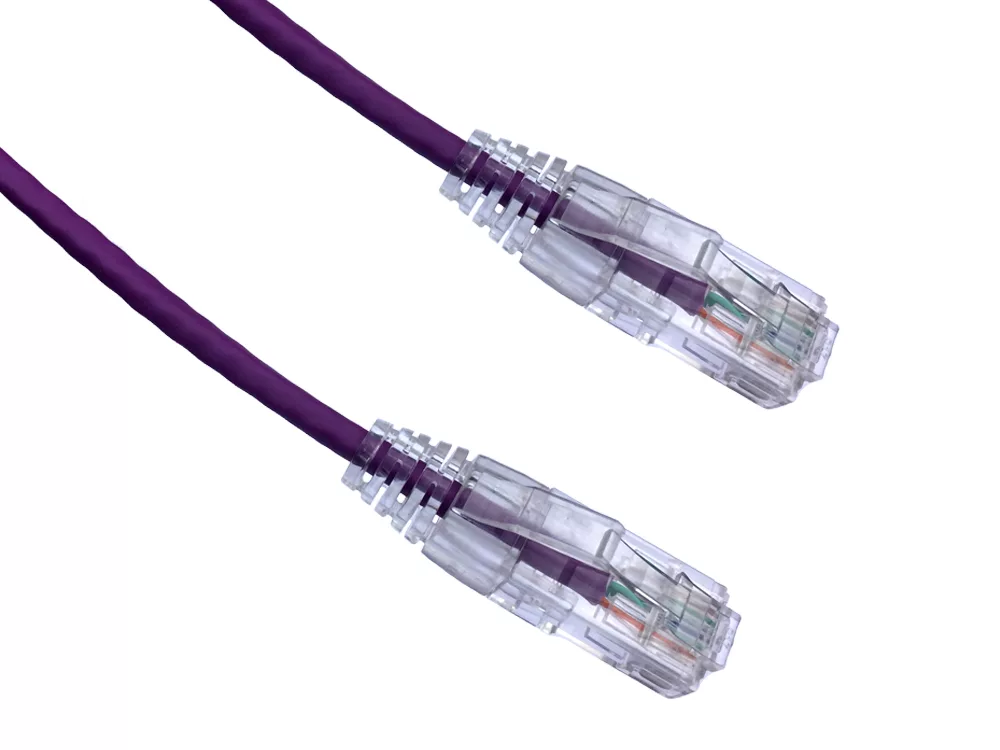

Description: Axiom 70FT CAT6A BENDnFLEX Ultra-Thin Snagless Patch Cable 650mhz (Purple)

Features

Axiom’s BENDnFLEX™ product line combines high-performance CAT6A copper cables with an ultra thin, bend-insensitive casing. Available in pre-terminated, standard lengths the BENDnFLEX™ product line provides a high-performance 10Gbps CAT6A cable that can sustain large capacity data rates even under acute bend environments. Empowering efficient connectivity while extending current IT infrastructure across a variety of technology platforms, Axiom BENDnFLEX™ simplifies installation and enables more uptime with less troubleshooting.

• Space-saving design provides a 38% reduction in diameter compared to standard CAT6A cables
• Reduced diameter allows increased air flow which in turn increases energy efficiency and cost savings
• Small bend radius allows for tight twists and turns superior to standard CAT6A cables
• Minimizes near-end crosstalk (NEXT) levels
• Clear snagless connector designed for easy insertion and removal and prevents unwanted snags
• Ideal solution for high density datacenter applications
• ROHS Compliant
Features
*Conductor Specs*
• Foil shielded Twisted Pair (F/UTP): Orange, White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown
• Conductor: 28AWG Stranded Tinned Copper
• Insulation: HD-PE .008" NOM. wall thickness
• Shield: 100% Foil Shielding with 28 AWG stranded tinned copper drain wire

*Connector Specs*
• Gender: Male Plugs
• Connector Type: 8P8C – RJ45
• Contacts: 50u Gold Plated

*Cable Specs*
• PVC Jacket
• OD: 4.85mm +/- 0.15 mm
• Wiring Scheme: T568B
• Temperature Rating: up to 75ºC
• NEC (UL) Type CMR Approved
• CEC C(UL) Type CMR Approved
• Voltage Rating, Max: 300V
Warranty
Limited Lifetime Warranty
