Category: 3.5" SATA 6Gb/s NAS Bare Drive 7200rpm

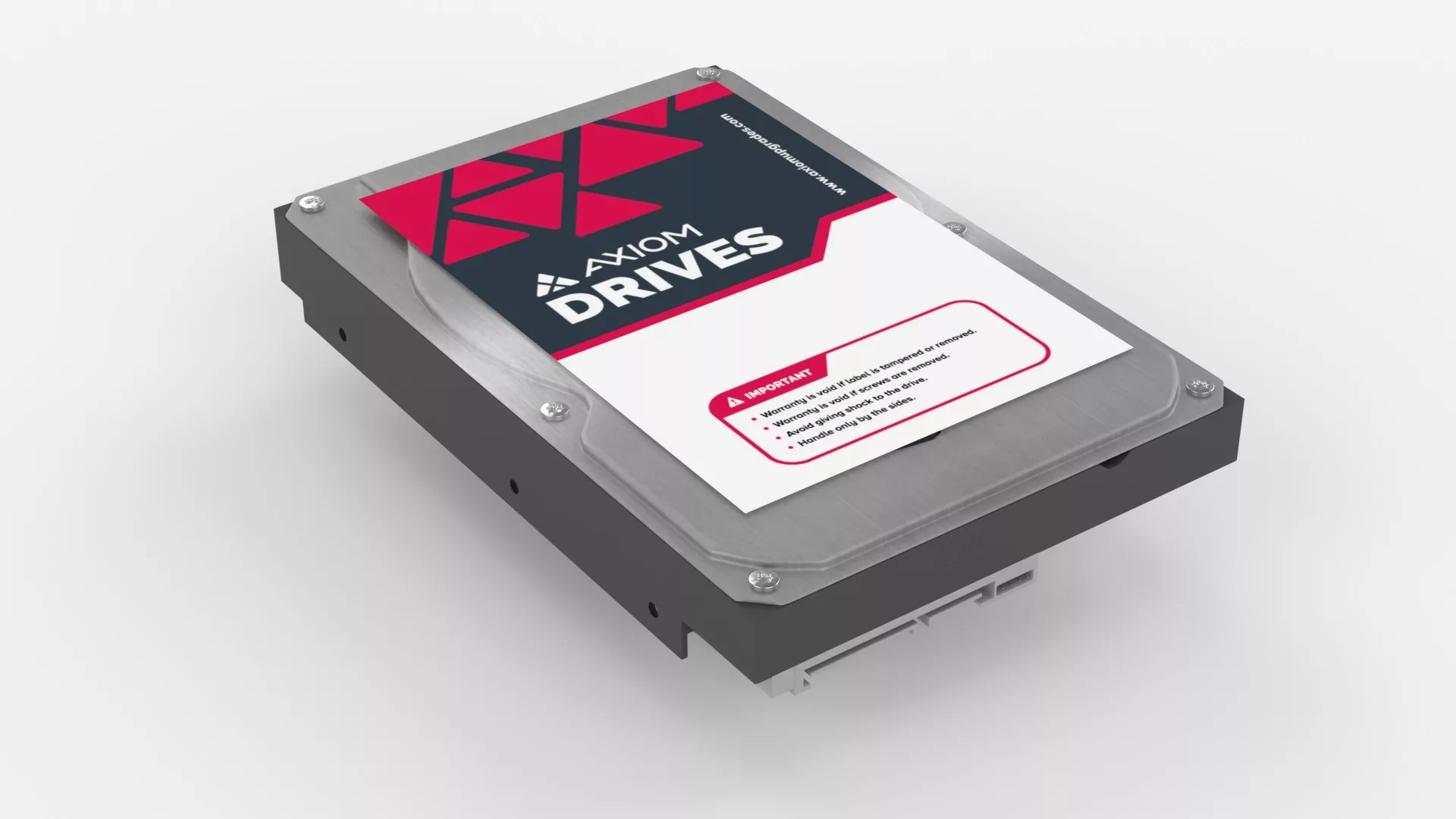

Description: Axiom 12TB 6Gb/s SATA 7.2K RPM LFF 3.5-inch NAS Bare Hard Drive

Comparable to OEM #: N/A

Capacity: 12TB


Axiom's NAS Storage drives are leading the industry with a range of high capacity NAS Specific drive options. These drives feature enterprise class reliability with the power and performance efficiencies that make them ideal for capacity optimized, 3.5" SATA 6Gb/s Enterprise Hot-Swap Drive 7200rpm.

* Features a wide range of capacities up to 10TB
* Availability 3.5-inch form factors
* Ranges of speeds from 5,400rpm to 7,200rpm
* 6Gb/s SATA interface
* Larger drive cache allows much faster access to data on the platters within the hard drive
* Reduces design and support costs by building a solid enterprise storage foundation
* Offers traditional form factors with enhanced rotational vibration tolerance and high data integrity for enterprise class reliability in a cost effective drive
* Delivers proven reliability, with a higher MTBF than standard grade drives
* Fully tested for drive speed and quality
* Meets or exceeds original manufacturer's specifications
* Free unlimited tech support


Part Number: AXHD12T7235A34N
Interface: 6Gb/s SATA
Capacity: 12TB
Form Factor: 3.5-inch
Advanced Format: Yes
RoHS Compliant: Yes

Interface Transfer Rate (max)
Buffer to Host: 6 Gb/s
Host to/from drive (sustained): 210 MB/s
Cache (MB): 256
Performance Class: 7200 RPM Class

*Reliability/Data Integrity*
Load/Unload Cycles: 600,000
Non-recoverable read errors per bits read <10 in 10^15
Power-On Hours: 8760
MTBF (hours): 1,000,000
Workload Rate (TB/yr): 300

*Power Management*
12VDC-/+10% (A, peak): 1.8
Average power requirements (W); 7.8W
Standby Mode/Sleep Mode, Typical (W): 0.8/0.8
Voltage Tolerance, Inc. Noise (5V): ±5%
Voltage Tolerance, Inc. Noise (12V): ±10%

Operating (ambient, min °C): 5
Operating (drive case, max °C): 70
Nonoperating (ambient, min °C): -40
Nonoperating (ambient, max °C): 70
Shock, Operating/Nonoperating: 2ms (max): 70Gs/250Gs
Idle (typical): 2.8bels
Operating (typical): 3.2bels

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes.Total accessible capacity varies depending on operating environment.
Specs based on Seagate P/N: ST12000VN0007 and are subject to change without notification.

Compatible Systems

Synology - RackStation RS3618xs


3 Year Limited Warranty
