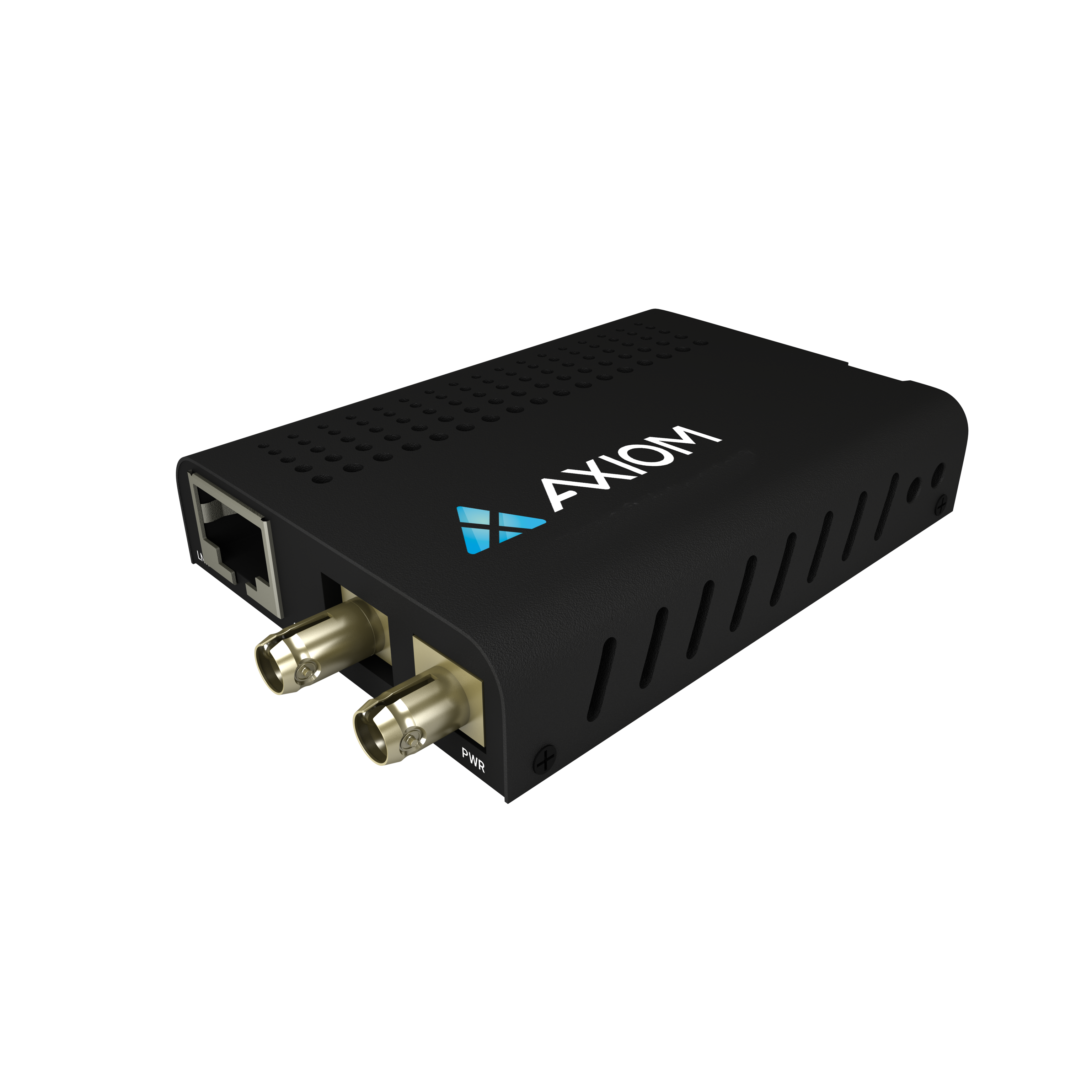

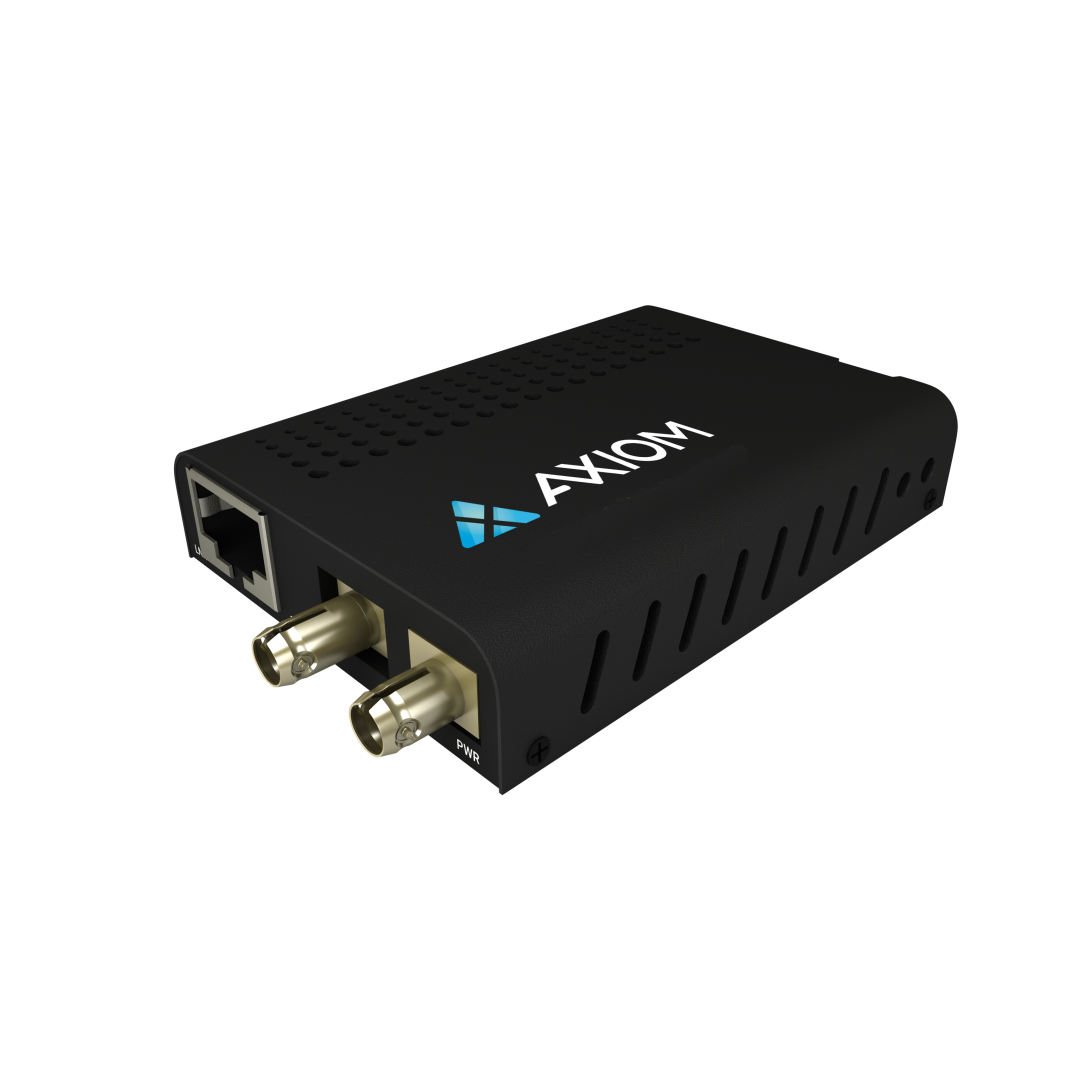

TAA Mini 1Gbs RJ45 to 1000BASE-ZX Media Converter - SMF, ST, 80km, 1550nm

Part Number: AXG99295

Category: Mini 1Gbs Ethernet Media Converter

Description: TAA Mini 1Gbs RJ45 to 1000BASE-ZX Media Converter - SMF, ST, 80km, 1550nm

Features

The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function

Specifications

Interface
• One 10/100/1000BaseT(X) Ethernet TP Port
• One Duplex ST connection / 1000Base-ZX(non-removable)

System Performance
• Packet Buffer - 384Kb
• MAC Address Table Size - 1K
• Jumbo Frame - 16KB

Mechanical
• Transmision Media
- 10/100/ 1000BaseT Cat. 5, 5E, 6 UTP/STP, up to 100m
- 1000BaseSX: 62.5/125µm Multi Mode Fiber optic cable up to 220m, 50/125µm Multi Mode Fiber optic cable, up to 80km
- 1000BaseLX: 9/125µm Single Mode Fiber optic cable

Power Input: 5-12Vdc
Power Input Connector: DC Jack(F2.5mm)
Max. System Power Consumption: 2 watt
LED: Power, Speed, Link/Act
DIP Switch: One DIP switch for enable/disable LFP Function

Operating Temperature: 0~50°C
Storage Temperature: -20~80°C
Operating Humidity: 10~90% (non-condensing)

Dimension (W x H x D): 74 x 22 x 102mm

Standards
• IEEE 802.3 - 10baseT
• IEEE 802.3u - 100BaseTX
• IEEE 802.3ab - 1000BaseT
• IEEE 802.3z 1000BaseSX/LX
• IEEE 802.3x - Flow Control

Warranty

3 Year Limited Warranty
