AXG99087
Category: C565e Series Mobile SSD

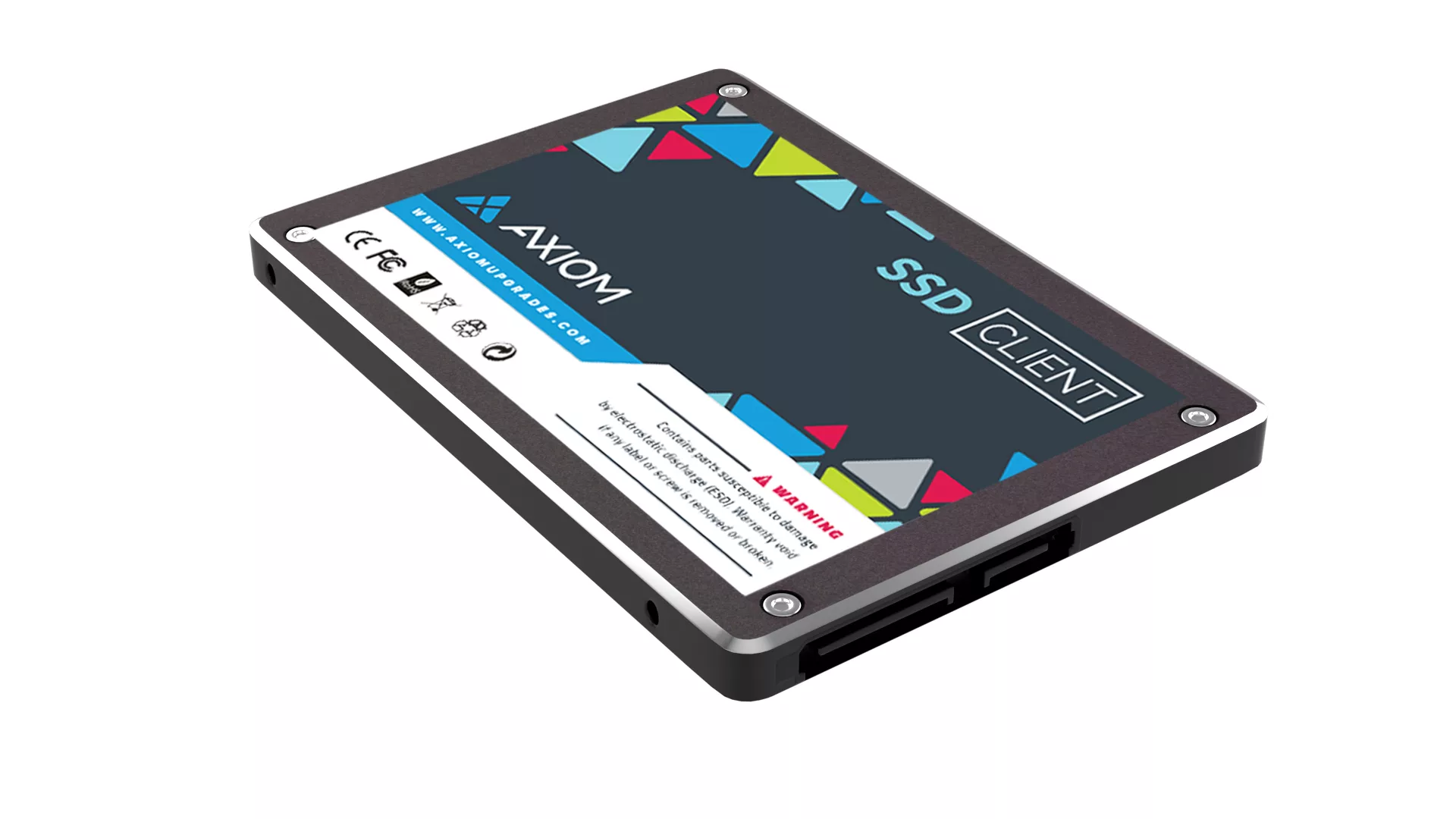

Description: 500GB C565e Series Mobile SSD 6Gb/s SATA-III 3D TLC - TAA Compliant
Capacity: 500GB

Features

The Axiom C565e Series SSD features high quality 3D TLC NAND flash and the security features of OPAL 2.0/256-bit AES Encryption these SSDs are loaded with enhancements to promote a secure, high performing and reliable computing environment.

The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are realized when upgrading systems to an Axiom SSD. External DRAM and SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments. Includes 2.5mm spacer adapter to fit most notebook applications that use a 7mm or 9.5mm drive bay.

Fast Performance
• Highest read and write speeds in its class
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate

Secure
• OPAL 2.0 Compliant
• 256-bit AES compliant Data Encryption

Reliable
• TRIM, Wear Leveling, StaticDataRefresh and LDPC ECC functions optimize data processing efficiency
• S.M.A.R.T. and a built-in temperature sensor assist with monitoring drive health
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs

Reduced Power Requirements
• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD

Improved Operation
• Noise and vibration free
• Virtually no heat emissions
Capacity
• 500GB

Features
• Silicon Motion SM2258 controller
• SLC caching accelerates burst performance
• Direct-to-TLC mode enhances sustained write performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• TRIM command support (OS dependent)
• S.M.A.R.T. support
• LDPC hard and soft decode ECC
• DEVSLP support
• Internal flash RAID-like parity scheme provides an additional layer of error correction
• Field-upgradeable firmware
• SATA 3.1 Compliant SATA 6Gb/s – backwards compatible with SATA 3Gb/s and 1.5Gb/s
• ATA/ATAPI-8-ACS3 command set compliant
• Industry-standard 512 byte sector support
• Temperature sensor
• Native Command Queuing (NCQ) support with 32 command queue depth
• RoHS-compliant package
• 3D TLC NAND
• DRAM support

Performance
• Sequential Read: Up to 565MB/s
• Sequential Write: Up to 530MB/s
• Random Read: Up to 100K IOPS (4K block size)
• Random Write: Up to 91K IOPS (4K block size)

Endurance
• TBW: Up to 148TB
• DWPD (3yr): 0.27

Security
• OPAL 2.0 Compliant
• 256-bit AES compliant Data Encryption
• User selectable ATA password support
• Secure Erase support

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read

Electrical
• +5VDC (±5%) power supply
• Power Consumption: up to 2.1W (Active), 0.09W (Idle)

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction proced
Warranty
3 Year Limited Warranty
