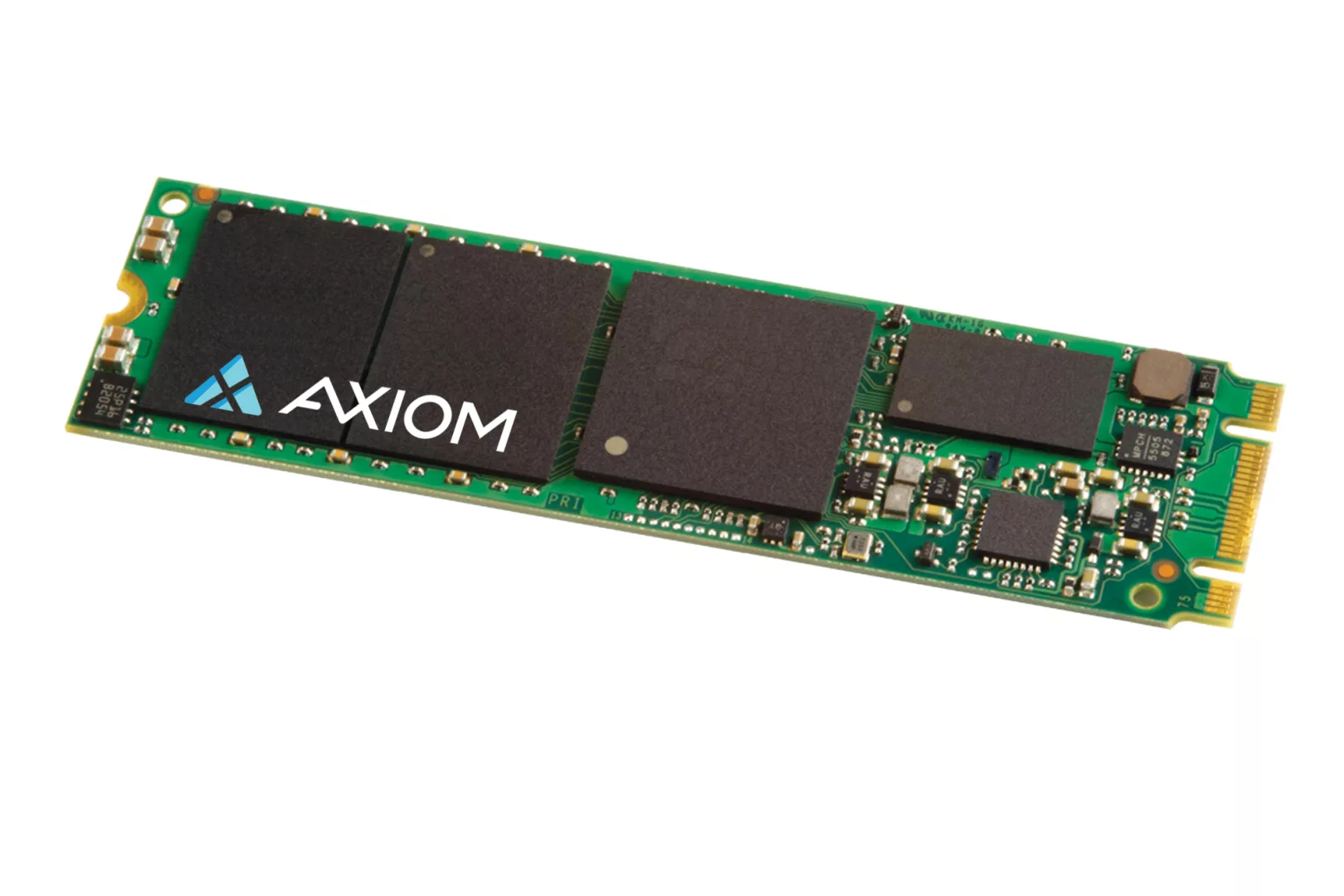

AXG97592
Category: C565n Series M.2 SSD
Description: 480GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III - TAA Compliant
Capacity: 480GB

Features

The Axiom C565n Series M.2 SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.

Providing an industry-leading bandwidth of more than 565MB/sec transfers, the Axiom C565n Series M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 86,000 IOPS.

A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.

Reduced Power Requirements
• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD

Fast Performance
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate

Reliable
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs

Improved Operation
• Noise and vibration free
• Virtually no heat emissions
Capacity
• 480GB

Features
• Silicon Motion SM2258 controller
• SATA 3.1 Compliant SATA 6Gb/s – backwards compatible with SATA 3Gb/s and 1.5Gb/s
• ATA/ATAPI-8-ACS3 command set compliant
• Industry-standard 512 byte sector support
• SLC caching accelerates burst performance
• DTT mode enhances sustained write performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• TRIM command support (OS dependent)
• S.M.A.R.T. support
• LDPC hard and soft decode ECC
• DEVSLP support
• Internal flash RAID-like parity scheme
• Field-upgradeable firmware
• Temperature sensor
• Native Command Queuing (NCQ) support
• DRAM support

Performance
• Sequential Read: Up to 565MB/s
• Sequential Write: Up to 525MB/s
• Random Read: Up to 86K IOPS (4K block size)
• Random Write: Up to 80K IOPS (4K block size)

Endurance
• TBW: Up to 148TB
• DWPD (3yr): 0.27

Security
• User selectable ATA password support
• Secure Erase support

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 2.1W (Active), 0.09W (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction procedure.
Warranty
3 Year Limited Warranty
