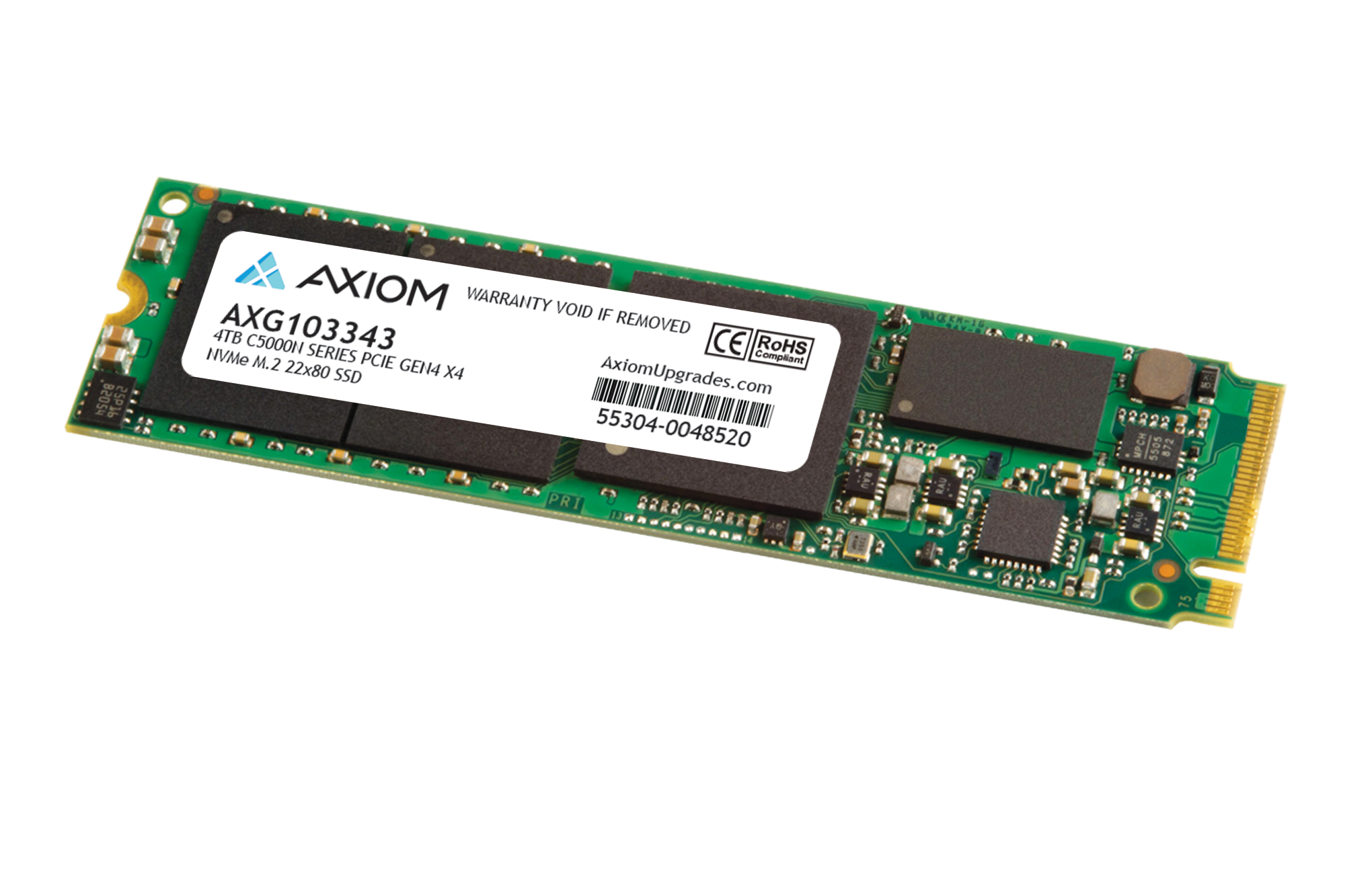

4TB C5000n Series PCIe Gen4 x4 NVMe M.2 22x80 SSD - 3D NAND - TAA Compliant

Part Number: AXG103343

Category: C5000n PCIe 4.0 NVMe M.2 SSD

Description: 4TB C5000n Series PCIe Gen4 x4 NVMe M.2 22x80 SSD - 3D NAND - TAA Compliant

Features

The Axiom High Speed C5000n Series features the new PCIe 4.0 controller and has the capability to deliver blazing speeds up to 5,020 MB/s for sequential read, and up to 4,585 MB/s sequential write. The PCIe 4.0 SSDs is up to 40% faster in read performance than previous PCIe 3.0 SSDs. The C5000n takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 512GB, 1TB, 2TB and 4TB capacities.

Key Features & Benefits
• Latest Generation 3D NAND Flash : Higher capacity, durability, and power efficiency
• NVMe protocol 2.0 compliant
• PCIe Gen4 x4 lane interface
• Maxio Tech MAP1608 controller
• SLC caching accelerates burst performance
• S.M.A.R.T. support

Specifications

Capacity
• 4TB

Features
• Maxio Tech MAP1608
• SLC caching accelerates burst performance
• Global wear leveling evens program/erase counts to
extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free
space management
• Host Memory Buffer (HMB) support (OS dependent)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe revision 4.0 compliant
• NVMe protocol 2.0 compliant
• PCIe Gen4x4
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D NAND

Performance
• Sequential Read: Up to 5020MB/s
• Sequential Write: Up to 4585MB/s
• Random Read: Up to 600K IOPS (4K block size)
• Random Write: Up to 650K IOPS (4K block size)

Endurance
• TBW: 2300
• DWPD: .51 (3y)

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 2.82W (Active), 0.73W
(Idle)
• M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb

Environmental
• Operating temperature:
o 0-70°C Commercial Temp
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.

Warranty

3 Year Limited Warranty
