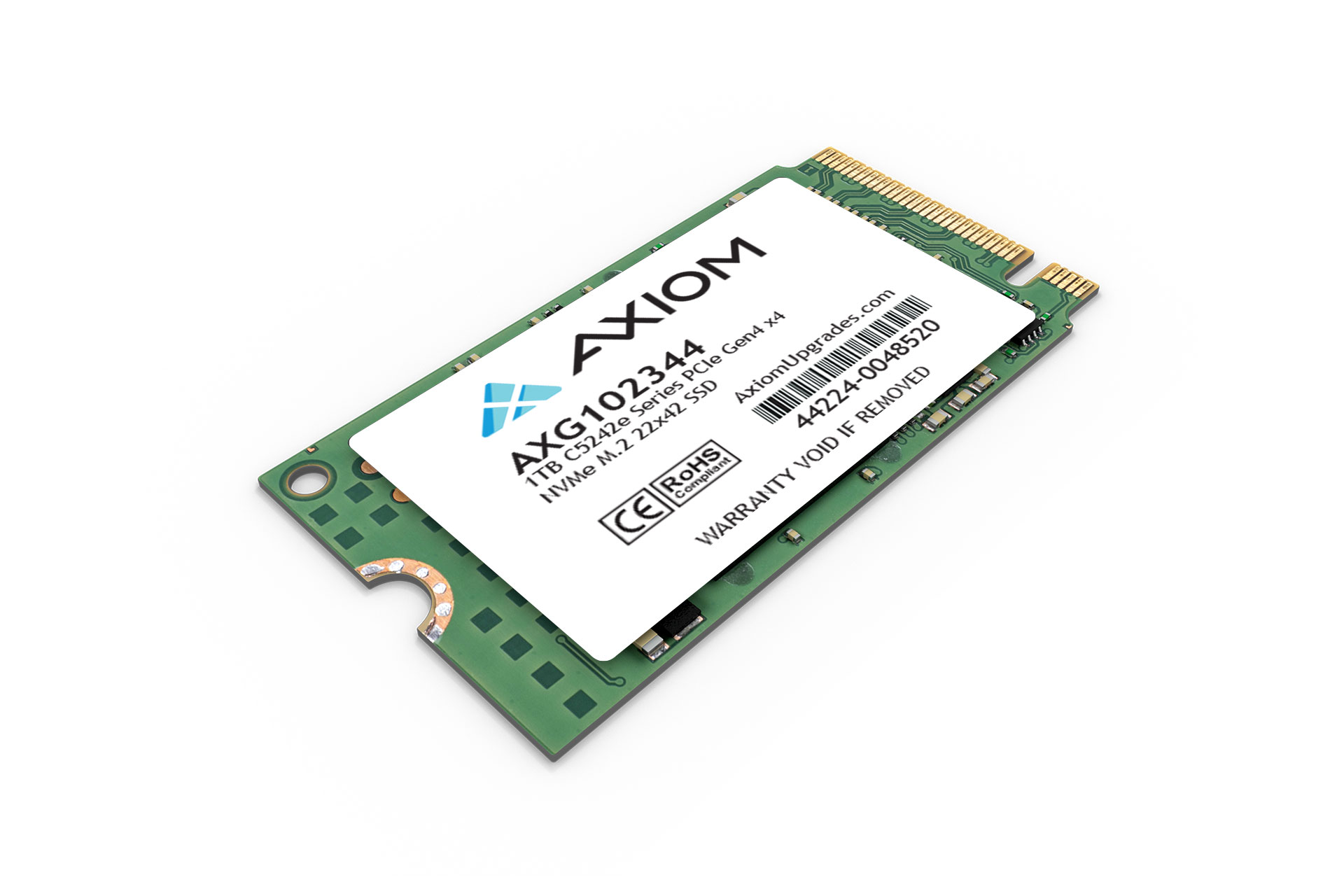

* Product representation may vary from image shown

1TB C5242e Series PCIe Gen4 x4 NVMe M.2 22x42 SSD - 3D NAND - TAA Compliant

Part Number: AXG102344

Category: C5242e PCIe 4.0 NVMe M.2 SSD

Description: 1TB C5242e Series PCIe Gen4 x4 NVMe M.2 22x42 SSD - 3D NAND - TAA Compliant

Features

The Axiom High Speed C5242e Series features the latest PCIe Gen4 x4 controller combined with and the TCG OPAL 2.0 data encryption to deliver secure data at blazing speeds of up to 5,200/4,775MB per second read/write. The PCIe Gen4 x4 SSDs is up to 40% faster in read performance than previous PCIe Gen3 SSDs. The C5242e takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact 22x42mm M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 250GB, 500GB, 1TB and 2TB capacities.

Key Features & Benefits
• Latest Generation 3D NAND Flash : Higher capacity, durability, and power efficiency
• OPAL 2.0 data encryption
• NVMe protocol 1.4 compliant
• PCIe Gen4 x4 lane interface
• Dynamic SLC caching accelerates burst performance
• S.M.A.R.T. support
• Compact 22x42mm M.2 design

Specifications Warranty

Specifications

Capacity
• 1TB

Features
• Innogrit IG5220 controller
• SLC caching accelerates burst performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate support
• Host Memory Buffer (HMB) support (OS dependent)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe revision 4.0 compliant
• NVMe protocol 1.4 compliant
• PCIe Gen4x4
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D NAND

Performance
• Sequential Read: Up to 5200MB/s
• Sequential Write: Up to 4370MB/s
• Random Read: Up to 195K IOPS (4K block size)
• Random Write: Up to 289K IOPS (4K block size)

Endurance
• TBW: 500TB
• DWPD: .446 (3y)

Security
• NVMe Secure Erase support
• OPAL 2.0 Support
• 256-bit AES Compliant Data Encryption

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1015 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 4.75W (Active), 0.3W (Idle)
• M.2: 22.0 mm x 42.0 mm
• Weight: 0.017lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.

Warranty

3 Year Limited Warranty
