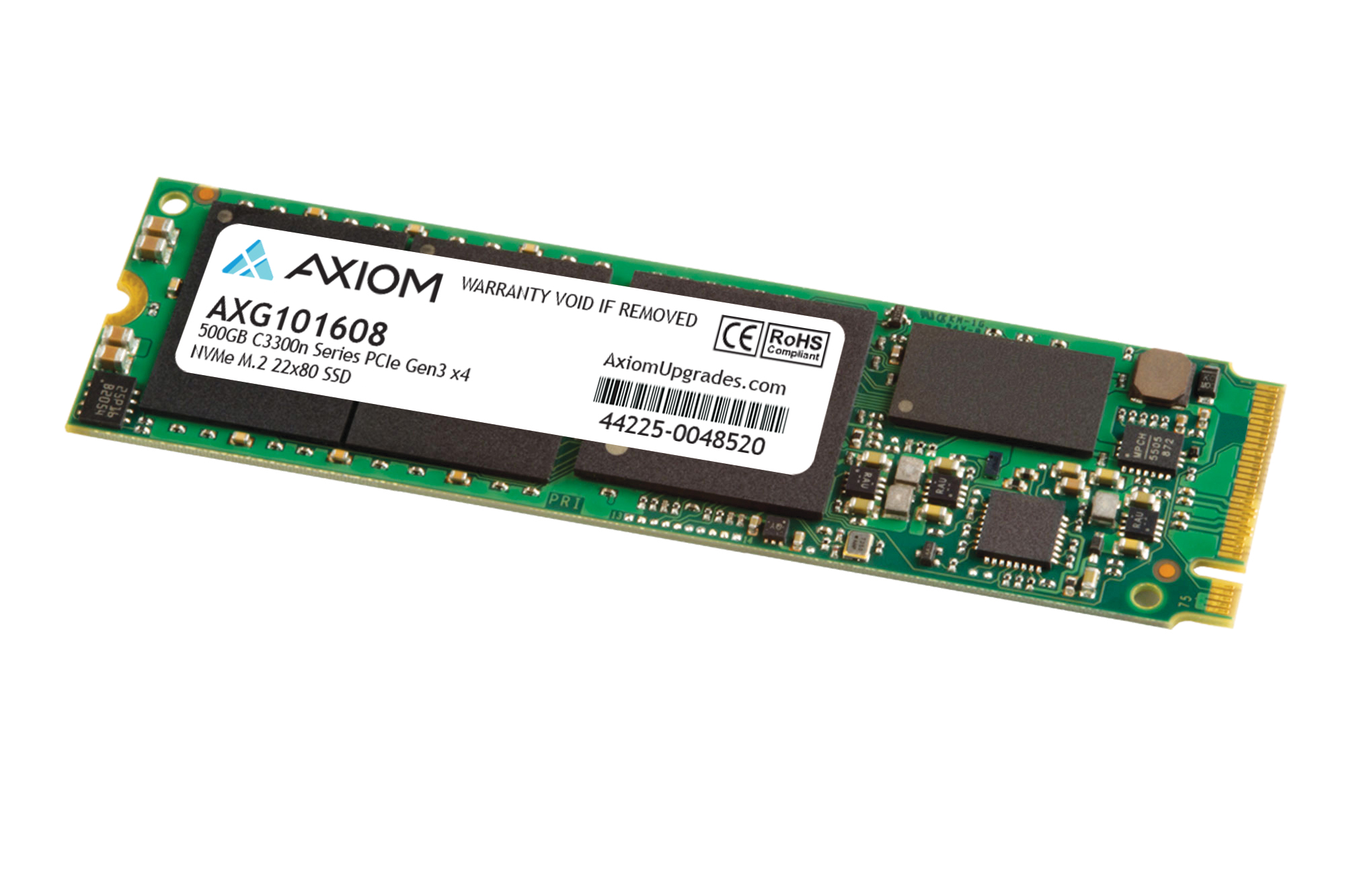

500GB C3300n Series PCIe Gen3 x4 NVMe M.2 22x80 SSD - 3D NAND - TAA Compliant

Part Number: AXG101608

Category: C3300n PCIe 3.0 NVMe M.2 SSD

Description: 500GB C3300n Series PCIe Gen3 x4 NVMe M.2 22x80 SSD - 3D NAND - TAA Compliant

Features

The Axiom C3300n NVMe M.2 combines performance and reliability with low power operation to make the ideal mobile drive. Engineered for intensive workloads, the Axiom C3300n M.2 2280 PCIe Gen3 x4 NVMe SSD offers next-level performance with speeds up to 3300MB/s read and 2900MB/s write. It's supported by the PCIe Gen3 x4 NVMe 1.4 technology and built with the latest 3D NAND flash.

Key Features & Benefits
• Built-in LDPC ECC provides the most powerful data correction on todays market
• End-to-end data path protection
• Global wear-leveling evens the program/erase counts across data blocks to extend lifespan
• NVMe Security Erase support
• High-reliability 3D NAND flash
• NVMe protocol 1.4 compliant

Specifications Warranty

Specifications

Capacity
• 500GB

Features
• Innogrit IG5216 controller
• SLC caching accelerates burst performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate support
• Host Memory Buffer (HMB) support (OS dependent)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe revision 3.1 compliant
• NVMe protocol 1.3 compliant
• PCIe Gen3 x4
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D NAND

Performance
• Sequential Read: Up to 3300MB/s
• Sequential Write: Up to 2200MB/s
• Random Read: Up to 195K IOPS (4K block size)
• Random Write: Up to 289K IOPS (4K block size)

Endurance
• TBW: Up to 250TB
• DWPD: 0.46 (3y)

Security
• NVMe Security Erase support

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: <1 sector per 1015 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 4.75W (Active), 0.3W (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

RoHS Compliant
TAA Compliant

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.

Warranty

3 Year Limited Warranty
