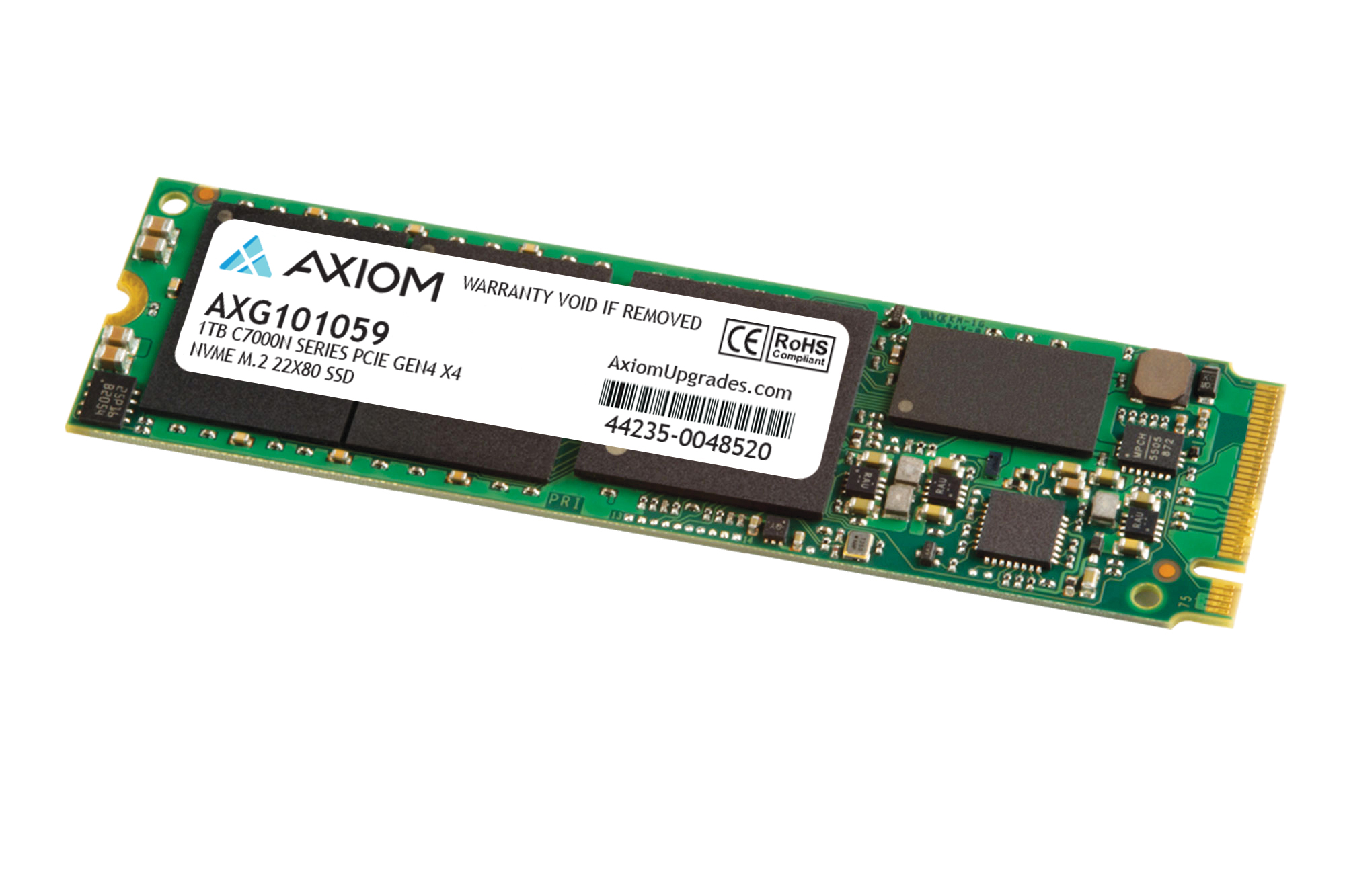

1TB C7000n Series PCIe Gen4 x4 NVMe M.2 22x80 SSD - 3D NAND - TAA Compliant

Part Number: AXG101059

Category: C7000n PCIe 4.0 NVMe M.2 SSD

Description: 1TB C7000n Series PCIe Gen4 x4 NVMe M.2 22x80 SSD - 3D NAND - TAA Compliant

Features

The Axiom High Speed C7000n Series is our fastest drive to date. It utilizes the new PCIe 4.0 controller and has the capability to deliver blazing speeds up to 7,415 MB/s for sequential read, and up to 6,800 MB/s sequential write, that's 7GB/s!! The C7000n SSDs is up to 2 times faster in read performance than previous PCIe 3.0 SSDs. The C7000n takes your system the highest level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available up to 4TB capacities.

Key Features & Benefits
• Latest Generation 3D NAND Flash : Higher capacity, durability, and power efficiency
• NVMe protocol 1.4 compliant
• PCIe Gen4 x4 lane interface
• Innogrit IG5236 controller
• Dynamic SLC caching accelerates burst performance
• S.M.A.R.T. support

Specifications

Capacity
• 1TB

Features
• Innogrit IG5236 controller
• SLC caching accelerates burst performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate support
• Host Memory Buffer (HMB) support (OS dependent)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe revision 3.1 compliant
• NVMe protocol 1.4 compliant
• PCIe Gen4 x4
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D NAND
• DDR4 DRAM

Performance
• Sequential Read: Up to 7430MB/s
• Sequential Write: Up to 5935MB/s
• Random Read: Up to 390K IOPS (4K block size)
• Random Write: Up to 1.0M IOPS (4K block size)
• Access Time (ms): <0.1

Endurance
• TBW: Up to 500TB
• DWPD: 0.46 (3y)

Security
• NVMe Secure Erase support

Reliability
• MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1015 bits read

Electrical/Mechanical
• +3.3VDC (±5%) power supply
• Power Consumption: up to 9.1W (Active), 3mW (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb

Environmental
• Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G

Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.

Warranty

3 Year Limited Warranty
