81Y9790-AX
Category: 3.5" SATA 6Gb/s Enterprise Hot-Swap Drive 7200rpm

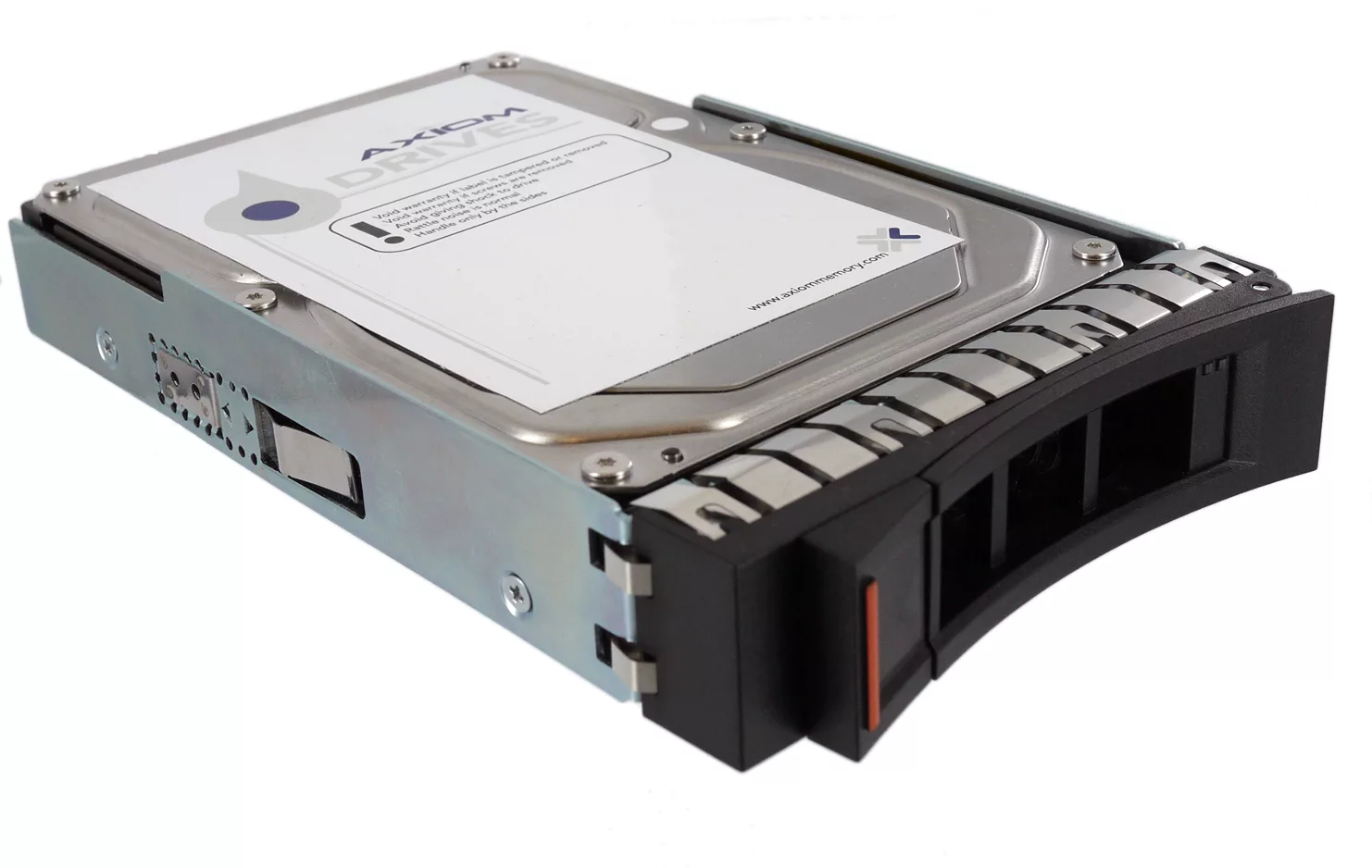

Description: Axiom 1TB 6Gb/s SATA 7.2K RPM LFF Hot-Swap HDD for Lenovo - 81Y9790
Comparable to OEM #: 81Y9790, 81Y9791, 81Y9792
Capacity: 1TB

Features

Axiom's Enterprise Class hard drives are leading the industry with a range of high capacity enterprise drive options. These drives feature enterprise class reliability with the power and performance efficiency that make them ideal for capacity optimized, 24x7 multi-drive server and storage environments.

* Delivers proven reliability, with a higher MTBF than standard grade drives
* Larger drive cache allows much faster access to data on the platters within the hard drive
* Reduces design and support costs by building a solid enterprise storage foundation
* Offers traditional form factors with enhanced rotational vibration tolerance and high data integrity for enterprise class reliability in a cost effective drive
* Fully tested for drive speed and quality
* Meets or exceeds original manufacturer's specifications
* Free unlimited tech support

Note: AXIOM LEGACY HARD DRIVE PRODUCTS MAY CONTAIN RE-CERTIFIED AND/OR RECONDITIONED COMPONENTS. This may include 146GB and smaller LFF & SFF SAS drives. All other drives are guaranteed new! – Please contact your Axiom Sales Associate for Details!
*Specifications*
Part Number: 81Y9790-AX
Capacity: 1TB
Interface: 6Gb/s SATA

*Reliability/Data Integrity*
Vibration, Nonoperating: 10Hz to 500Hz (Grms): 5
MTBF: 2,000,000hr
Reliability Rating @ Full 24×7 Operation (AFR): 0.44%
Nonrecoverable Read Errors per Bits Read, Max: 1 sector per 10E15
Power-On Hours: 8760
Bytes per Sector: 512

*Performance*
Spindle Speed (RPM): 7200
Interface Access Speed (Gb/s): 6.0, 3.0, 1.5
Max Sustainable Transfer Rate: 215MB/s
Average Latency (ms): 4.16
Interface Ports: Single
Rotational Vibration @ 1500Hz (rad/s²): 12.5

*Power Consumption*
Idle Average (W): 4.25W
Average Operating Power: 5.91W
Power Supply Requirements: +12 V and +5 V

*Environmental/Temperature*
Temperature, Operating (°C): 5°C – 60°C
Shock, Operating Read/Write (Gs): 70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs): 150/300

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes.Total accessible capacity varies depending on operating environment.
Specs based on Seagate P/N: ST1000NM0055 and are subject to change without notification.
Warranty
5 Year Limited Warranty
