765455-B21-AX
Category: 2.5" SATA 6Gb/s Enterprise Hot-Swap Drive 7200rpm

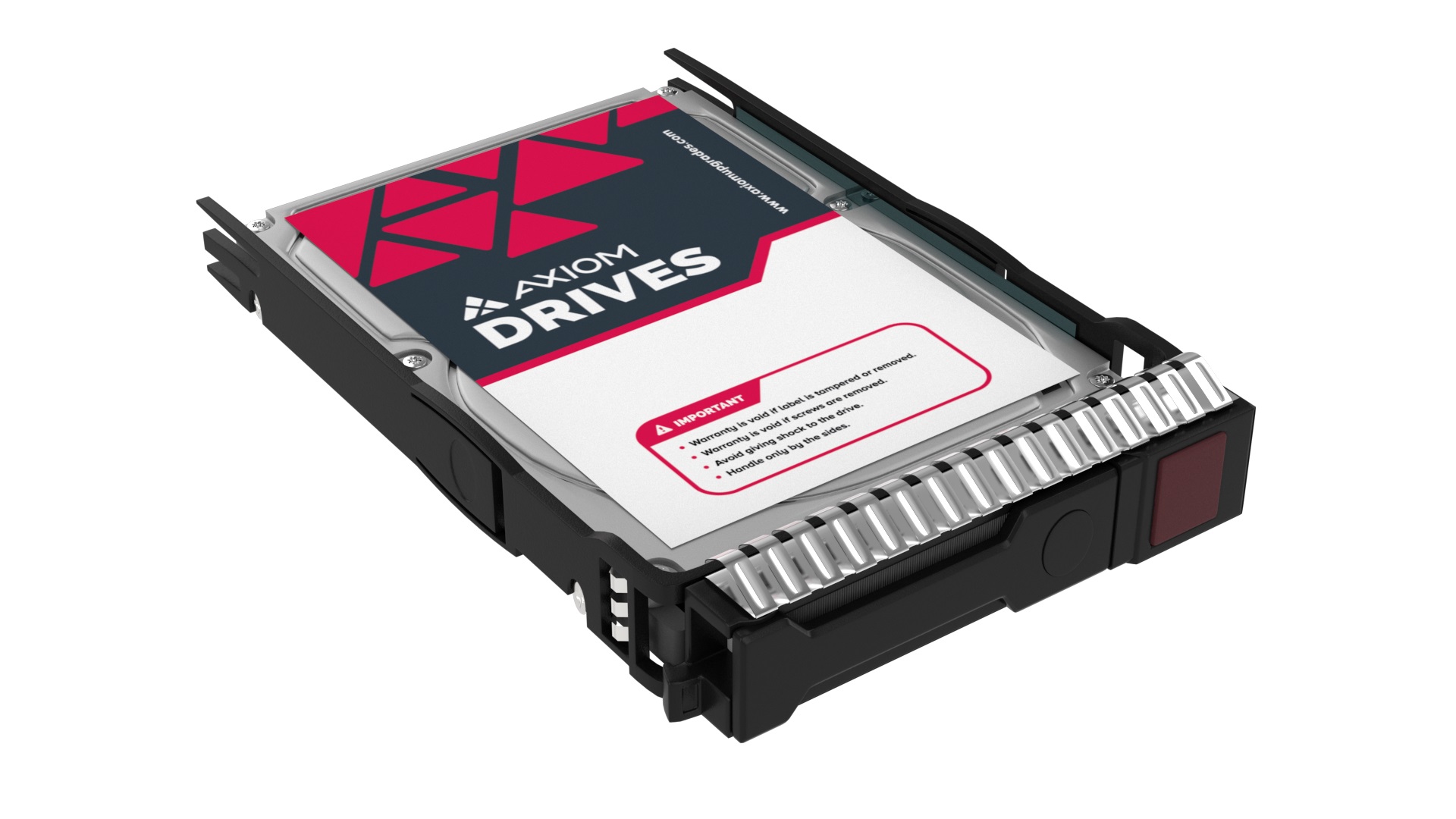

Description: Axiom 2TB 6Gb/s SATA 7.2K RPM SFF 512e Hot-Swap HDD for HP - 765455-B21
Comparable to OEM #: 765455-B21
Capacity: 2TB

Features

Axiom's Enterprise Class hard drives are leading the industry with a range of high capacity enterprise drive options. These drives feature enterprise class reliability with the power and performance efficiency that make them ideal for capacity optimized, 24x7 multi-drive server and storage environments.

* Delivers proven reliability, with a higher MTBF than standard grade drives
* Larger drive cache allows much faster access to data on the platters within the hard drive
* Reduces design and support costs by building a solid enterprise storage foundation
* Offers traditional form factors with enhanced rotational vibration tolerance and high data integrity for enterprise class reliability in a cost effective drive
* Fully tested for drive speed and quality
* Meets or exceeds original manufacturer's specifications
* Free unlimited tech support

Note: AXIOM LEGACY HARD DRIVE PRODUCTS MAY CONTAIN RE-CERTIFIED AND/OR RECONDITIONED COMPONENTS. This may include 146GB and smaller LFF & SFF SAS drives. All other drives are guaranteed new! – Please contact your Axiom Sales Associate for Details!
*Specifications*
Part Number: 765455-B21-AX
Capacity: 2TB
Interface: 6Gb/s SATA

*Reliability/Data Integrity*
Mean Time Between Failures (MTBF, hours): 2 million
Reliability Rating @ Full 24x7 Operation (AFR): 0.44%
Nonrecoverable Read Errors per Bits Read: 1 sector per 10E15
Power-On Hours per Year: 8760
Bytes per Sector: 512e

*Performance*
Spindle Speed (RPM): 7200
Cache, Multisegmented (MB): 128
Interface Access Speed (Gb/s): 6.0, 3.0, 1.5
Max. Sustained Transfer Rate (MB/s): 136
Average Latency (ms): 4.16
Interface Ports: Single
RV Tolerance (rad/s to 1800Hz): 16

*Power Management*
Idle Power (W): 3.87
Typical Operating, Random Read (W): 5.22
PowerChoice™ Technology (Standby) (W): 1.14
Power Supply Requirements: +12V and +5V

*Environmental*
Temperature, Operating (°C): 5 to 55
Vibration, Operating, <400Hz (Gs): 0.5
Vibration, Nonoperating, <500Hz (Gs): 3.0
Shock, Operating, 2ms (Gs): 25
Shock, Nonoperating, 1ms and 2ms (Gs): 400
Acoustics, Typical Idle (bels): 2.8
Acoustics, Typical Seek (bels): 3.2

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes.Total accessible capacity varies depending on operating environment.
Specs based on Seagate P/N: ST2000NX0253 and are subject to change without notification.
Compatible Systems
HP-Compaq - ProLiant BL460c Gen10 (G10)
HP-Compaq - ProLiant BL460c Gen8 (G8)
HP-Compaq - ProLiant BL460c Gen9 (G9)
HP-Compaq - ProLiant BL465c Gen8 (G8)
HP-Compaq - ProLiant BL660c Gen8 (G8)
HP-Compaq - ProLiant BL660c Gen9 (G9)
HP-Compaq - ProLiant DL120 Gen9 (G9)
HP-Compaq - ProLiant DL160 Gen8 (G8)
HP-Compaq - ProLiant DL160 Gen9 (G9)
HP-Compaq - ProLiant DL180 Gen9 (G9)
HP-Compaq - ProLiant DL20 Gen10 (G10)
HP-Compaq - ProLiant DL20 Gen9 (G9)
HP-Compaq - ProLiant DL320e Gen8 (G8)
HP-Compaq - ProLiant DL360 Gen10 (G10)
HP-Compaq - ProLiant DL360 Gen9 (G9)
HP-Compaq - ProLiant DL360e Gen8 (G8)
HP-Compaq - ProLiant DL360p Gen8 (G8)
HP-Compaq - ProLiant DL380 Gen10 (G10)
HP-Compaq - ProLiant DL380 Gen9 (G9)
HP-Compaq - ProLiant DL380e Gen8 (G8)
HP-Compaq - ProLiant DL380p Gen8 (G8)
HP-Compaq - ProLiant DL385 Gen10 (G10)
HP-Compaq - ProLiant DL385p Gen8 (G8)
HP-Compaq - ProLiant DL560 Gen8 (G8)
HP-Compaq - ProLiant DL560 Gen9 (G9)
HP-Compaq - ProLiant DL580 Gen8 (G8)
HP-Compaq - ProLiant DL580 Gen9 (G9)
HP-Compaq - ProLiant ML110 Gen10 (G10)
HP-Compaq - ProLiant ML110 Gen9 (G9)
HP-Compaq - ProLiant ML150 Gen9 (G9)
HP-Compaq - ProLiant ML30 Gen10 (G10)
HP-Compaq - ProLiant ML30 Gen9 (G9)
HP-Compaq - ProLiant ML310e Gen8 (G8)
HP-Compaq - ProLiant ML310e Gen8 v2 (G8)
HP-Compaq - ProLiant ML350 Gen10 (G10)
HP-Compaq - ProLiant ML350 Gen9 (G9)
HP-Compaq - ProLiant ML350e Gen8 (G8)
HP-Compaq - ProLiant ML350p Gen8 (G8)
HP-Compaq - ProLiant SL230s Gen8 (G8)
HP-Compaq - ProLiant SL270s Gen8 (G8)
HP-Compaq - ProLiant WS460c Gen8 (G8)
HP-Compaq - ProLiant WS460c Gen9 (G9)
HP-Compaq - ProLiant XL230a Gen9 (G9)
HP-Compaq - Synergy 480 Gen10 (G10) Compute Module
Show All
Warranty
5 Year Limited Warranty
